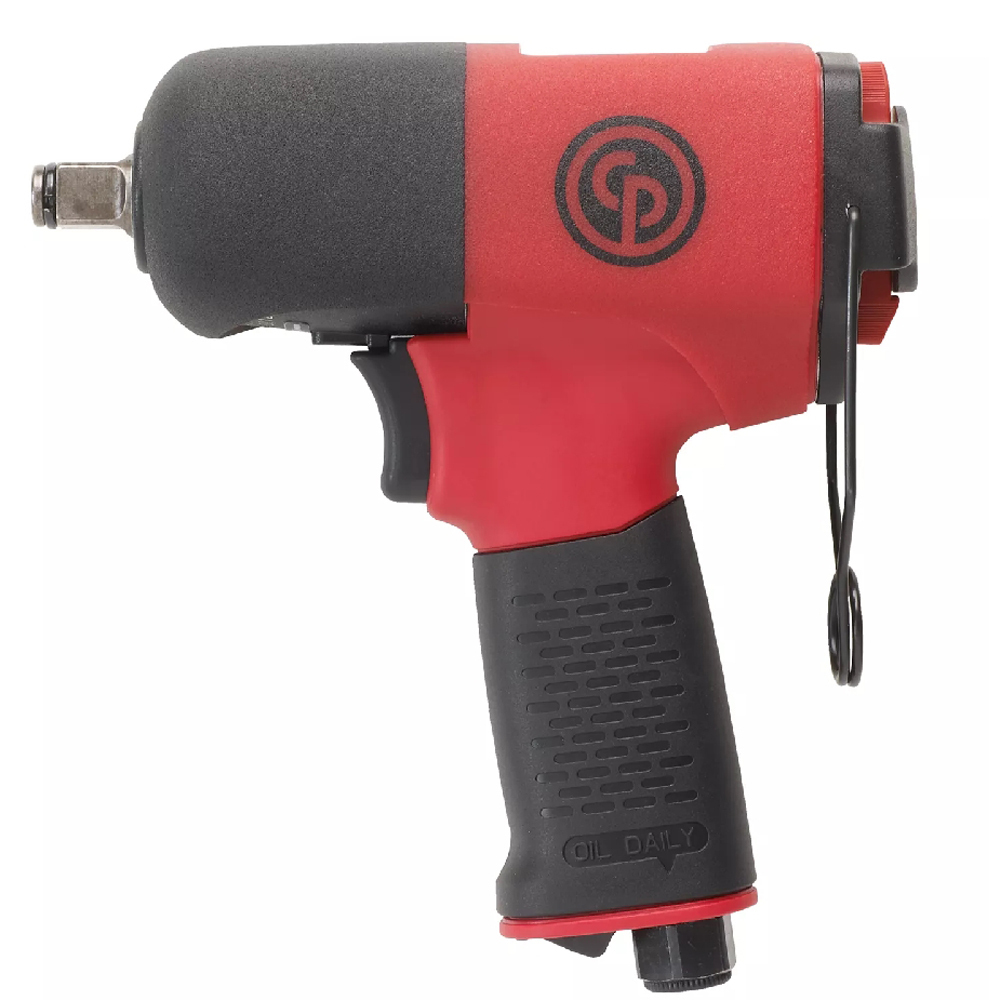

Chicago Pneumatic CP8242-R 1/2" Impact Wrench Mini Pistol 550Nm Friction Ring

Durable and reliable impact for industrial maintenance and production applications.

Features:

• 1/2" compact impact with ring retainer
• Powerful & durable twin hammer clutch
• Composite body and aluminum clutch housing
• 3 power settings in forward & full power in reverse
• Protective cover & suspension bail
• Progressive trigger & Rubber grip

Specifications:

• Model: CP8242-R
• Part Number: 6151590240
• Actual Air Consumption: 10 l/s / 21.2 cfm
• Air Inlet Thread Size: 1/4 "
• Blows Per Minute: 1250
• Box Dimensions: 70 x 235 x 200 mm / 2.8 x 9.3 x 7.9 "
• Clutch Type: Twin hammer
• European Standards: EN ISO 11148-6:2013
• Free Speed: 11500 rpm
• Handle Type: Pistol
• Length: 177 mm / 7 "
• Maximum Torque (Reverse): 550 Nm / 406 ft.lbs
• Min. Hose Size: 10 mm / 3/8 "
• Net Weight: 1.2 kg / 2.6 lb
• Over Carton: 360 x 245 x 410 mm / 14.2 x 9.6 x 16.2 "
• Power/Weight Ratio: 458.3 Nm/kg / 156.2 ft.lb/lb
• Side to Center: 30 mm / 1.18 "
• Socket Retainer: Friction ring
• Sound Power: 100 dB(A)
• Sound Pressure: 89 dB(A)
• Square Drive: 1/2 "
• VST2: 17.9
• Vibration: 6.6 m/s²
• Vibration ISO: ISO-28927-2
• Vibration Uncertainty (K): 3.2 m/s²
• Working Torque Range (Fwd): 80 - 400 Nm / 59 - 295 ft.lbs
