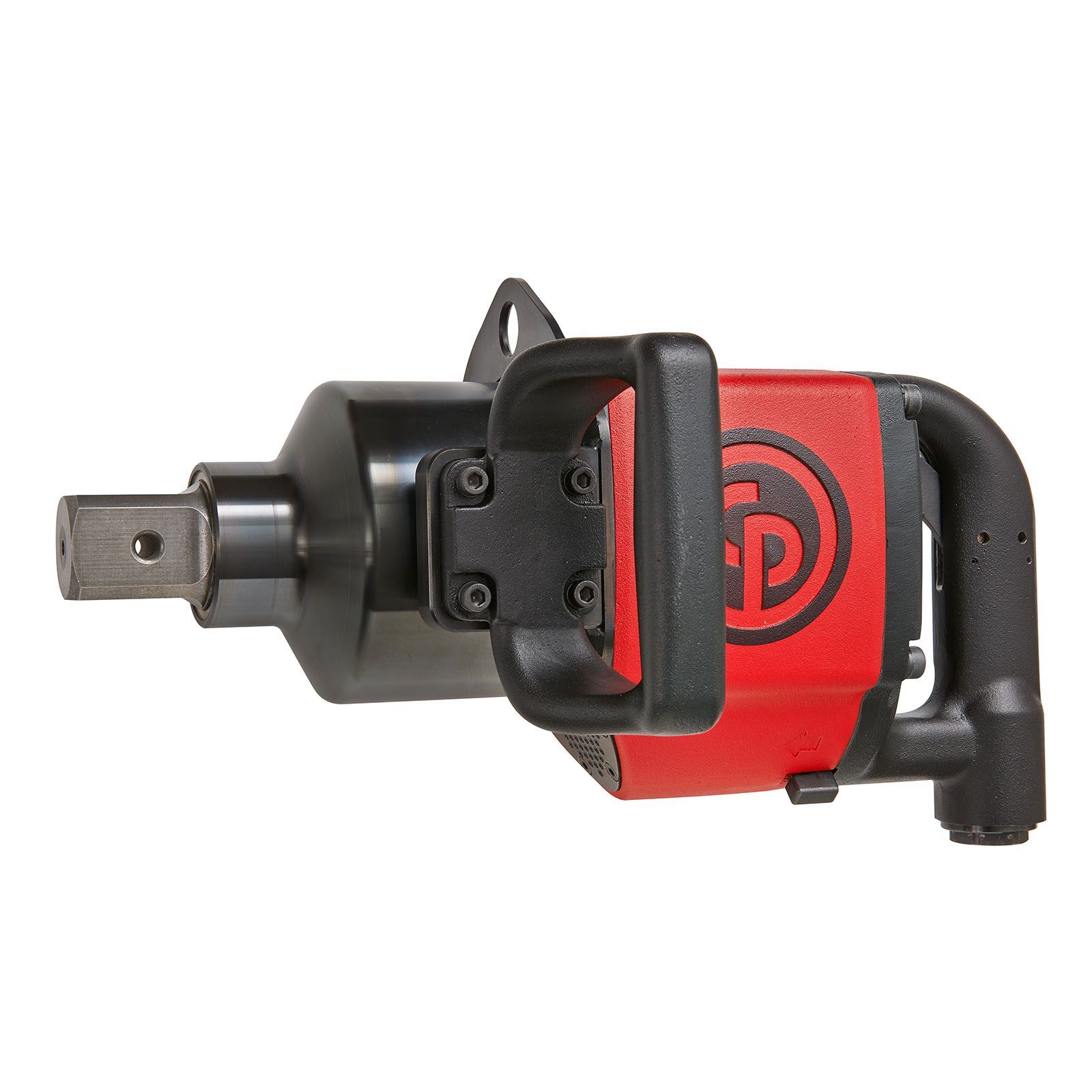

Chicago Pneumatic CP6135-D80 1-1/2" Impact Wrench


Features

  • Durable Pinless Rocking Dog clutch
  • Robust aluminum body & Steel clutch housing
  • Reversible and teasing steel trigger


Benefits

  • Monster Power for the light weight and compact size
  • Premium quality for the most demanding applications
  • Smooth operation thanks to the teasing trigger


Specifications

Part number 6151590380
Actual air consumption 40 l/s 84.5 cfm
Air inlet thread size 1/2 "
Blows per minute 750
Bolt size M48 mm 1-7/8"
Box dimensions 220 x 460 x 280 mm 8,7 x 18,1 x 11,0 "
Clutch type Pinless Rocking Dog
European Standards EN ISO 11148-6:2013
Free speed 2800 rpm
Handle type D-Handle Inside Trigger
Length 408 mm 16 "
Maximum Torque (reverse) 8000 Nm 5900 ft.lbs
Minimum hose size 19 mm 5/8 "
Net weight 16 kg 35.3 lb
Power/weight ratio 500 Nm/kg 167.1 ft.lb/lb
Side to center 67.5 mm 2.65 "
Socket retainer Hole
Sound Power 109 db(A)
Sound pressure 98 db(A)
Square drive 1 1/2 "
Vibration 13.6 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 2.2 m/s²
Working Torque Range (fwd) 1,000 - 5,500 Nm 740 - 4,055 ft.lbs



(CP6135-D80)

Barcode # 15451712068
Brand Chicago Pneumatic
Shipping Cubic 0.004080000m3
