CP7268 Heavy Duty Dual Piston Straight Line Sander, 70 x 455mm Pad
Model : #CP7268
Share This Item:

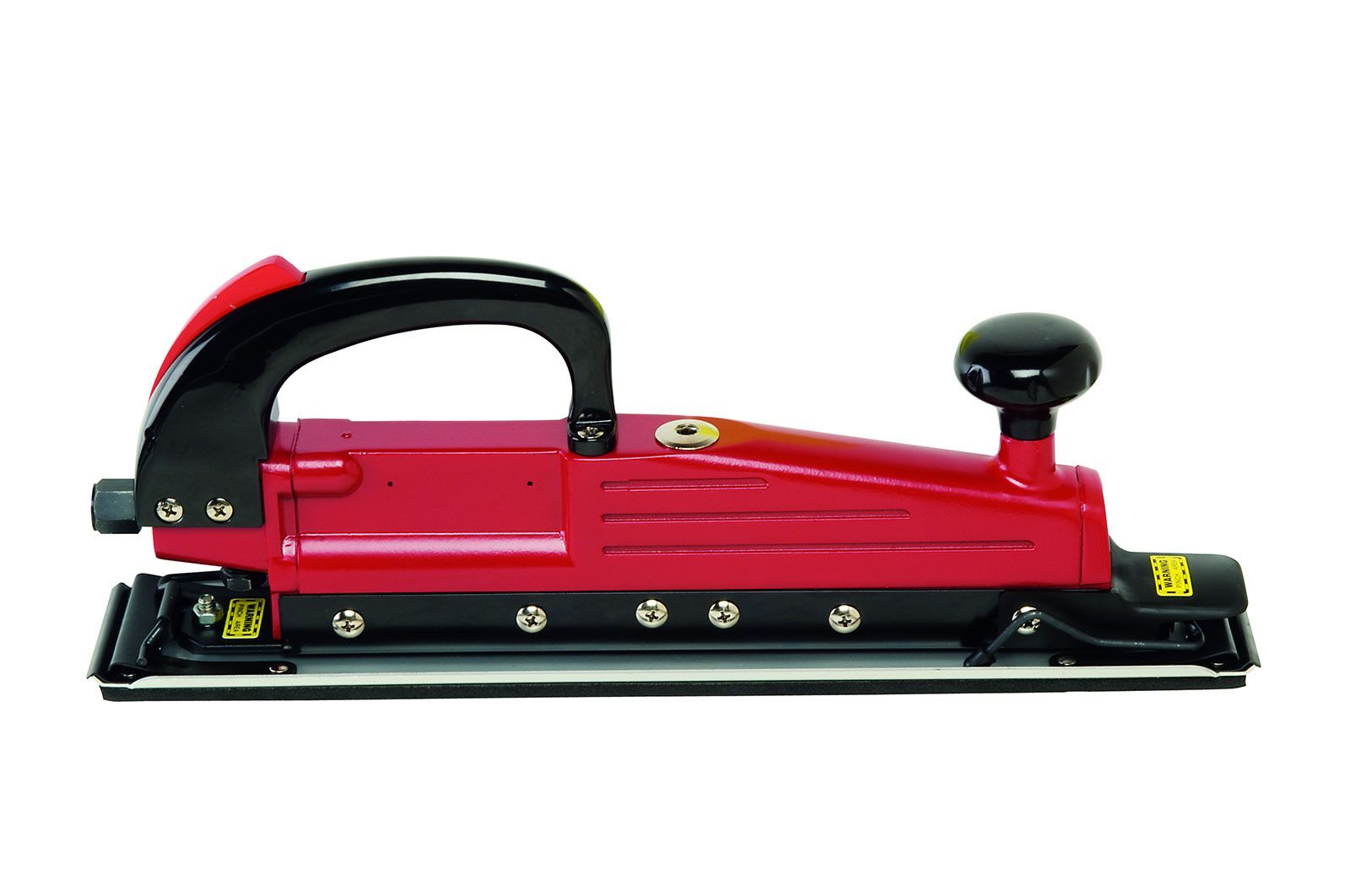

Chicago Pneumatic CP7268 Heavy Duty Dual Piston Straight Line Sander
Operator comfort and safe operation. Ideal Tool for fast material removal, body smoothing, and for large surfaces.
Features
- Heavy-duty dual piston straight line sander
- Twin piston rugged design
- Easy comfort trigger and handle
- 1" (25mm) stroke
Specifications
Part number | 8941072680 | |
European Directives | 2006/42/EC (17/05/2006) | |
Length | 420 mm | 16.5" |
Net weight | 2.75 kg | 6.06 lb |
Average air consumption | 4 l/s | 8.5 cfm |
Average air consumption | 240 l/mn | 8.5 cfm |
Actual air consumption | 5.1 l/s | 10.7 cfm |
Actual air consumption | 303 l/mn | 10.7 cfm |
Free speed air consumption | 6.6 l/s | 14 cfm |
Air inlet thread size | 1/4 | |
Min. hose size | 10 mm | 3/8" |
Sound pressure | 93 db(A) | |
Sound Power | 104 db(A) | |
Vibration ISO | ISO-28927-3 | |
Vibration | 22.03 m/s² | |
Vibration uncertainty (K) | 13.51 m/s² | |
Pad diameter | 70 x 445 | 2.75 X 17.5 |
Paper size | 70 x 445 | 2.75 X 17.5 |
Free speed | 5000 rpm | |
Vacuum | No | |
Pad holes number | 0 | |
Height over spindle | 150 mm | 6" |
No-vacuum | No-vacuum |
(CP7268)
Barcode # | 15451624057 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.004200000m3 |
