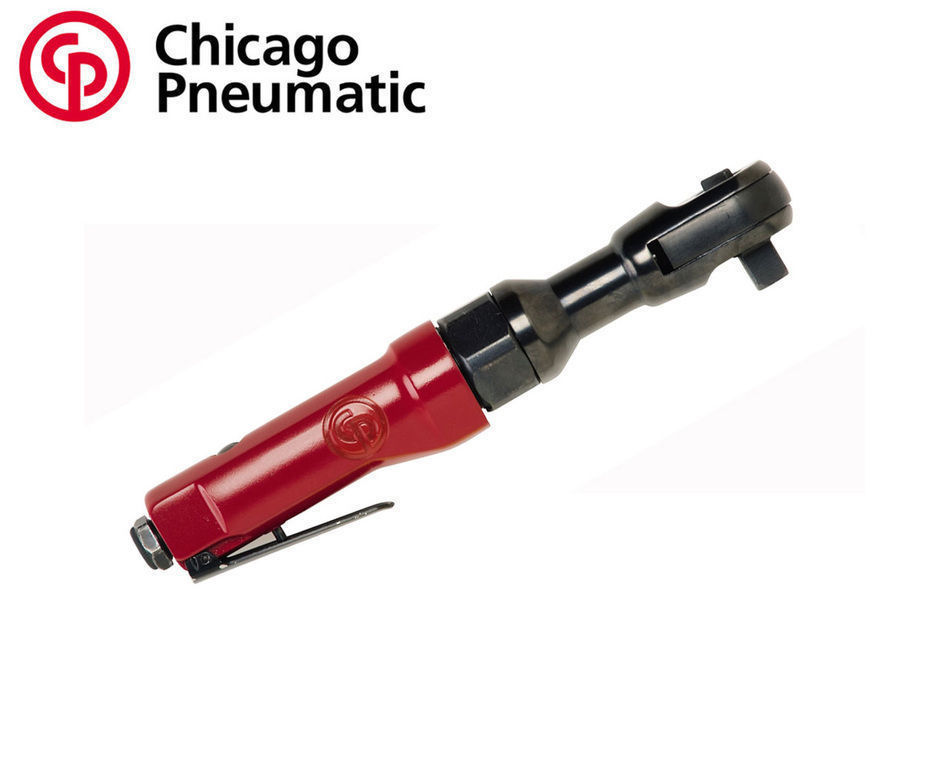

Chicago Pneumatic CP886H 1/2" Ratchet Wrench Heavy Duty 68Nm Compact Head Design
Model : #CP886H
Share This Item:
Chicago Pneumatic CP886H 1/2" Heavy Duty Ratchet
Features
- Good durability over other economically priced ratchets
- Easy grip reverse for simple directional changes
- 1/2" ratchet
- Compact head design
- Hardened gears
Specifications
Part number | T024391 | |
Square drive | 1/2" | |
Working torque Range | 13-68 Nm | 10-50 |
Max torque | 68 Nm | 50 ft.lbs |
Free speed | 160 rpm | |
Net weight | 1.19 kg | 2.63 lb |
Length | 260 mm | 10.25" |
Average air consumption | 120 l/mn | 4.25 cfm |
Average air consumption | 2.0 l/s | 4.25 cfm |
Actual air consumption | 481 l/mn | 17 cfm |
Actual air consumption | 8 l/s | 17 cfm |
Air inlet thread size | 0.25" | |
Min. hose size | 10 mm | 3/8" |
Sound DBA pressure | 110 db(A) | |
Noise level | 99 db(A) | |
Vibration (ISO-8662-7) | 9,6 m/s² | |
Vibration α (ISO-28927-2) | 3.7 m/s² | |
Vibration K (ISO-28927-2) | 1.3 m/s² |
This item attracts a 1 year manufacturer's warranty.
(CP886H)
Barcode # | 15451410193 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002600000m3 |
Unit Of Measure | ea |
