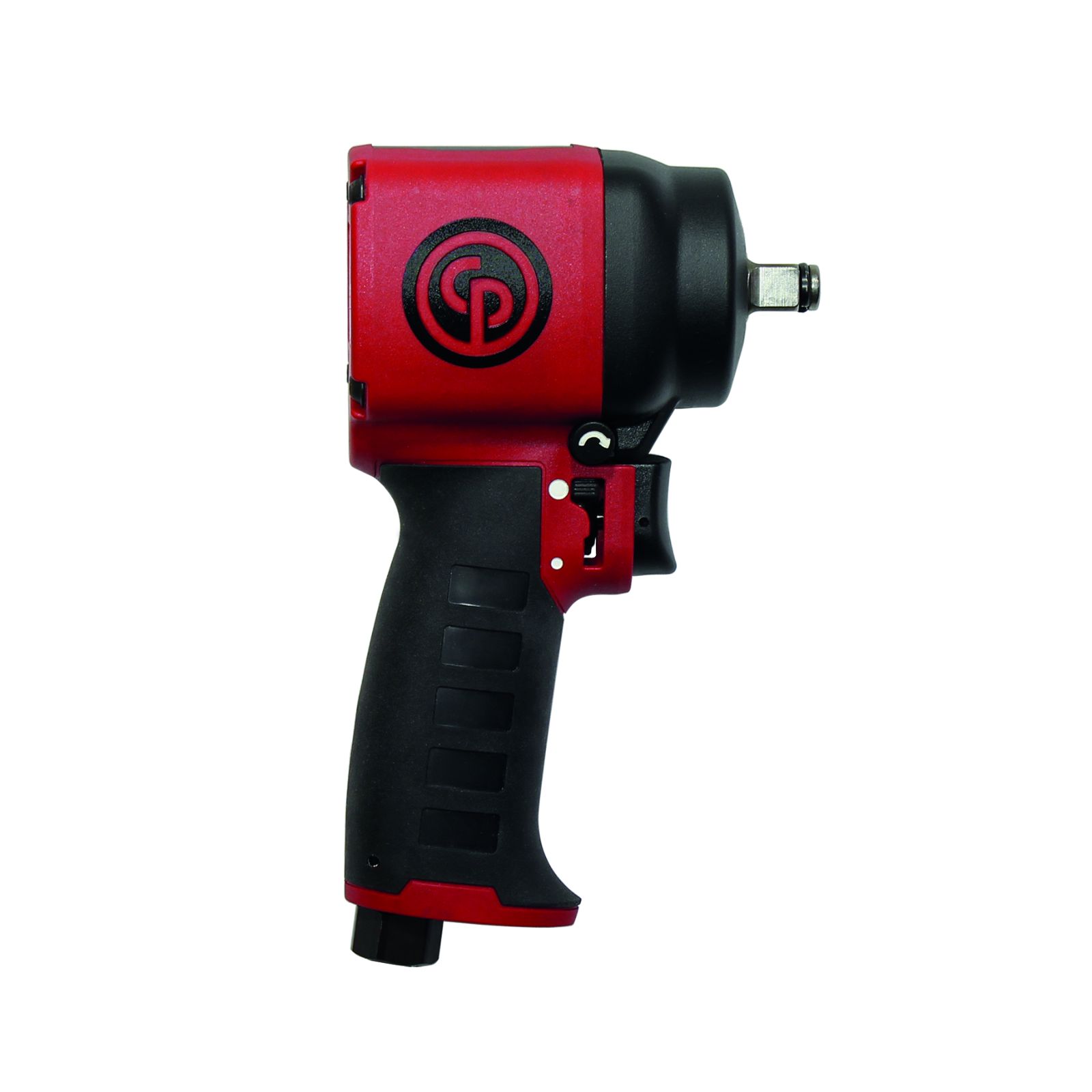

Chicago Pneumatic CP7731C 3/8" Impact Wrench Pistol Grip 470Nm Ultra Compact
Model : #CP7731C
Share This Item:
Chicago Pneumatic CP7731C 3/8" Impact Wrench Pistol Grip 470Nm Ultra Compact
Features:
- 2.1 lbs. – 1.0 Kg
- 346 ft.lbs - 470 Nm of maximum torque in reverse
- 4 1/4 in – 107 mm length
- Jumbo hammer mechanism
- Steel motor
- Aluminum clutch housing
- Composite housing with curved handle with Thermo-Plastic Rubber injected
- S2S: 1 hand Forward – Reverse operation
- New power setting system: 1 hand-operation behind the trigger
- 2 positions in reverse: max and lower torque
- 2 positions in forward: max and low torque
- Socket retainer ring
- Full teasing trigger
Specifications:
- Part Number: 8941077311
- Length: 110 mm / 4.2"
- Net Weight: 1 kg / 1.0 lb
- Average Air Consumption: 2 l/s / 4.3 cfm
- Actual Air Consumption: 7.9 l/s / 17 cfm
- Air Inlet Thread Size: 1/4 "
- Minimum Hose Size: 10 mm / 3/8"
- Sound Pressure: 96 dB(A)
- Sound Power: 107 dB(A)
- Vibration ISO: ISO-28927-2
- Vibration: 10.33 m/s²
- Vibration Uncertainty: 1.38 m/s²
- Handle Type: Pistol
- Square Drive: 3/8"
- Working Torque Range (fwd): 83 - 392 Nm / 61 - 289 ft.lbs
- Maximum Torque (reverse): 469 Nm / 470 ft.lbs
- Free Speed: 9000 rpm
- Blows per Minute: 1400
- Power/Weight Ratio: 469 Nm/kg / 346 ft.lb/lb
- Socket Retainer: Friction ring
- Clutch Type: Single Dog Clutch
(CP7731C)
Barcode # | 15451761837 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.001100000m3 |
