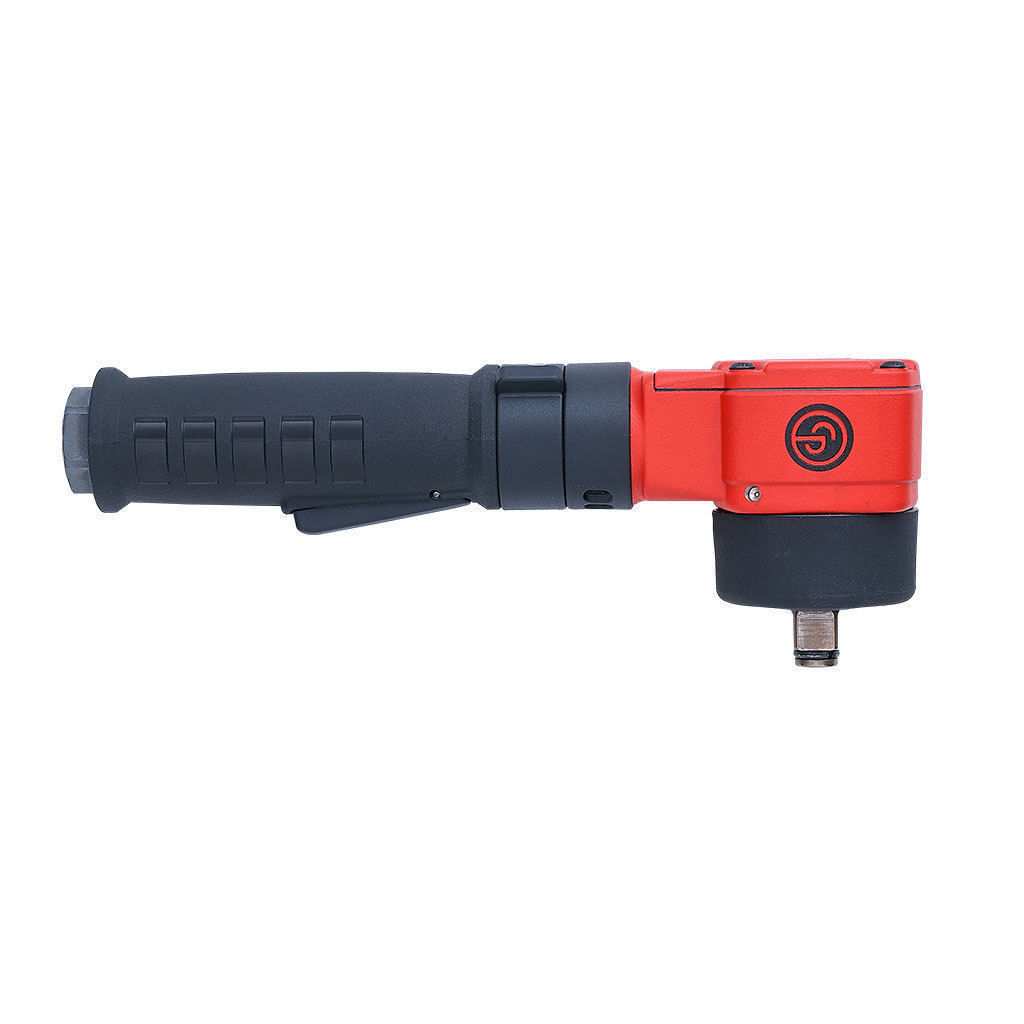

Chicago Pneumatic CP7737 1/2" Impact Wrench Angle 300Nm Ultra Compact
Model : #CP7737
Share This Item:
Chicago Pneumatic CP7737 Pistol Grip Ultra Compact Impact Wrench
Features
- Jumbo hammer mechanism
- Steel motor
- Composite cover
- Direct drive transmission mechanism
- 9.8 in -240 mm length & 3.46 in. (88 mm) height
- 220 ft.lbs - 300 Nm of maximum torque in reverse (for 1/2’’ model)
- 2.46 lbs. – 1.12 Kg
- Over molded composite and ergonomic handle to fit perfectly in hand
- Full teasing trigger
- Single handed Forward – Reverse operation
- 3 positions in forward and 1 in reverse
- Socket retainer ring
Benefits
- Single handed Forward – Reverse operation
- 3 positions in forward and 1 in reverse
Specifications
Part number | 8941077370 | |
Handle type | Pistol | |
Square drive | 1/2" | |
Working Torque Range (fwd) | 34-224 Nm | 25-165 |
Maximum Torque (reverse) | 300 Nm | 220 ft.lbs |
Free speed | 9000 rpm | |
Blows per minute | 1600 | |
Net weight | 1.13 kg | 2 1/2 lb |
Length | 240 mm | 9.4" |
Side to center | 30 mm | 1.18" |
Average air consumption | 1.9 l/s | 4 cfm |
Actual air consumption | 7.5 l/s | 16 cfm |
Free speed air consumption | 11.73 l/s | |
Air inlet thread size | 0.25 " | |
Min. hose size | 10 mm | 3/8" |
Noise level | 93 db(A) | |
Sound Power | 104 db(A) | |
Vibration α (ISO-28927-2) | 10.3 m/s² | |
Vibration K (ISO-28927-2) | 1.3 m/s² | |
Socket retainer | Friction ring | |
Clutch type | Jumbo | |
Box dimensions | 292*100*67 |
This item attracts 1 Year Manufacturer's Warranty.
(CP7737)
Barcode # | 15451761158 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002400000m3 |
Unit Of Measure | ea |
