Chicago Pneumatic CP7739 1/2" Impact Wrench Pistol Grip 610Nm S2S Technology
Model : #CP7739
Share This Item:

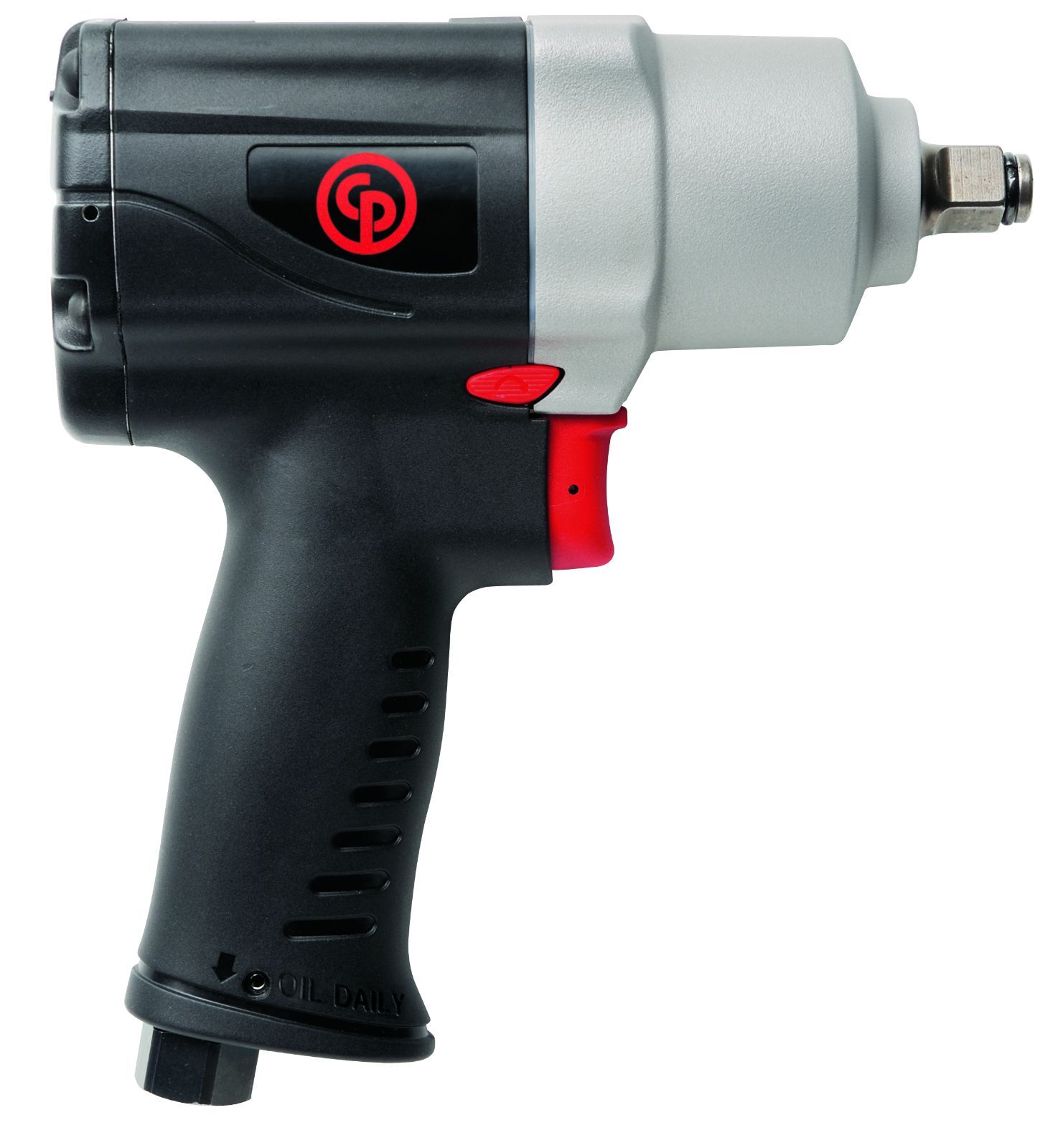

Chicago Pneumatic CP7739 Pistol Grip Impact Wrench
Features
- Mini 1/2" compact impact wrench for general maintenance
- Twin hammer clutch
- Composite handle and magnesium clutch housing
- S2S technology and 3 positive power settings
- Full teasing trigger
Specifications
Part number | 8941077390 | |
Length | 163 mm | 6.4" |
Net weight | 1.2 kg | 2.78 lb |
Side to centre | 26 mm | 1" |
Average air consumption | 2.4 l/s | 5 cfm |
Actual air consumption | 9.4 l/s | 20 cfm |
Air inlet thread size | 1/4" | |
Min. hose size | 10 mm | 3/8" |
Sound pressure | 92 db(A) | |
Sound Power | 103 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 6.9 m/s² | |
Vibration uncertainty (K) | 2.5 m/s² | |
Handle type | Pistol | |
Square drive | Square drive | |
Working Torque Range (fwd) | 68 - 414 Nm | 50 - 305 |
Maximum Torque (reverse) | 610 Nm | 450 ft.lbs |
Free speed | 9900 rpm | |
Blows per minute | 1700 | |
Power/weight ratio | 508.3 Nm/kg | 161.9 ft.lb/lb |
Socket retainer | Friction ring | |
Clutch type | Twin hammer |
(CP7739)
Barcode # | 15451591304 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.001630000m3 |
