CP7769-6 3/4" Impact Wrench Pistol Grip with 6" Extended Anvil 1950Nm
Model : #CP7769-6
Share This Item:

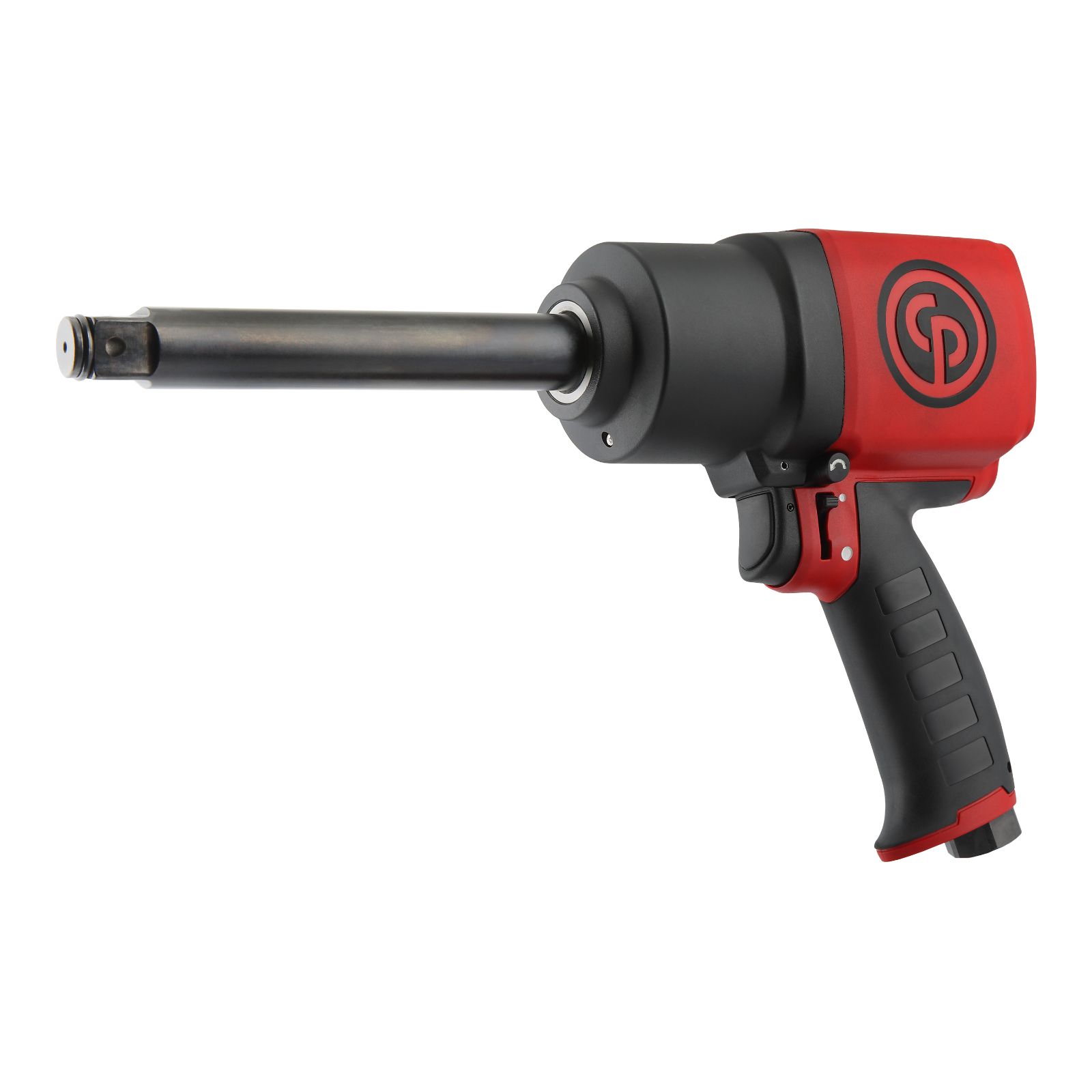

Chicago Pneumatic CP7769-6 Pistol Grip Impact Wrench
Features
- Length = 13.8 in. / 350 mm
- All controls within reach
- Variable speed trigger
- One-hand power adjustment
- One-hand reverse system
- 1440 ft.lbs / 1950 Nm of maximum torque
- Composite motor housing
- Twin hammer mechanism
- 360° swivel air inlet
- Socket retainer ring combined with hole retainer
Specifications
Part number | 8941077697 | |
Length | 350 mm | 13.8" |
Net weight | 3.75 kg | 8.3 lb |
Height | 220 mm | 8.7" |
Width | 84 mm | 3.3" |
Series Alphacode | D | |
Average air consumption | 4.7 l/s | 9.8 cfm |
Actual air consumption | 18.6 l/s | 39.2 cfm |
Air inlet thread size | 3/8 " | |
Min. hose size | 13 mm | 1/2" |
Sound pressure | 96.8 db(A) | |
Sound Power | 107.8 db(A) | |
European Sound standard | ISO 15744 | |
Sound uncertainty | 3 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 12.97 m/s² | |
Vibration uncertainty (K) | 1.5 m/s² | |
Handle type | Pistol | |
Square drive | 3/4" | |
Working Torque Range (fwd) | 407 - 1464 Nm | 300 - 1080 |
Maximum Torque (reverse) | 1950 Nm | 1440 ft.lbs |
Free speed | 6500 rpm | |
Blows per minute | 1200 | |
Power/weight ratio | 520 Nm/kg | 173.49 ft.lb/lb |
Socket retainer | Dual (hole+friction) | |
Clutch type | Twin hammer | |
European Directives | 2006/42/EC (17/05/2006) | |
European Standards | EN ISO 11148-6:2012 |
(CP7769-6)
Brand | Chicago Pneumatic |
Shipping Cubic | 0.007700000m3 |
