CP7776-6 Pistol Grip Impact Wrench 1" With 6" Extended Anvil 2400Nm
Model : #CP7776-6
Share This Item:

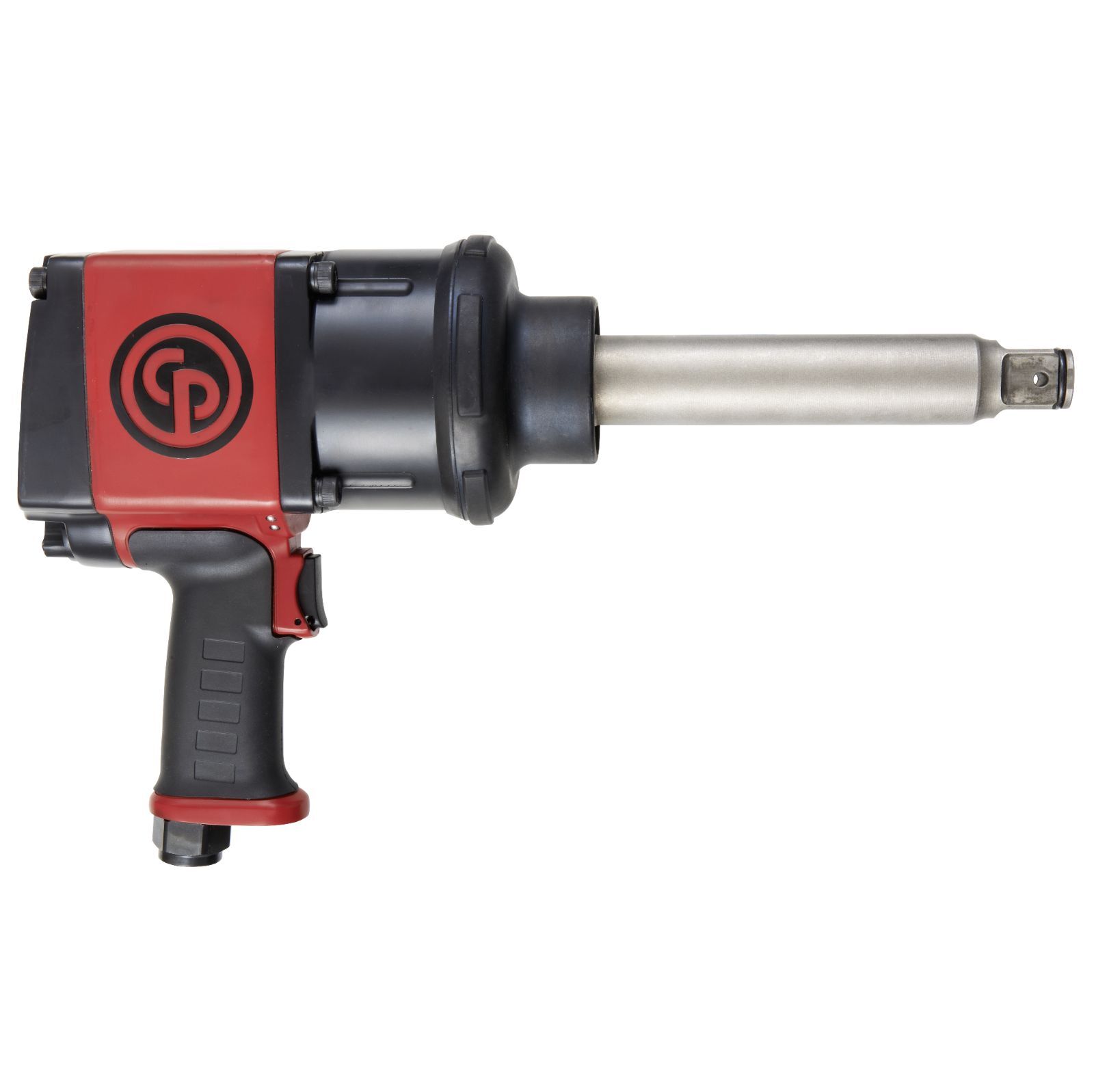

Chicago Pneumatic CP7776-6 Pistol Grip Impact Wrench
Features
- 2400 Nm – 1770 ft.lbs maximum torque in reverse
- Pinless closed reinforced rocking dog clutch mechanism
- TPR handle & side handle - being able to rotate in 4 positions
- Regulator integrated into forward/reverse knob with 3 positions power setting in both directions.
- Rubber bumper protecting both applications & tool (included)
- Socket retainer ring combined with hole retainer
- Handle being able to rotate in 4 positions for ultimate operator comfort
- Angled down exhaust blows air away from the workplace
Specifications
Part Number | 8941077766 | |
Length | 447 mm | 17.6" |
Net weight | 12.6 kg | 27.8 lb. |
Side to centre | 109 mm | 4.3" |
Average air consumption | 3.9 l/s | 8.2 cfm |
Actual air consumption | 15.6 l/s | 33 cfm |
Air inlet thread size | 1/2" | |
Minimum hose size | 13 mm | 1/2" |
Sound pressure | 93 db(A) | |
Sound power | 104 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 8.7 m/s² | |
Vibration uncertainty | 2.8 m/s² | |
Handle type | Pistol | |
Square drive | 1" | |
Working torque | 955 - 2073 Nm | 704 – 1530 |
Maximum torque | 2400 Nm | 1770 ft. lbs |
Free speed | 5000 rpm | |
Power/weight ratio | 190.5 Nm/kg | 63.7 ft.lb/lb |
VST2 | 271 | |
Socket retainer | Dual (hole+friction) | |
Clutch type | Pin less closed rocking dog | |
Bolt size | M32 |
(CP7776-6)
Barcode # | 15451715366 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.004470000m3 |
