CP7778 Straight Case Impact Wrench 1" 2200Nm Friction Ring With Hole Retainer
Model : #CP7778
Share This Item:

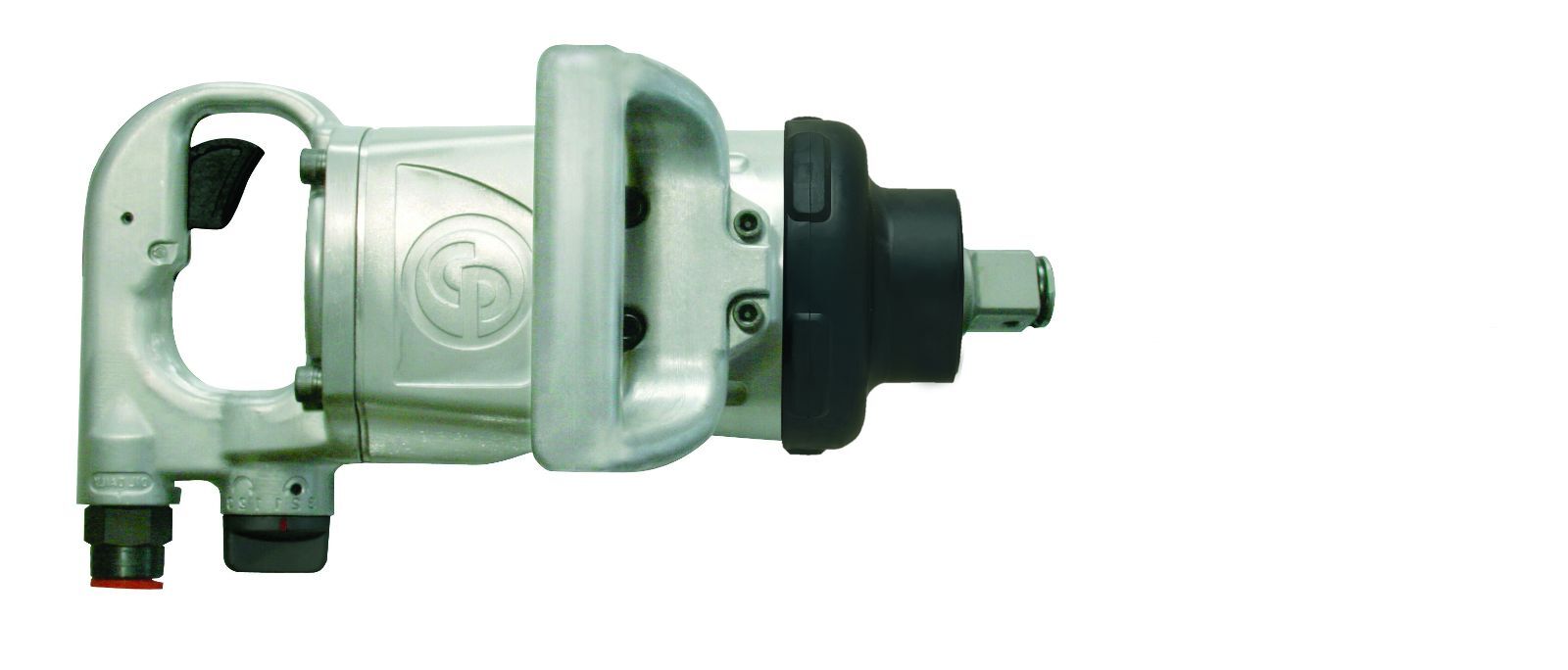

Chicago Pneumatic CP7778 Straight Case Impact Wrench
Features
- 1" heavy-duty impact wrench
- Rocking dog clutch
- High-efficiency 6-vane motor
- 3-position power settings with directional control
- Angled down exhaust
Specifications
Part Number | 8941077780 | |
Length | 355 mm | 13.4" |
Net weight | 10.1kg | 22.2 lb. |
Side to centre | 45 mm | 1.8" |
Average air consumption | 4.1 l/s | 8.7cfm |
Actual air consumption | 16.5 l/s | 35 cfm |
Air inlet thread size | 1/2" | |
Minimum hose size | 13 mm | 1/2" |
Sound pressure | 106 db(A) | |
Sound power | 117 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 11.2 m/s² | |
Vibration uncertainty | 3.5 m/s² | |
Handle type | D-Handle Inside Trigger | |
Square drive | 1" | |
Working torque | 400 - 1,800 Nm | 300 – 1,330 |
Maximum torque | 2200 Nm | 1620 ft. lbs |
Free speed | 5000 rpm | |
Power/weight ratio | 217.8 Nm/kg | 73 ft.lb/lb |
Socket retainer | Dual (hole+friction) | |
Clutch type | Pinless rocking dog |
(CP7778)
Brand | Chicago Pneumatic |
Shipping Cubic | 0.003550000m3 |
