CP782 Screwdriver Straight Case Roller Clutch External Clutch Adjust 1800rpm 5Nm
Model : #CP782
Share This Item:

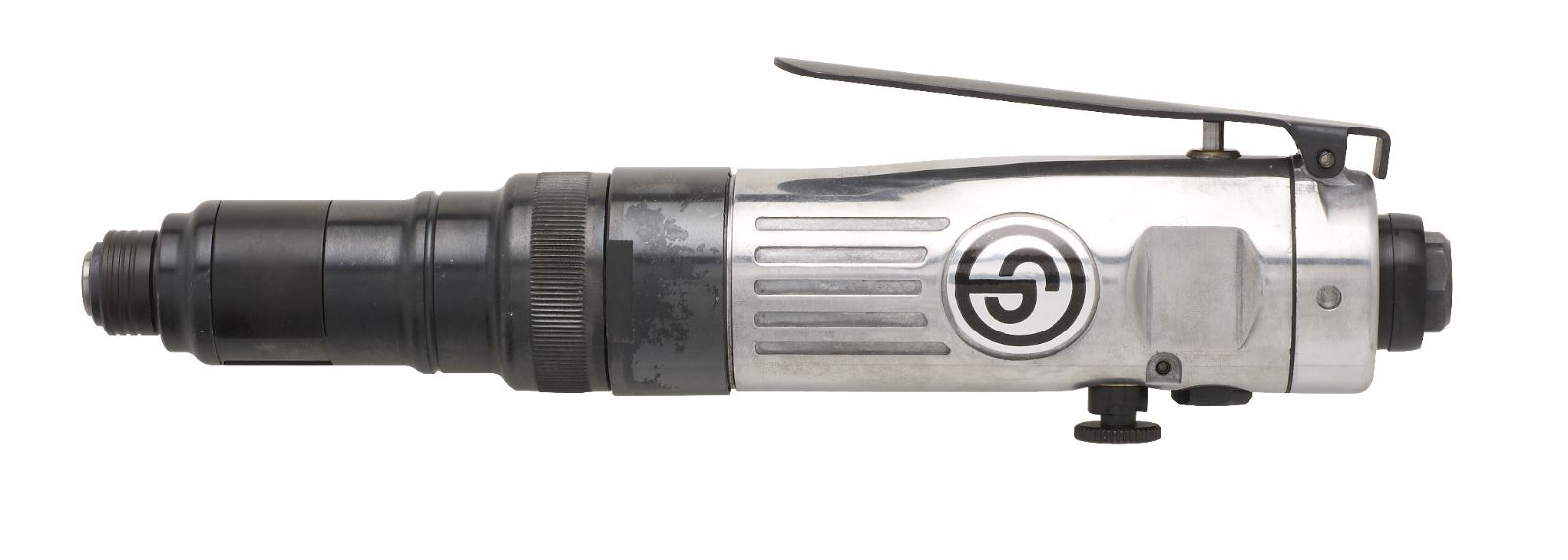

Chicago Pneumatic CP782 Straight Case Roller Clutch Screwdriver
Ideal tool for general assembly operations on metal, wood, PVC, or any repair applications. Faster cycle times with 1,800 rpm.
Features
- Straight Cushion Clutch Screwdriver
- External clutch adjustment
- Built-in 1/4" Female Hexagonal quick-change
- Convenient single handed forward/reverse valve
- High torque: 44 in.lbs (5 Nm)
- Progressive lever start and suspension bail
Specifications
Part Number | T025097 | |
Length | 245 mm | 9.63" |
Net weight | 1.13 kg | 2 1/2 lb |
Average air consumption | 1.9 l/s | 4 cfm |
Average air consumption | 113 l/mn | 4 cfm |
Actual air consumption | 7.6 l/s | 16 cfm |
Actual air consumption | 453 l/mn | 16 cfm |
Free speed air consumption | 7.6 l/s | 16.1 cfm |
Air inlet thread size | 1/4 " | |
Min. hose size | 10 mm | 3/8" |
Sound pressure | 93.9 db(A) | |
Sound Power | 104.9 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | <2.5 m/s² | |
Vibration uncertainty (K) | - m/s² | |
Output drive | 1/4" | |
Handle type | Straight | |
Clutch type | Cushion | |
Free speed | 1800 rpm | |
Max working torque | 4.97 Nm | 3.7 ft.lbs |
Min working torque | 3.5 Nm | 2.58 ft.lbs |
Diametre | 30 mm | 0.76 |
Bit holder | Quick Change Hexagonal Female |
(CP782)
Barcode # | 15451510473 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002450000m3 |
