Chicago Pneumatic CP9426 1/4" Ratchet Wrench Compact Max Torque 35Nm
Model : #CP9426
Share This Item:

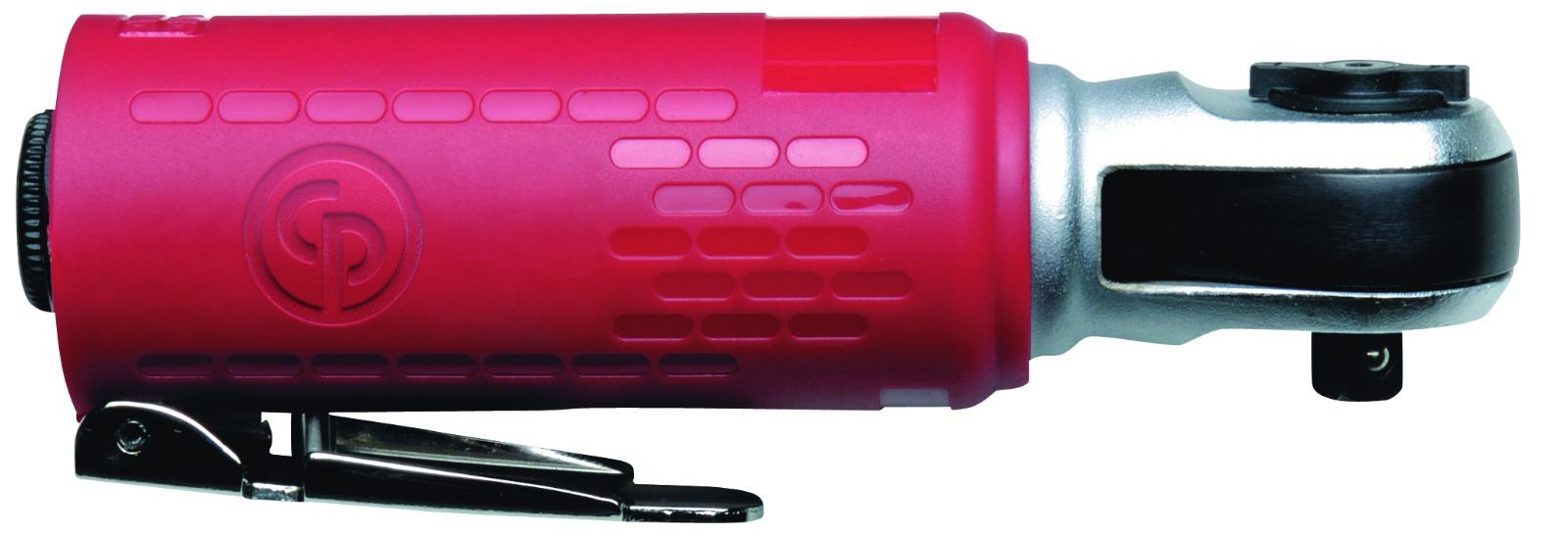

Chicago Pneumatic CP9426 1/4" Compact Ratchet Wrench
Features
- 1/4" mini ratchet
- High power: 27 ft.lbs (35 Nm)
- One of the smallest ratchets only 5.1" (130mm) long
- Rubber grip
Specifications
Part Number | 6151919426 | |
Length | 128 mm | 5.1" |
Net weight | 0.49 kg | 1.1 lb |
Average air consumption | 1.4 l/s | 3 cfm |
Actual air consumption | 5.6 l/s | 12 cfm |
Actual air consumption | 336 l/mn | 12 cfm |
Air inlet thread size | 1/4" | |
Min. hose size | 10 mm | 3/8" |
Sound pressure | 82 db(A) | |
Sound power | 93 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 5 m/s² | |
Vibration uncertainty (K) | 1.5 m/s² | |
Square drive | 1/4" | |
Working torque range | 7-35nm | 5-27 |
Maximum torque | 35nm | 27 ft lbs |
Free speed | 270 rpm |
(CP9426)
Barcode # | 15451652104 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.001280000m3 |
