CP9882 Air Hydraulic Riveter 3/16" 4.8mm Rivet Capacity Compact & Easy To Use
Model : #CP9882
Share This Item:

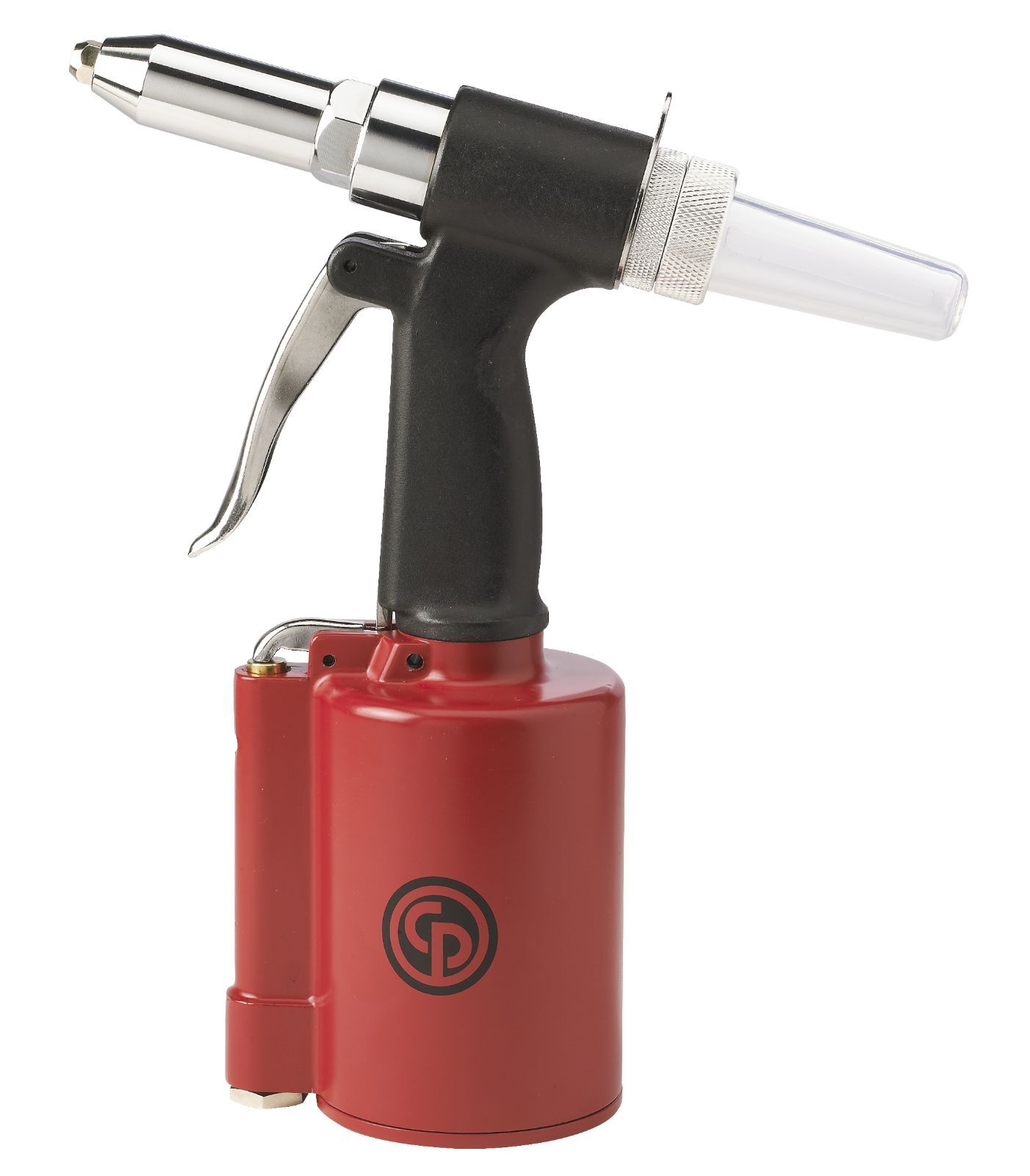

Chicago Pneumatic CP9882 Air Hydraulic Riveter
Great for trailer panels, number plates, and any type of panels maintenance.
Features
- 3/16" (4.8 mm) max. capacity
- For rivets in Aluminum, copper and softer materials
- Heavy pulling: up to 2,200 lbs (1,000 kg)
- Transparent container with holes for quick release of rivet ends
- Includes: nose pieces for rivets 3/32", 1/8", 5/32" and 3/16" (2.4, 3.2, 4 and 4.8 mm)
Specifications
Part number | 8941098820 | |
Length | 225 mm | 8.9" |
Net weight | 1.5 kg | 3.3 lb. |
Average air consumption | 0.4 l/s | 1 cfm |
Actual air consumption | 1.9 l/s | 4 cfm |
Actual air consumption | 114 l/mn | 4 cfm |
Air inlet thread size | 1/4" | |
Minimum hose size | 10 mm | 3/8" |
Sound pressure | 62 db(A) | |
Vibration ISO | ISO-28927-8 | |
Vibration | <2.5 m/s² | |
Sound dba pressure | 3 db(A) | |
Max axial pulling load | 1000kg | 2200 lb |
(CP9882)
Barcode # | 15451596132 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002250000m3 |
