CP1820R22 7/8" Reversible Heavy Duty Drill 480rpm Free Speed No.2 Taper
Model : #CP1820R22
Share This Item:

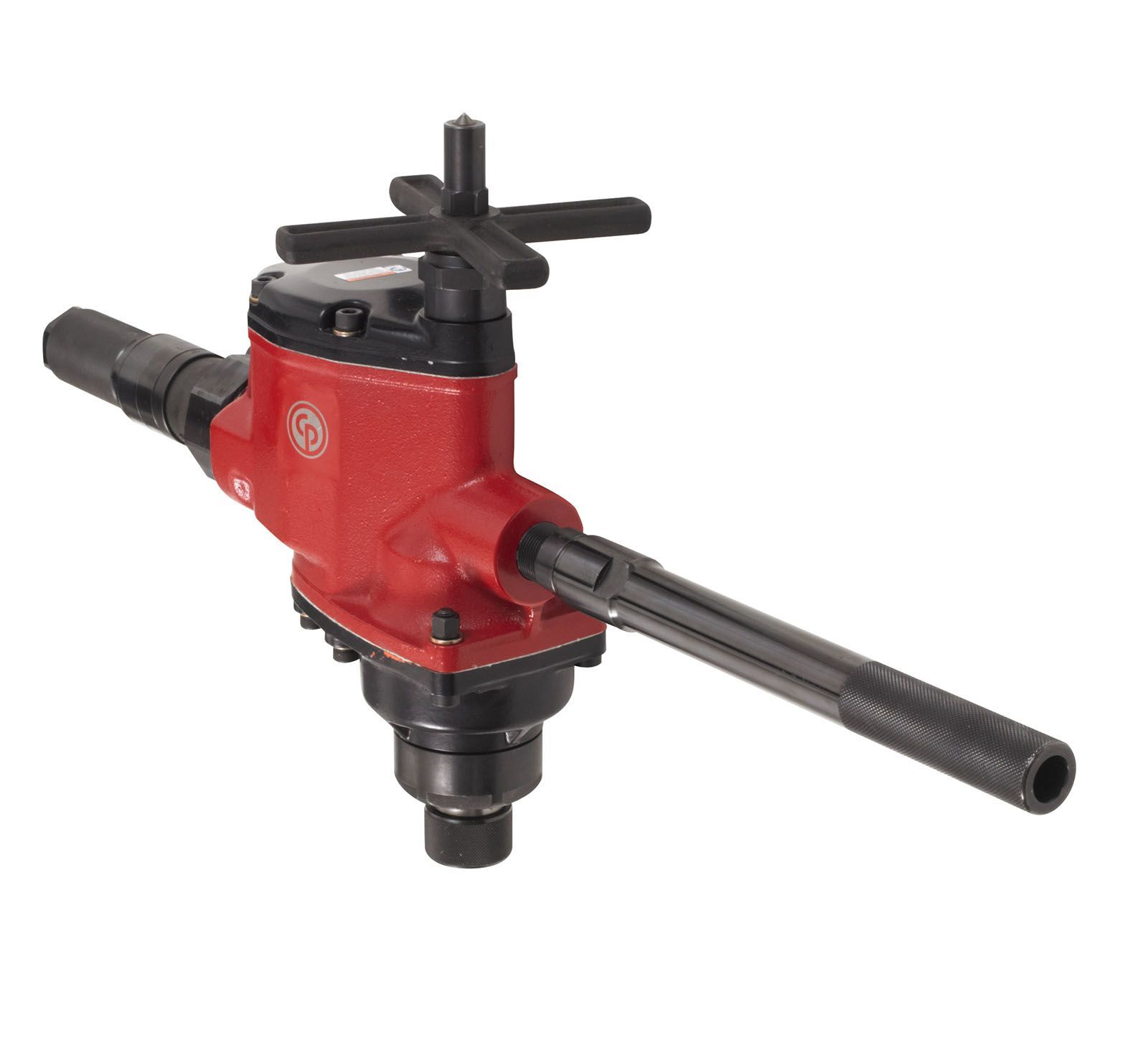

Chicago Pneumatic CP1820R22 Reversible Drill
Features
- 7/8" (22 mm) reversible heavy duty drill, 480rpm of free speed
- Powerfull with 1.2 hp (890 W) motor
- Morse Taper No.2 drill socket
- Good for drilling up to 7/8", reaming & tapping up to 3/4"
- Self Return rolling throttle ensures the safety control
- Excellent durable gearbox ensures the strong drilling
Benefits
- Super Industrial drills designed for intensive duty and high durability with precision
- Ideal for drilling, reaming & tapping of mild steel, cast iron
Specifications
Part Number: 6151580280 | ||
Actual Air Consumption | 20 l/s | 42.4 cfm |
Air Inlet Thread Size | 1/2 " | |
Chuck Capacity | 22 mm | 7/8 " |
Collet / Spindle Size | M.T.2 " | |
Free Speed | 480 rpm | |
Free Speed Air Consumption | 16.1 l/s | 34.3 cfm |
Length | 282 mm | 11.1 " |
Minimum Hose Size | 13 mm | 1/2 " |
Net Weight | 7.3 kg | 16 lb |
Power | 890 W | 1.2 hp |
Sound Power | 109 db(A) | |
Sound Pressure | 98 db(A) | |
Stall Torque | 78.4 Nm | 57.8 ft.lbs |
Vibration | 3.8 m/s² | |
Vibration ISO | ISO-28927-5 | |
Vibration uncertainty (K) | 1.2 m/s² |
(CP1820R22)
Barcode # | 4589484313159 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002820000m3 |
