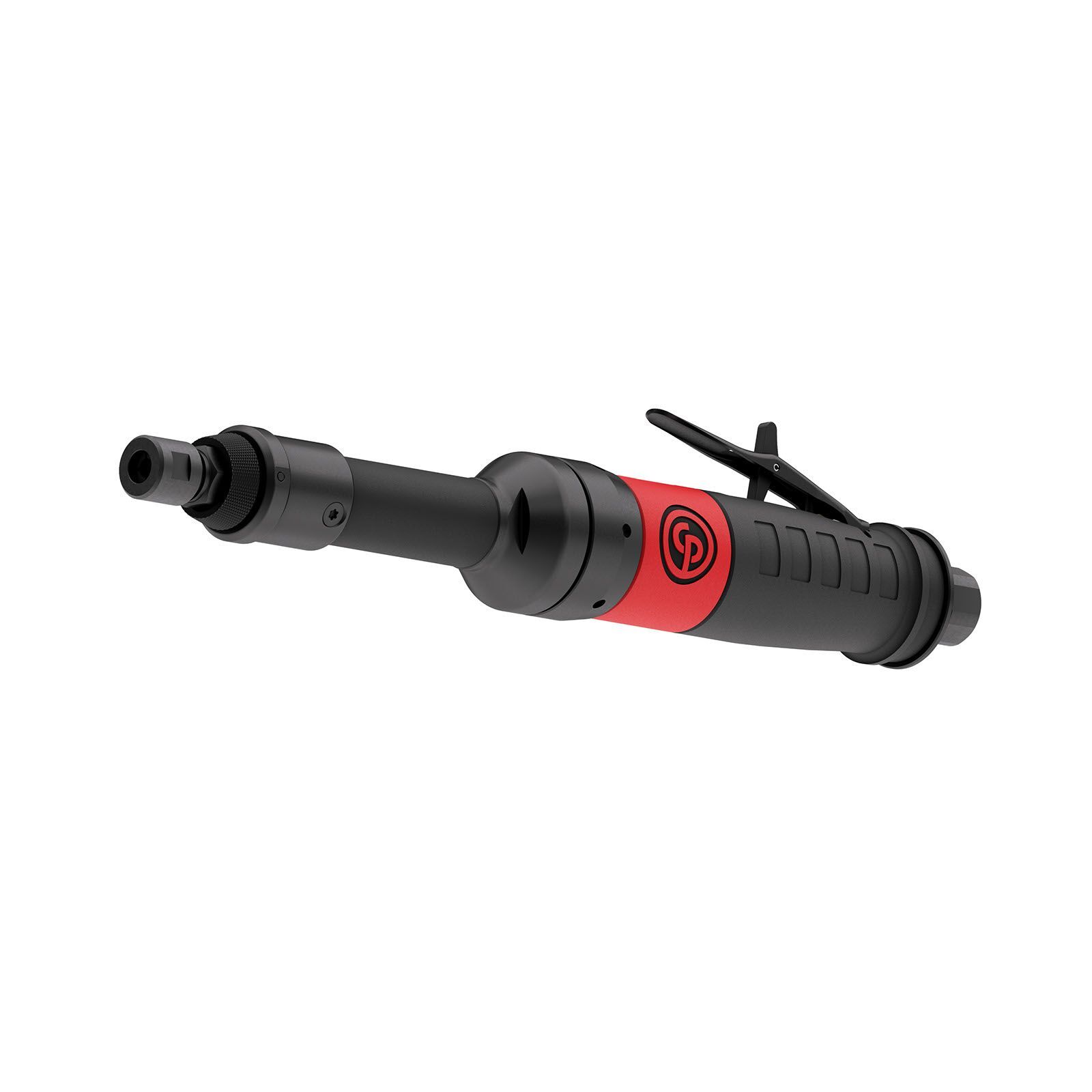

CP3550-120ES Extended Industrial Die Grinder 1.5hp 12000rpm Can Use 1/8" up to 3/8" Collet
Model : #CP3550-120ES
Share This Item:
CP3550-120ES Extended Industrial Die Grinder 1.5hp 12000rpm Can Use 1/8" up to 3/8" Collet
Features:
- Industrial die grinder, 12000 rpm, extended version
- Can be used with Erickson 200 collets from 1/8" (3.2mm) up to 3/8" (9.5 mm)
- Delivered with a Erickson 200 collet for 1/4" and 6 mm mounted points or carbide burrs
Benefits:
- Top productivity thanks to high power and great comfort
- Innovative design - new mechanism to lock collet holder for easy change of mounted point or carbide burr
- Excellent durability
Specifications:
- Part number: 6151602350
- Actual air consumption: 26 l/s / 56 cfm
- Air inlet thread size: 3/8 "
- Air inlet thread type: NPT
- Box dimensions: 395x90x75 mm / 15.6x3.5x3.0 "
- Collet size: 6.35 mm / 1/4 "
- European Directives: 2006/42/EC (17/05/2006)
- European Sound standard: ISO-15744
- European Standards: EN ISO 11148-9:2012
- Free speed: 12000 rpm
- Free speed air consumption: 8 l/s / 19 cfm
- Height: 52 mm / 2.0 "
- Length: 365 mm / 14.4 "
- Minimum hose size: 13 mm / 1/2 "
- Net weight: 1.4 kg / 3.1 lb
- Power: 1050 W / 1.4 hp
- Rear exhaust: Yes
- Side to center: 26 mm / 1.0 "
- Sound Power: 88 db(A)
- Sound pressure: 77 db(A)
- Vibration: <2.5 m/s²
- Vibration ISO: ISO-28927-12
(CP3550-120ES)
Barcode # | 15451785277 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.003650000m3 |
