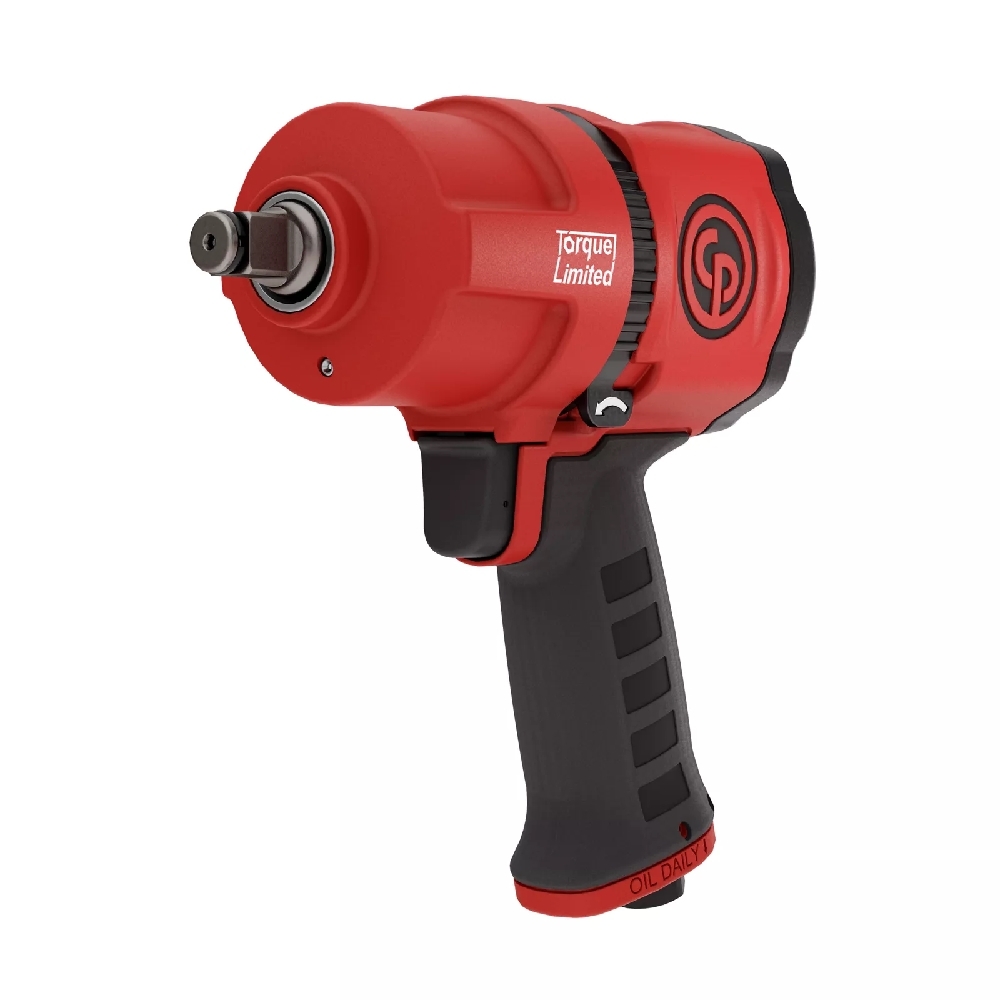

Chicago Pneumatic CP7748TL 1/2" Impact Wrench with Forward Torque Limiter 100Nm

Features:

• 1 position torque limited in forward around 66 ft.lbs / 90 Nm960 ft.lbs / 1,300 Nm of maximum torque
• One-hand reverse system (Ring system)
• 6.89 in. / 175 mm of length
• Hard anodized end platesHard chromium aluminum cylinder
• Twin hammer mechanism
• 4.4 lbs – 2.0 kg thanks to its composite motor housing
• Curved handle with rubber material
• Resistant to most chemicals used in workshops
• Rubber grip at the back
• Does not slip when it is in operator’s hand even if it is dirty or oily

Specifications:

• Model: CP7748TL
• Part number: 8941077487
• Actual air consumption: 12 l/s / 25 cfm
• Air inlet thread size: 1/4 "
• Average air consumption: 3 l/s / 6.2 cfm
• Blows per minute: 1350
• Box dimensions: 95x210x240 mm / 3.75x8.25x9.45 "
• Clutch type: Twin Hammer
• Dimension A: 65.4 mm / 2.57 "
• Dimension B: 69.8 mm / 2 3/4 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound standard: ISO 15744
• European Standards: EN ISO 11148-6:2013
• Free speed: 7000 rpm
• Free speed (fwd): 2400 rpm
• Handle type: Pistol
• Height: 200 mm / 7.87 "
• Length: 175 mm / 6.89 "
• Maximum Torque (reverse): 1300 Nm / 960 ft.lbs
• Min. hose size: 10 mm / 3/8 "
• Net weight: 2 kg / 4.4 lb
• Side to center: 39 mm / 1 1/2 "
• Socket retainer: Friction ring
• Sound Power: 105.3 db(A)
• Sound pressure: 94.3 db(A)
• Sound uncertainty: 3 db(A)
• Square drive: 1/2 "
• Vibration: 12 m/s²
• Vibration (fwd): 7.57 m/s²
• Vibration ISO: ISO 28927-2
• Vibration uncertainty (K): 4.5 m/s²
• Width: 78 mm / 3 "
• Working Torque Range (fwd): 90 - 140 Nm / 66 - 103 ft.lbs
