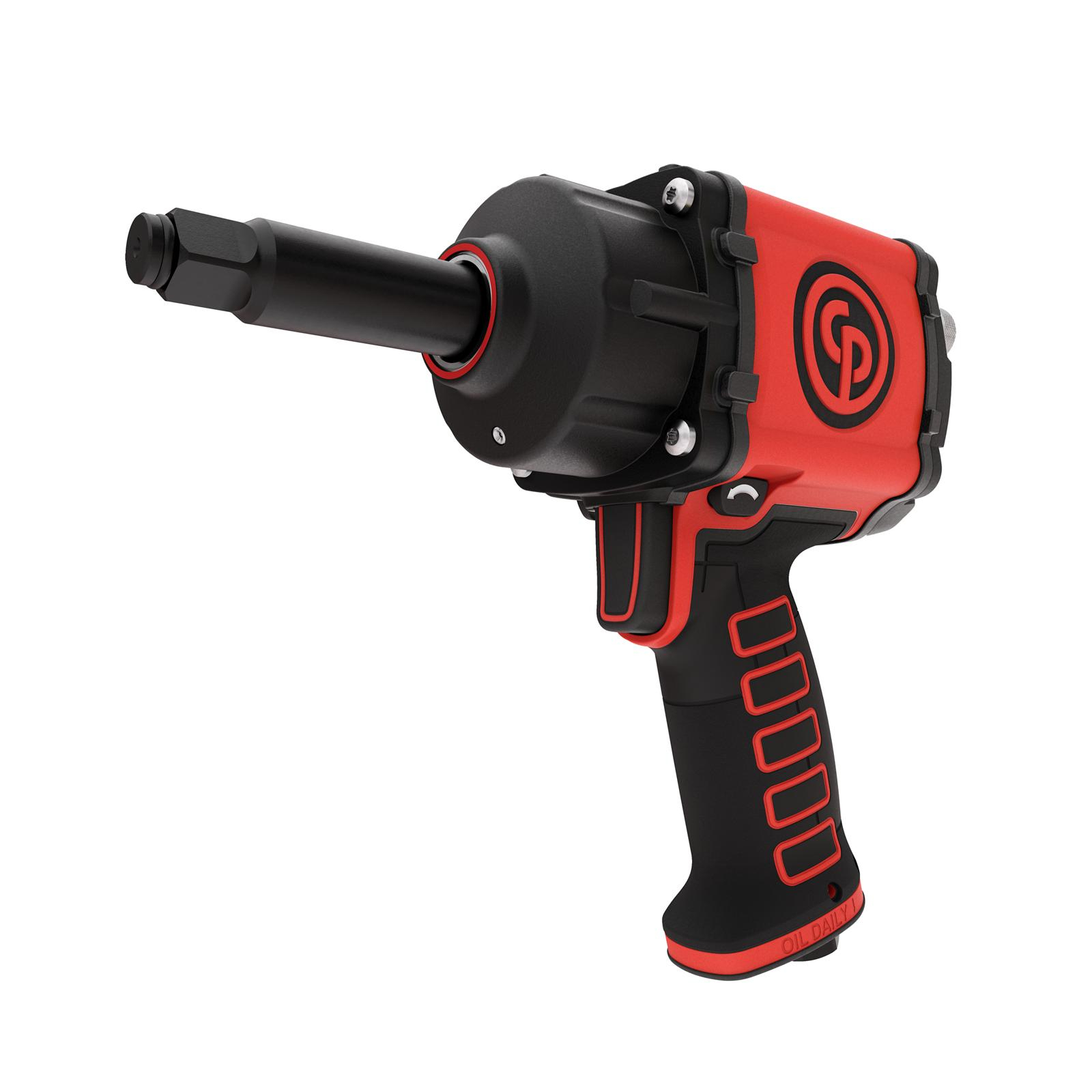

Chicago Pneumatic CP7755-2 1/2" Impact Wrench with 2" Extended Anvil

Features:

• The best and the most adjustable power control for pneumatic tools
• 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 and 100% of maximum torque
• Composite motor housing (4.3 lbs / 1.96 kg)
• Twin hammer mechanism
• Bumpers all over the tool
• Bi-material and bi-color handle and trigger Friction ring socket retainer
• Final torque must be applied manually using a calibrated torque wrench (please refer to the operator’s manual)

Specifications:

• Model: CP7755-2
• Part number: 8941077552
• Actual air consumption: 108 l/mn / 3.9 cfm
• Air inlet thread size: 1/4 "
• Blows per minute: 1200
• Box dimensions: 272x209x95 mm / 10.7x8.2x3.7 "
• Clutch type: Twin hammer
• Dimension A: 113.5 mm / 4.4 "
• Dimension B: 55.4 mm / 2.18 "
• European Directives: 2006/42/EC (17/05/2006)
• European Sound standard: EN ISO 15744
• European Standards: EN ISO 11148-6:2013
• Free speed: 7700 rpm
• Free speed air consumption: 156 l/mn / 5.6 cfm
• Handle type: Pistol
• Height: 199 mm / 7.83 "
• Length: 219 mm / 8.62 "
• Maximum Torque (fwd): 1080 Nm / 796 ft.lbs
• Maximum Torque (reverse): 1300 Nm / 960 ft.lbs
• Min. hose size: 10 mm / 3/8 "
• Net weight: 1.96 kg / 4.3 lb
• Power/weight ratio: 562 Nm/kg / 223 ft.lb/lb
• Side to center: 38 mm / 1 1/2 "
• Socket retainer: Friction ring
• Sound Power: 105 db(A)
• Sound pressure: 94 db(A)
• Sound uncertainty: 3 db(A)
• Square drive: 12.7 mm
• Vibration: 7.9 m/s²
• Vibration ISO: ISO-28927-2
• Vibration uncertainty (K): 1.8 m/s²
• Width: 76 mm / 3 "
• Working Torque Range (fwd): 80 - 575 Nm / 59 - 425 ft.lbs
