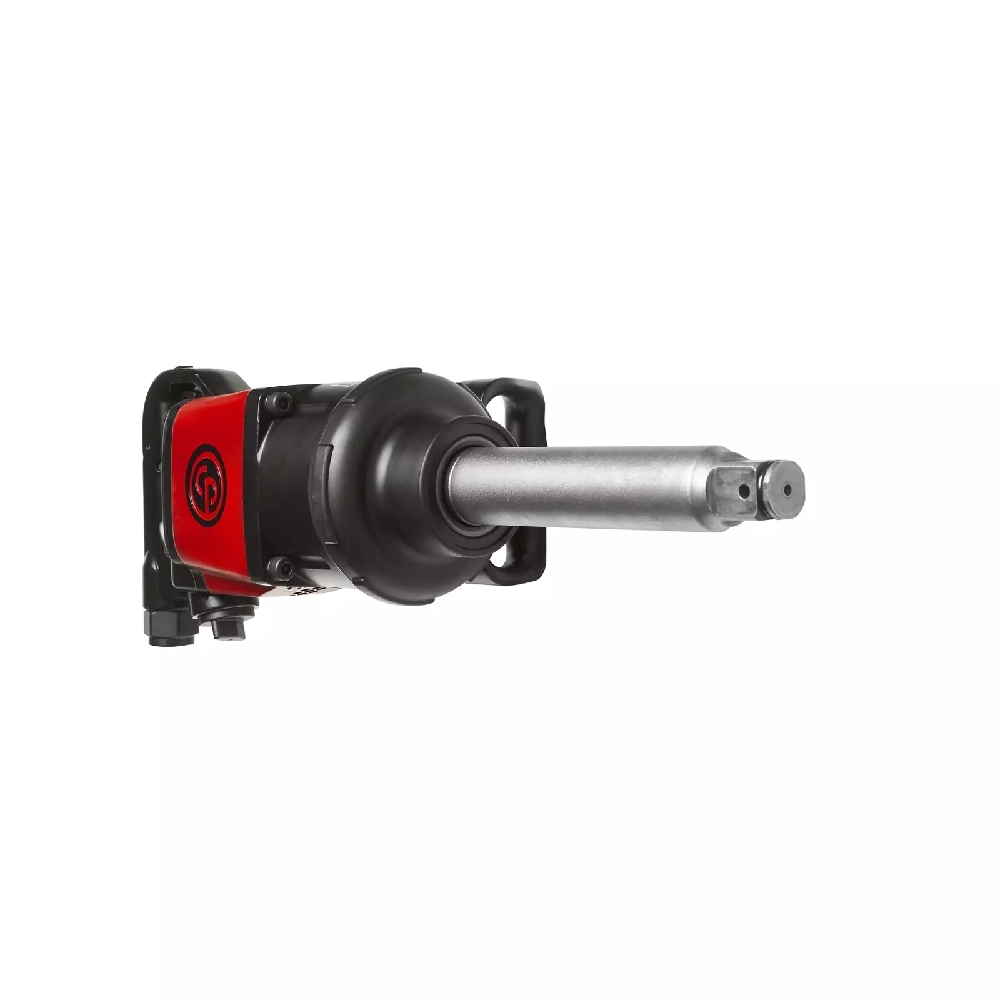

Chicago Pneumatic CP7782TL-6 Impact Wrench with 6" Extended Anvil
Model : #CP7782TL-6
Share This Item:
Chicago Pneumatic CP7782TL-6 Impact Wrench with 6" Extended Anvil
Features:
- 1 position torque limited in forward around 370 ft.lbs / 500 Nm
- 1920 ft.lbs / 2600 Nm max torque (3 setting positions)
- Ergonomic D-handle with full teasing trigger
- Pinless closed reinforced rocking dog mechanism
- Rubber bumper protecting both applications & tool (included)
- Socket retainer ring combined with hole retainer
- Ergonomic handle
Specifications:
- Model: CP7782TL-6
- Part Number: 8941077827
- Actual Air Consumption: 19.2 l/s / 40.7 cfm
- Air Inlet Thread Size: 1/2"
- Average Air Consumption: 4.8 l/s / 10 cfm
- Blows Per Minute: 500
- Bolt Size: M32 mm
- European Directives: 2006/42/EC (17/05/2006)
- European Sound Standard: ISO 15744
- European Standards: EN ISO 11148-6:2013
- Free Speed: 5200 rpm
- Height: 171.8 mm / 6.76 "
- Length: 510.8 mm / 20.11 "
- Maximum Torque (Reverse): 2600 Nm / 1920 ft.lbs
- Min. Hose Size: 13 mm / 1/2 "
- Net Weight: 11.6 kg / 25.55 lb
- Power/Weight Ratio: 257.4 Nm/kg / 86.5 ft.lb/lb
- Sound Power: 111 dB(A)
- Sound Pressure: 100 dB(A)
- Sound Uncertainty: 3 dB(A)
- Square Drive: 1 "
- Vibration: 7.8 m/s²
- Vibration ISO: ISO-28927-2
- Vibration Uncertainty (K): 1.8 m/s²
- Width: 210.6 mm / 8.29 "
- Working Torque Range (Fwd): 400 - 440 Nm / 295 - 325 ft.lbs
(CP7782TL-6)
Brand | Chicago Pneumatic |
Shipping Cubic | 0.008789200m3 |
