Ingersoll Rand W7172 3/4" 20V Brushless Lithium-Ion High Torque Impact Wrench
Model : #IRTW7172-K22-AN
Share This Item:
Ingersoll Rand W7172 3/4″ 20V Brushless Lithium-Ion High Torque Impact Wrench
Delivering 2040Nm (1500 ft-lbs) of nut-busting torque and utilising the IQV Intelligent Control System, the W7152 can go from MAX torque to “hand tight” in no time.
Features
- Powerful brushless motor and impact mechanism
- IQV Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight
- Patented steel reinforced frame and impact-and-chemical resistant housing protects the W7172 from everyday abuse
- 8.1” short tip-to-tail design and 360 degree shadowless task light
- Tuned impact mechanism with 2040Nm (1500 ft-lb) nut-busting torque and 1360Nm (1000 ft-lb) of MAX torque
- Robust and durable all-metal drivetrain and hammer mechanism
- Variable-speed switch (half and full power only) with electronic brake
- 4 dimmable settings on the shadowless 360º LED light ring
Specifications
Voltage | DC 20 | |
Battery | BL2022 x2 | |
Model | Pistol | |
Configuration Drive Size | 3/4″ | |
Drive Type / Socket Retainer | Square / Ring | |
Nut-Busting Torque | 1500 ft.lb. | 2040 Nm |
Forward Torque | 100 ft.lb. | 1360 Nm |
Hand Tight Forward Torque | 4-10 ft.lb. | 5-14 Nm |
Wrench Tight Forward Torque | 35-110 ft.lb. | 47-149 Nm |
Half Power Forward Torque | 530 ft.lb. | 720 Nm |
Max Reverse Torque | 1000 ft.lb. | 1360 Nm |
Blows Per Minute | 2450 | |
Free Speed | 1900 rpm | |
Hand Tight Free Speed | 600 rpm | |
Wrench Tight Free Speed | 1000 rpm | |
Half Power Free Speed | 1450 rpm | |
Weight without Battery | 6.0 lbs. | 2.7 kg. |
Weight with Battery | 7.6 lbs. | 3.4 kg. |
Width | 3.3 in. | 84 mm |
Height without Battery | 9.3 in. | 237 mm |
Height with Battery | 11.1 in. | 282 mm |
Length | 8.1 in. | 207 mm |
Length with Battery | 8.1 in. | 207 mm |

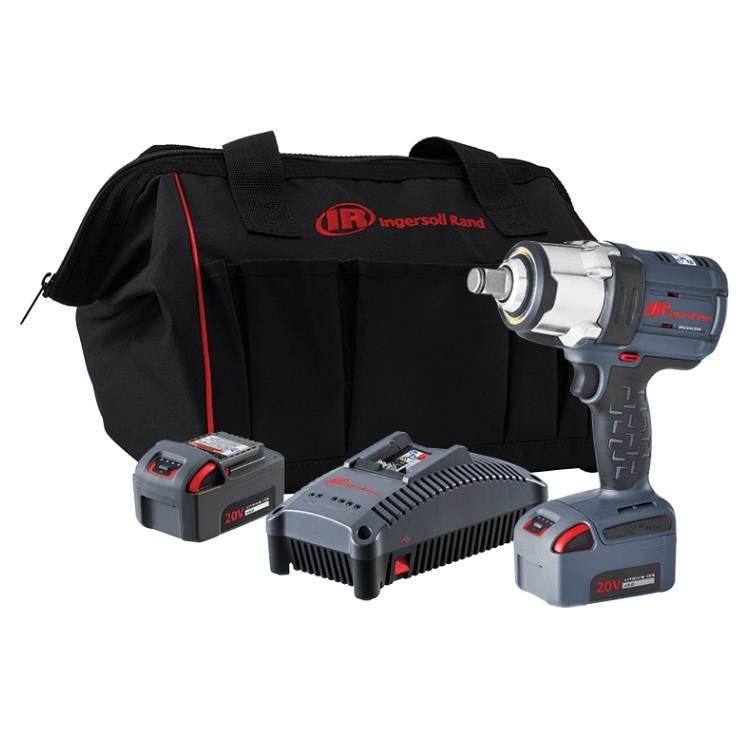

Set Inludes
- 1 x 20V Brushless High-Torque Impact Wrench
- 2 x 20V 5.0A Batteries
- 1 x Charger
- 1 x Carry Bag
(IRTW7172-K22-AN)
Barcode # | 663024014974 |
Brand | Ingersoll Rand |
