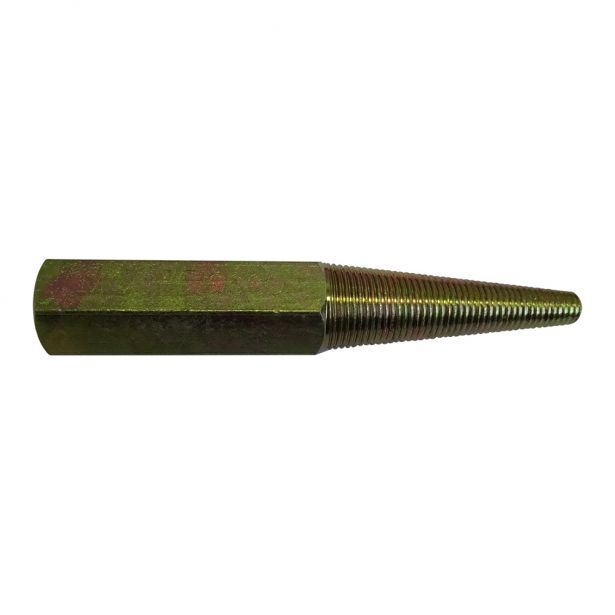

Josco 12mm Right Hand Tapered Spindle JTS012R for Bench Grinder

Tapered spindles allow the fitting of polishing buffs and wheels to bench grinders and sander/polishers. This spindle features a 12mm internal thread and screws onto the right-hand side of your 150mm (6") bench grinder.

Instructions for Fitting a Tapered Spindle to a Bench Grinder:

1. Step 1: Remove the outer guard, grinding wheel, and inner guard from the side of the machine where the tapered spindle will be fitted.
2. Step 2: Screw on the tapered spindle. The internal thread is counter bored to ensure it covers the entire grinder shaft length.
3. Step 3: Carefully screw the buff onto the tapered spindle with the thickest flange facing inward. Screw it on as far as it will reasonably fit.
4. Step 4: Turn on the bench grinder, and the buff will tighten further against the tapered spindle.

Specifications:

• Part number: JTS012R
• Barcode: 9314028000029
