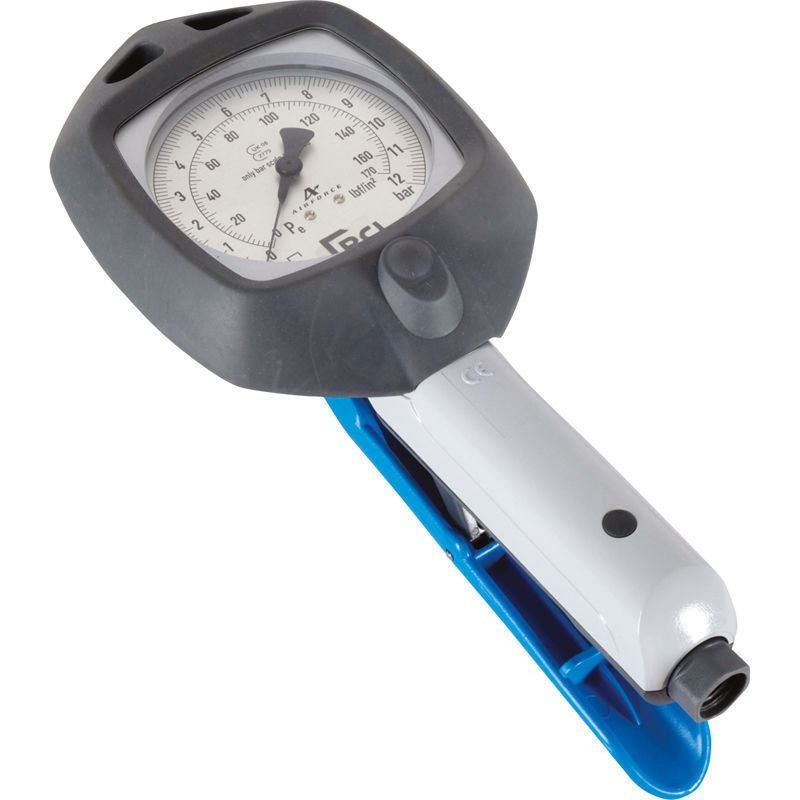

PCL AFG1H03 Airforce Air Line Dial Gauge Tyre Inflator

Fast and simple to use with guaranteed accuracy, this mechanical unit offers longer life, lower operating costs and excellent shock resistance – all within a modern functional design featuring a clear analogue display. Developed with ruggedised engineering plastics to withstand high volume, intensive applications, thereby lengthening its operating life.


  • Fast inflation and deflation rates
  • High levels of speed, accuracy and safety
  • Flexible usage
  • Clear dial display
  • Modern, lightweight and shock resistant construction
  • Proven Bourdon Tube with beryllium copper construction for robustness and high shock resistance
  • Direct valve design increasing inflation and deflation rates
  • Built in swivel and hanging device
  • Bar, psi, kPa versions and range of accessories
  • Reduced tyre wear extending tyre life


Inflation Flow 910(1)L/MIN(1) - @ 13 bar supply
Part Number AFG1H03
Description 21" General model
Hose Length 0.53M / 21"
Tyre Valve Connection Twin hold on
Calibration 0-170 psi / 0-12 bar
Accuracy exceeds EC directive 86/217
Reading accuracy 2 psi / 0.1 bar / 10 kPa
Maximum inlet pressure 218 psi / 15 bar / 1500 kPa
Complies to EC directive 86/217 ANDBS EN 12645:2014



Barcode # 5014875450070
Brand PCL
Unit Of Measure ea
