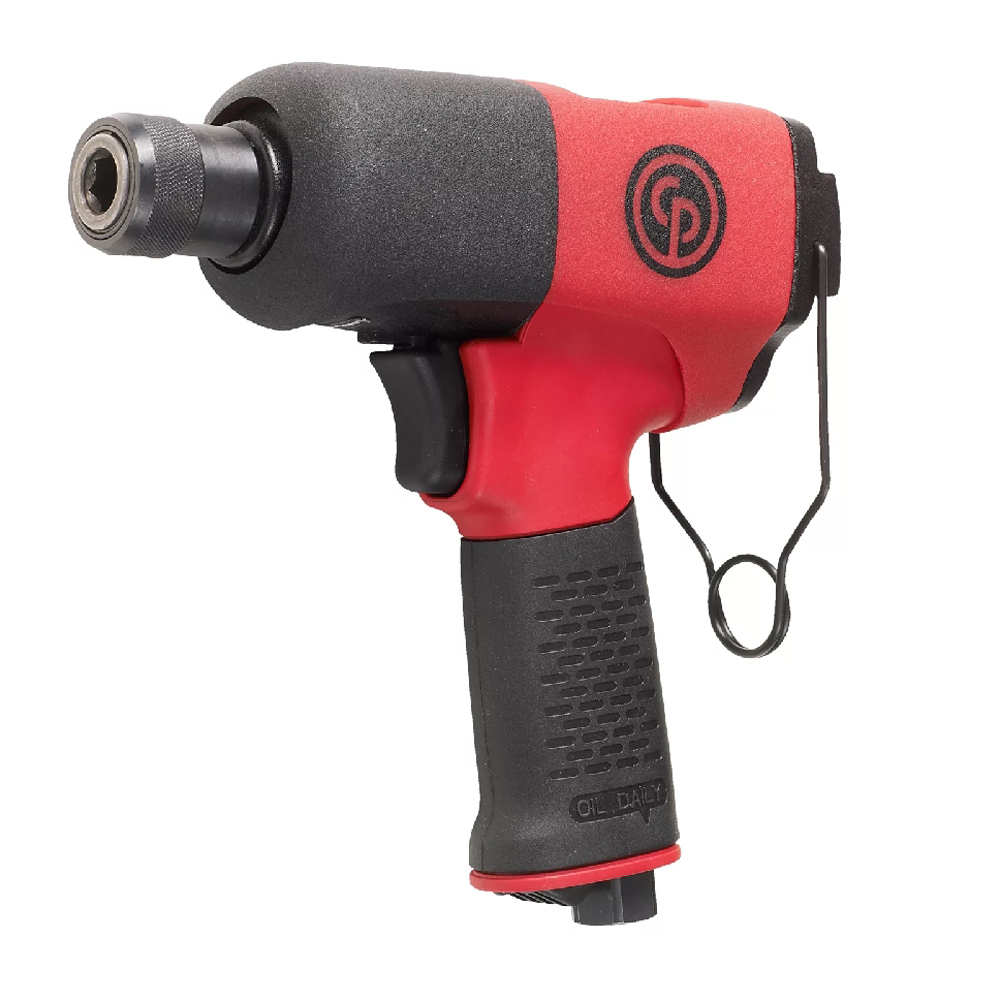

Chicago Pneumatic CP8232-QC 3/4" Impact Wrench Pistol 450Nm Hex Quick Change
Model : #CP8232-QC
Share This Item:
Chicago Pneumatic CP8232-QC 3/4" Impact Wrench Pistol 450Nm Hex Quick Change
Durable and reliable impact for industrial maintenance and production applications.
Features:
- 7/16" Hexagonal Quick Change impact wrench
- Powerful & durable twin hammer clutch
- Composite body and aluminum clutch housing
- 3 power settings in forward & full power in reverse
- Protective cover & suspension bail
- Progressive trigger & Rubber grip
Specifications:
- Model: CP8232-QC
- Part Number: 6151590190
- Actual Air Consumption: 10 l/s / 21.2 cfm
- Air Inlet Thread Size: 1/4 "
- Blows Per Minute: 1250
- Box Dimensions: 70 x 235 x 200 mm / 2,8 x 9,3 x 7,9 "
- Clutch Type: Twin hammer
- European Standards: EN ISO 11148-6:2013
- Free Speed: 11500 rpm
- Handle Type: Pistol
- Length: 177 mm / 7 "
- Maximum Torque (Reverse): 450 Nm / 332 ft.lbs
- Min. Hose Size: 10 mm / 3/8 "
- Net Weight: 1.4 kg / 3.1 lb
- Over Carton: 360 x 245 x 410 mm / 14,2 x 9,6 x 16,2 "
- Power/Weight Ratio: 321.4 Nm/kg / 107.1 ft.lb/lb
- Side to Center: 30 mm / 1.18 "
- Socket Retainer: Quick change
- Sound Power: 100 dB(A)
- Sound Pressure: 89 dB(A)
- Square Drive: 7/16 Hex. "
- Vibration: 6.6 m/s²
- Vibration ISO: ISO-28927-2
- Vibration Uncertainty (K): 3.2 m/s²
- Working Torque Range (Fwd): 80 - 400 Nm / 60 - 295 ft.lbs
(CP8232-QC)
