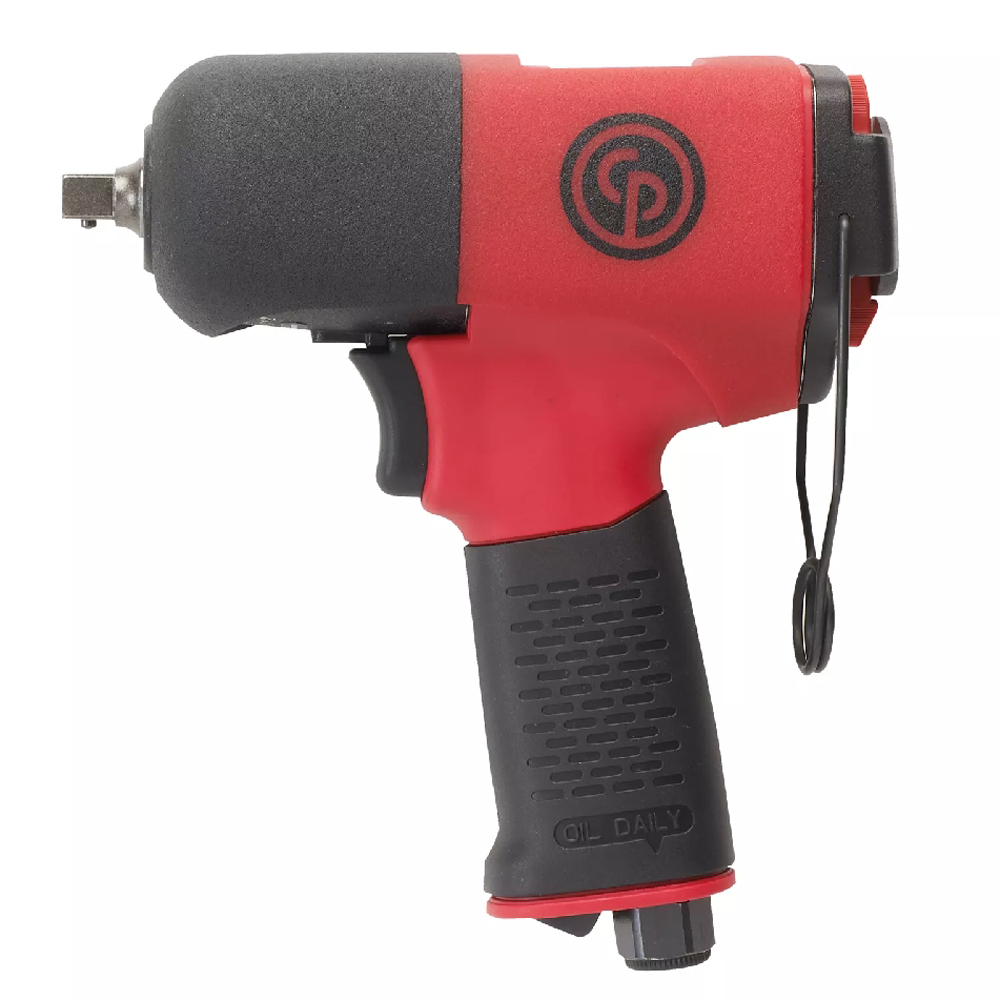

Chicago Pneumatic CP8222-P 3/4" Impact Wrench Pistol Grip 450Nm Pin Retainer

Durable and reliable impact for industrial maintenance and production applications.

Features:

• 3/8" compact impact with pin retainer
• Powerful & durable twin hammer clutch
• Composite body and aluminum clutch housing
• 3 power settings in forward & full power in reverse
• Protective cover & suspension bail
• Progressive trigger & Rubber grip
• Powerful but easy to control for assembly/disassembly operations
• Compact for easy access in confined areas

Specifications:

• Model: CP8222-P
• Part Number: 6151590180
• Actual Air Consumption: 10 l/s / 21.2 cfm
• Air Inlet Thread Size: 1/4"
• Blows per Minute: 1250
• Box Dimensions: 70 x 235 x 200 mm / 2,8 x 9,3 x 7,9 "
• Clutch Type: Twin hammer
• European Standards: EN ISO 11148-6:2013
• Free Speed: 11500 rpm
• Handle Type: Pistol
• Length: 177 mm / 7"
• Maximum Torque (Reverse): 450 Nm / 332 ft.lbs
• Minimum Hose Size: 10 mm / 3/8"
• Net Weight: 1.2 kg / 2.6 lb
• Over Carton: 360 x 245 x 410 mm / 14.2 x 9.6 x 16.2"
• Power/Weight Ratio: 375 Nm/kg / 127.7 ft.lb/lb
• Side to Center: 30 mm
• Socket Retainer: Pin retainer
• Sound Power: 100 dB(A)
• Sound Pressure: 89 dB(A)
• Square Drive: 3/8"
• VST2: 17.9
• Vibration: 5.8 m/s²
• Vibration ISO: ISO-28927-2
• Vibration Uncertainty (K): 2.4 m/s²
• Working Torque Range (Forward): 80 - 400 Nm / 60 - 295 ft.lbs
