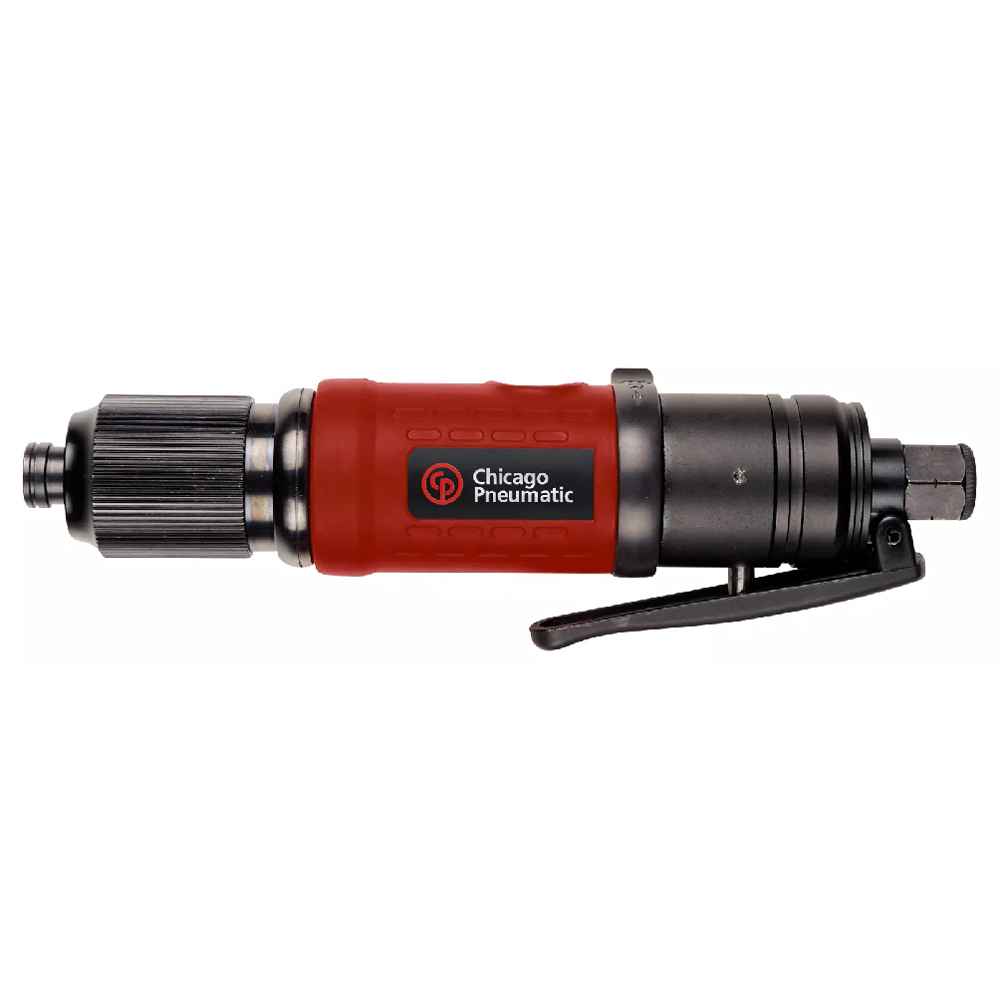

Chicago Pneumatic CP2623 Straight Case Screwdriver

Ideal for multiple MRO applications.


Features & Benefits

  • Straight Cushion clutch screwdriver with lever
  • Single handed reverse button
  • Keyless Torque setting adjustment
  • Color rings for identification
  • Productive thanks to 1,800 rpm
  • Compact for easy access
  • Low noise & vibration for operator comfort


Specifications

  Metric Imperial
Model CP2623
Part number 6151922623
Air inlet thread size 1/4 "
Bit holder Quick Change Hexagonal Female
Clutch type Cushion
Diameter 42 mm 1.65 "
Free speed 1700 rpm
Free speed air consumption 13.1 l/s 27.7 cfm
Handle type Straight
Length 207 mm 8.2 "
Max working torque 5 1/2 Nm 4.056 ft.lbs
Min working torque 1 1/2 Nm 1.106 ft.lbs
Min. hose size 10 mm 3/8 "
Net weight 0.8 kg 1.76 lb
Output drive 1/4 "
Screw type hard yes
Screw type soft yes
Sound Power 89 db(A)
Sound pressure 78 db(A)
Vibration <2.5 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) - m/s²



(CP2623)

Brand Chicago Pneumatic
Shipping Cubic 0.002070000m3
