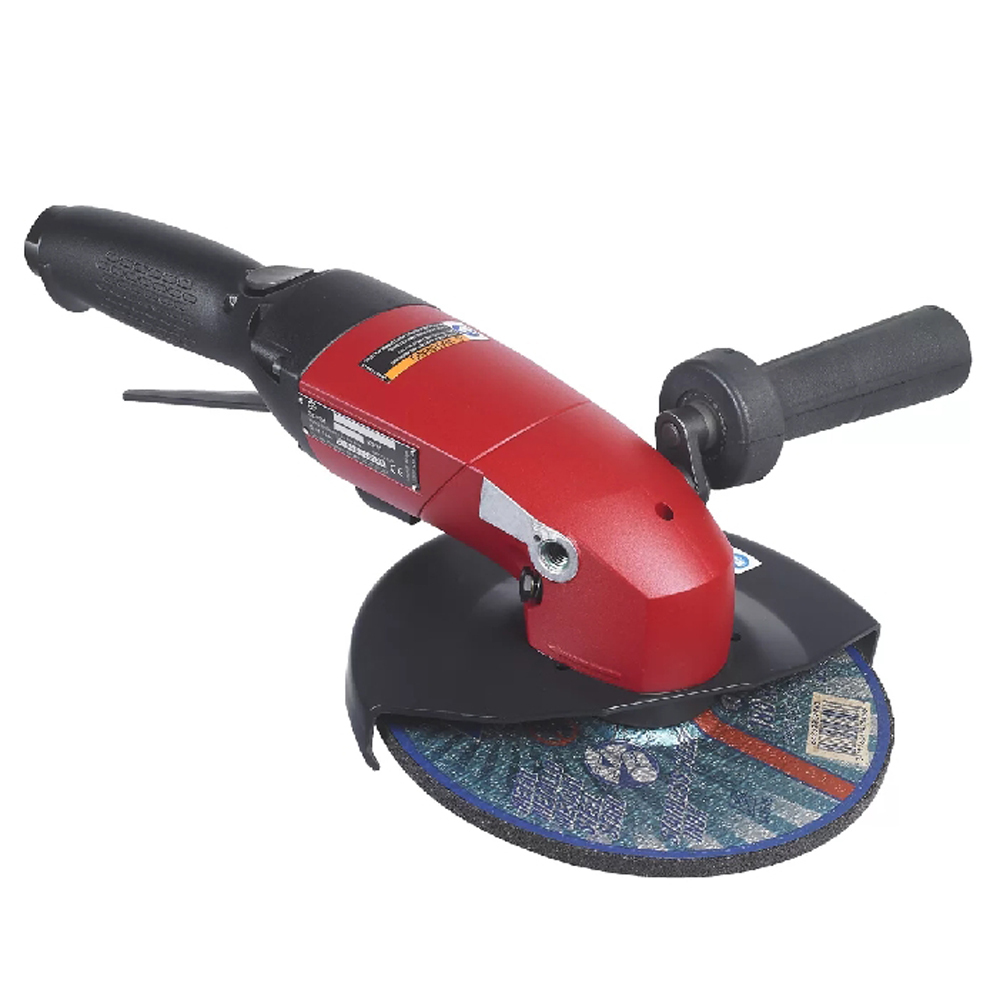

Chicago Pneumatic CP3850-85AB7VE 7" Super Duty Angle Grinder 2100W 8500 Rpm


Features & Benefits:

  • Low profile angle head
  • Superior durability bevel gear
  • Double action safety lever
  • Curved handle housing
  • 7" (180 mm) wheel capacity
  • 2.8 hp (2,100 W) high performance governed motor
  • 8,500 rpm free speed
  • Double action safety lever
  • Integrated silencer
  • Orientable exhaust
  • Spindle lock button
  • Auto balancer
  • Vibration damping multi-position side handle
  • CE certification / not for North American Market


Specifications:

  • Model: CP3850-85AB7VE
  • Part Number: 6151704920
  • Actual Air Consumption: 36 l/s / 77 cfm
  • Air Inlet Thread Size: 1/2 "
  • Average Air Consumption: 0 l/s
  • Box Dimensions: 390X295X135 mm
  • European Directives: 2006/42/EC (17/05/2006)
  • European Standards: EN 11148-7:2012
  • Free Speed: 8500 rpm
  • Free Speed Air Consumption: 17 l/s / 36 cfm
  • Height over Spindle: 107 mm / 4.21 "
  • Length: 340 mm / 13.4 "
  • Min. Hose Size: 5/8 "
  • Net Weight: 2.9 kg / 6.4 lb
  • Power: 2100 W / 2.8 hp
  • Side to Center: 29 mm / 1.14 "
  • Sound Power: 98 db(A)
  • Sound Pressure: 87 db(A)
  • Spindle Thread: 5/8-11
  • Vibration: 5.7 m/s²
  • Vibration ISO: ISO-28927-1
  • Vibration Uncertainty (K): 1.1 m/s²
  • Wheel Size: 180 mm / 7 "

(CP3850-85AB7VE)

Brand Chicago Pneumatic
Shipping Cubic 0.003400000m3
