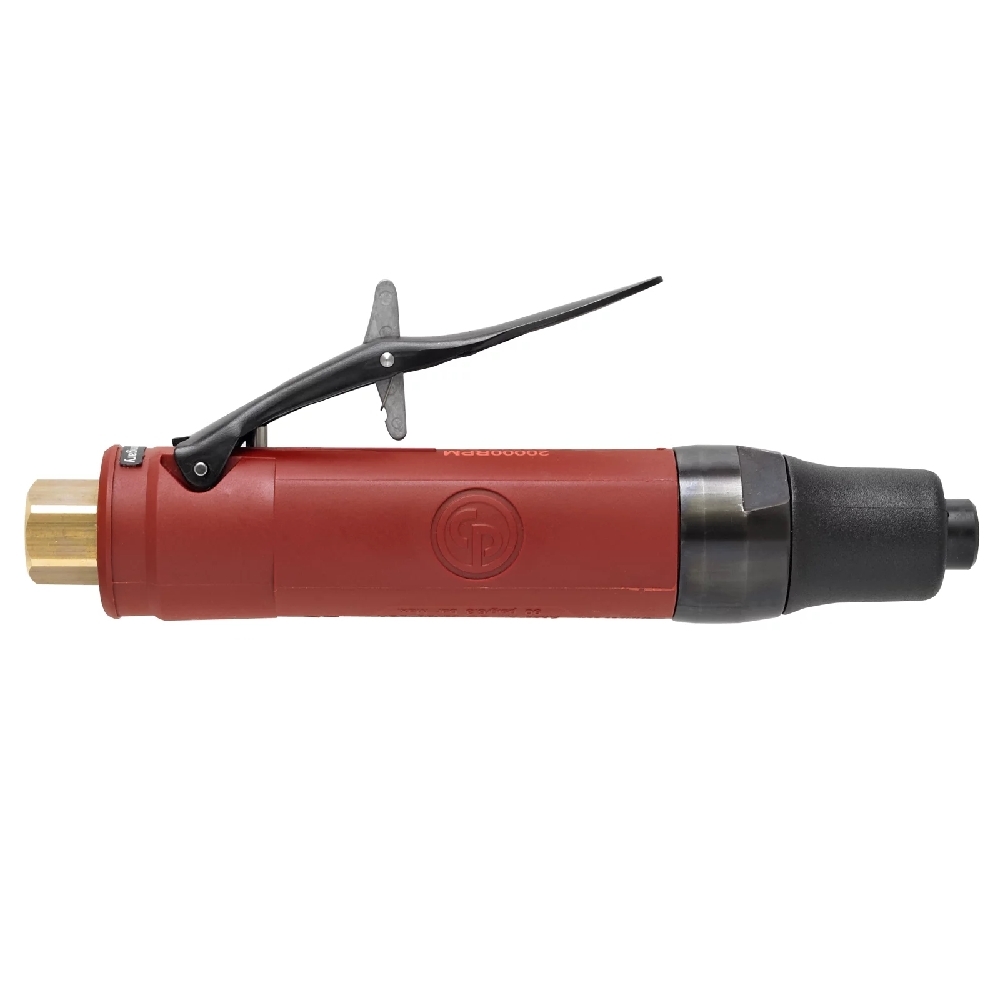

Chicago Pneumatic CP3019-40 Super Duty Die Grinder


Features & Benefits

  • Compact body
  • Insulating composite over-housing
  • Streamlined safety lever
  • Rear exhaust
  • 1/4" (6.35 mm) collet holder
  • 0.5 hp (375 W) governed motor
  • 40,000 rpm free speed
  • Optimal productivity
  • Highest durability in demanding applications up to 2000 hours maintenance intervals


Specifications

  Metric Imperial
Model CP3019-40
Part number 6151600130
Actual air consumption 624 l/mn 22.048 cfm
Air inlet thread size 1/4 "
Average air consumption 312 l/mn 11.024 cfm
Box dimensions 353X173x63 mm
Collet size 6.35 mm 1/4 "
Free speed 40000 rpm
Free speed air consumption 7 l/s 14.8 cfm
Length 169 mm 6.6 "
Min. hose size 8 mm 5/16 "
Net weight 0.38 kg 0.83 lb
Power 375 W 1/2 hp
Rear exhaust yes
Sound Power 92.2 db(A)
Sound pressure 81.2 db(A)
Vibration <2.5 m/s²
Vibration ISO ISO-28927-12



(CP3019-40)

Brand Chicago Pneumatic
Shipping Cubic 0.001690000m3
