Chicago Pneumatic CP714 Super Duty Pistol Grip Chipping Hammer 2000 Bpm
Model : #CP714
Share This Item:

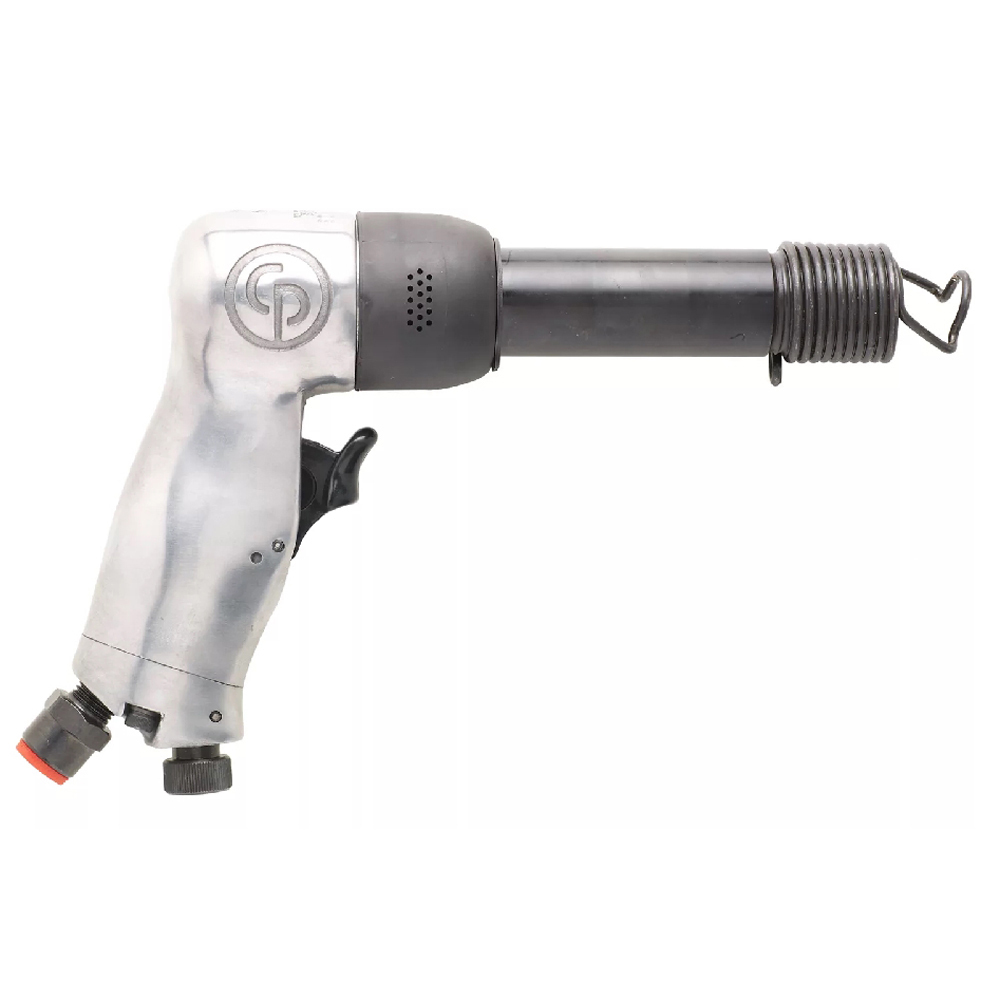

Chicago Pneumatic CP714 Super Duty Pistol Grip Chipping Hammer
Features & Benefits
- Heavy duty pistol grip hammer
- Positive action trigger for precise control
- Speed regulator
- Ergonomic oriented handle
- High durability
- Operator comfort
- Versatile, handling different type of environments
Specifications
Metric | Imperial | |
---|---|---|
Model | CP714 | |
Part number | T012735 | |
Actual air consumption | 241 l/mn | 8.5 cfm |
Air inlet thread size | 1/4 " | |
Average air consumption | 60 l/mn | 2.13 cfm |
Blows per minute | 2000 | |
Bore | 14 mm | 9/16 " |
Chisel rivet set shank | 10.2 mm | 0.401 " |
Cold rivet capacity | 6.4 mm | 1/4 " |
Cold rivet capacity (steel) | 4.8 mm | 3/16 " |
Length | 190 mm | 7.5 " |
Min. hose size | 10 mm | 3/8 " |
Net weight | 1.51 kg | 3.33 lb |
Power (Joules) | 4.7 joule | |
Shank | Round | |
Sound DBA pressure | 95 db(A) | |
Sound Power | 102.5 db(A) | |
Sound pressure | 91.5 db(A) | |
Sound uncertainty | 3 db(A) | |
Stroke | 80 mm | 3.5 " |
Vibration | 16.2 m/s² | |
Vibration ISO | ISO-28927-9 | |
Vibration uncertainty (K) | 5.8 m/s² |
(CP714)
Brand | Chicago Pneumatic |
Shipping Cubic | 0.001900000m3 |
