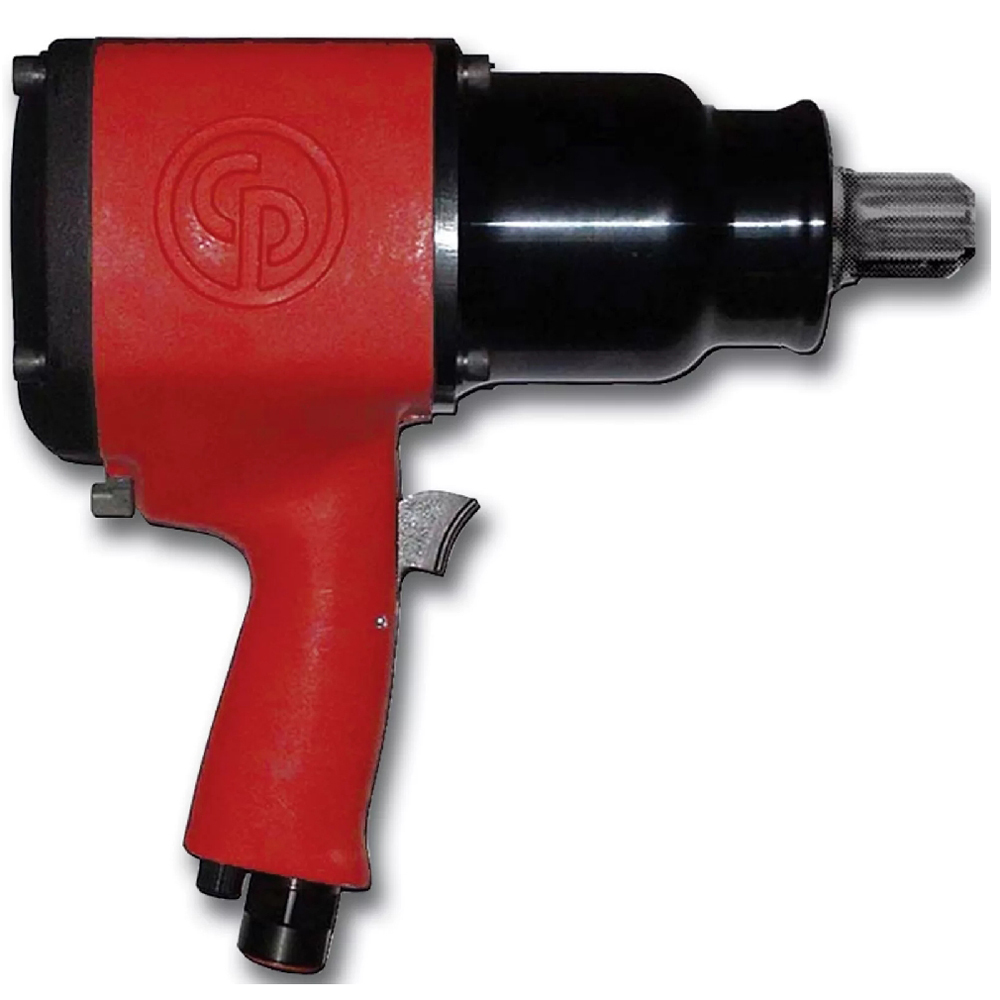

Chicago Pneumatic CP0611P-RS Super Duty Pistol Grip Impact Wrench

Ideal for Heavy Industrial Maintenance and Production applications.


Features

  • Super Industrial 1" impact wrench
  • Reliable 2-jaw clutch
  • Aluminum body & steel clutch housing
  • Protective & Durable reverse
  • Compact 3-part construction & easy maintenance
  • Hole type socket retainer with O-ring
  • 360° adjustable D-type side handle


Specifications

  Metric Imperial
Model CP0611P RS
Part number 6151590050
Actual air consumption 22.6 l/s 48 cfm
Air inlet thread size 1/2 "
Blows per minute 1020
Bolt size M36 mm
Clutch type 2-jaw clutch
European Standards EN ISO 11148-6:2013
Free speed 3500 rpm
Handle type Pistol
Length 272 mm 10.7 "
Maximum Torque (reverse) 3790 Nm 2800 ft.lbs
Net weight 10.5 kg 23.1 lb
Power/weight ratio 361 Nm/kg 121.2 ft.lb/lb
Side to center 46 mm 1.81 "
Socket retainer Hole
Sound Power 113 db(A)
Sound pressure 102 db(A)
Square drive 1 "
Vibration 16.8 m/s²
Vibration ISO ISO-28927-2
Vibration uncertainty (K) 4.7 m/s²
Working Torque Range (fwd) 1,220 - 2,440 Nm 900 - 1,800 ft.lbs



(CP0611P-RS)

Brand Chicago Pneumatic
Shipping Cubic 0.002720000m3
