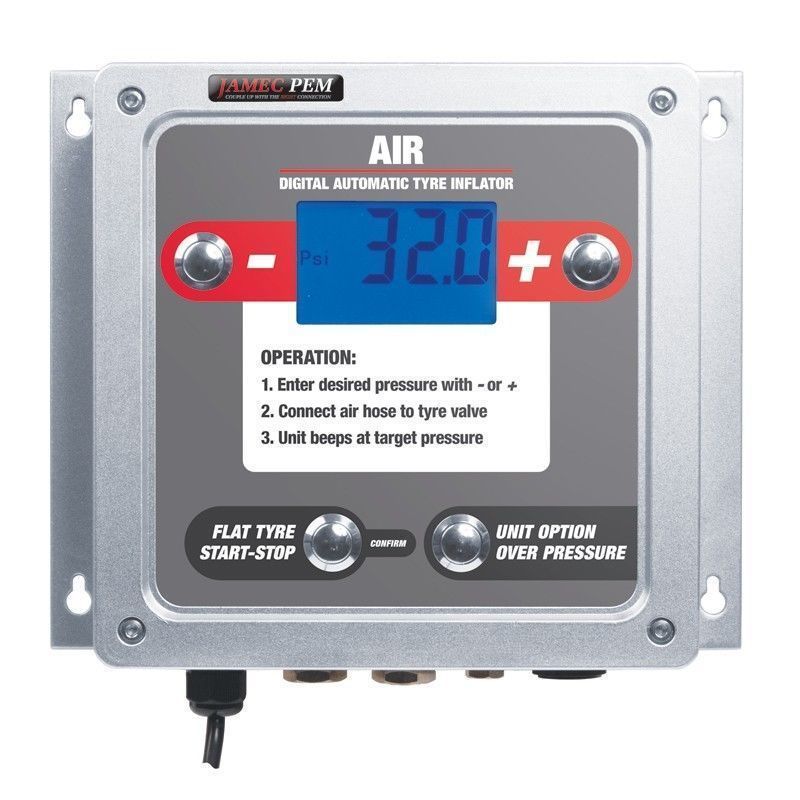

Jamec Pem JA11.0545 Digital Preset Automatic Wall Mounted Tyre Inflator

This robust die cast aluminium housed digital auto inflator is simple to use with plug and play design, just pre-set the required pressure, place the chuck on the tyre valve and the built-in auto start inflates/deflates the tyre to the specified pressure.


  • Standard inflate/deflate (auto)
  • Over pressure for tyre shops; where new tyres are fitting and you need to ensure that the tyre inflates to a pressure where the tyre seats properly on the rim then deflates automatically to the required pre-set pressure
  • Flat tyre; where there is no residual tyre pressure in the tyre the inflator does not automatically start so a manual override is required to fill flat tyres.


  • Aluminium die cast housing
  • Supplied with calibration certificate, accuracy exceeds EC Directive 86/217
  • Includes Nitto equivalent adaptor
  • Ideal for forecourts, industrial, mechanical workshops, tyre store
  • Mechanical anti-vandal buttons
  • IP56 rated for indoor and outdoor use
  • Large backlit LCD display with audible warning
  • Comprehensive diagnostics and error reporting
  • Inflates accurately with hoses up to 50 m long


Reader unit Digital display, audible warning
Chuck type Clip on
Chuck style Single straight
Scale 1200 kPa, 174 p.s.i., 12 bar, 0-12 kg/cm²
Inlet size 1/4 " BSP female
Hose length 7.5m
Dimension 230 L x 278 W x 85 H mm
Weight 5.5kg
Accuracy ± 0.3 p.s.i. @ 25-75 p.s.i.
Operation  Auto inflate, deflate
Supply pressure max 182 p.s.i.
Advised application Forecourt, industrial, workshops
Supply voltage 240 V AC (50-60 Hz) -
Also available 12 Volt version for portable use Part No: 11.0545-12V
Wattage 12 W max
Working temperature -10 +50º C
Humidity range Up to 95% RH non condensing
Inflation flow 3000 L/min @ 182 p.s.i.


Please note that this is Professional Workshop Equipment which is also used by DIY and Hobbyists alike. It requires a source of air in order for it to inflate. It does not self-inflate like some non-professional equipment in the market.


This item attracts a 1 Year Manufacturer's Warranty
