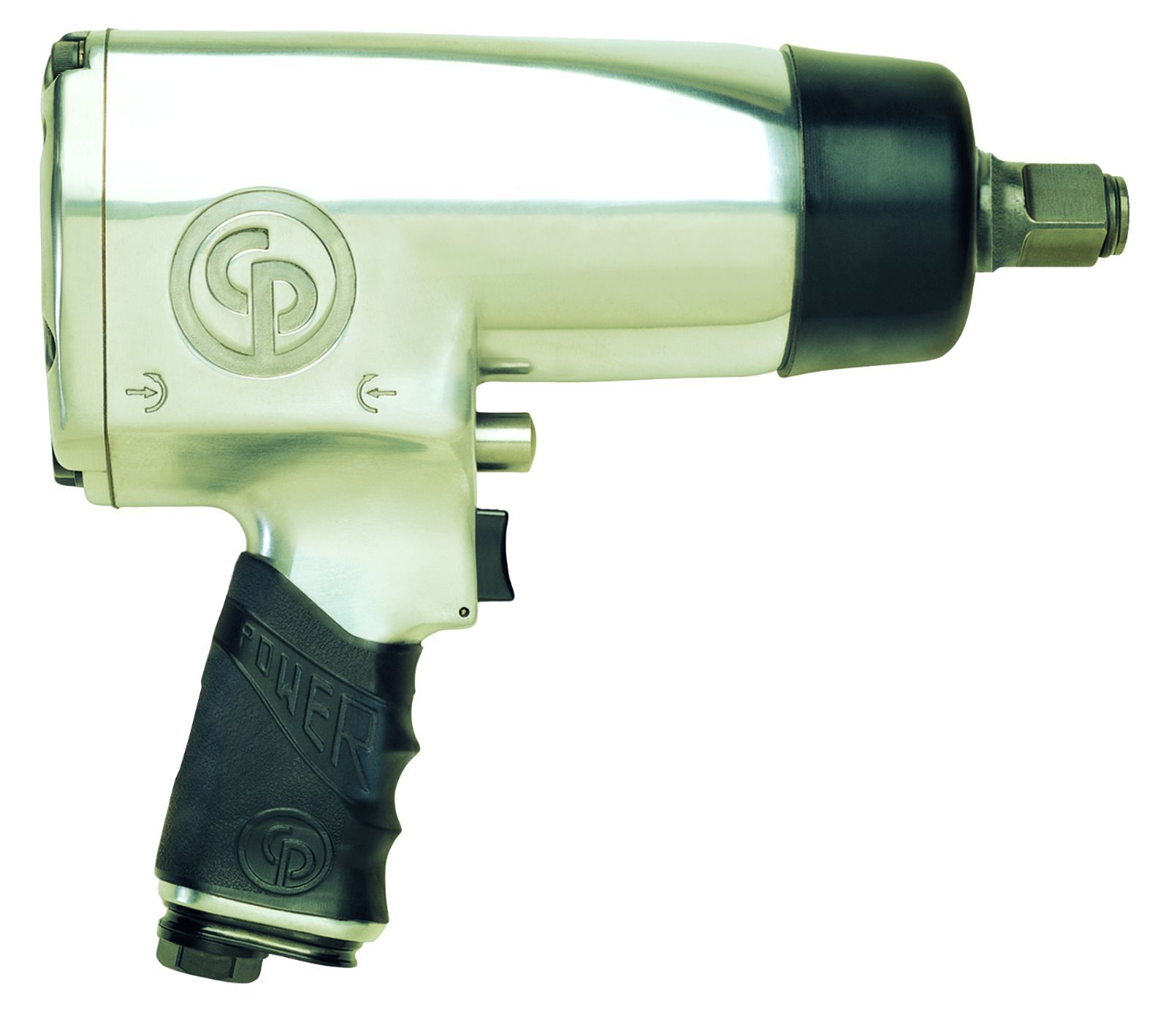

Chicago Pneumatic CP772H Pistol Grip Impact Wrench


Features

  • 3/4" impact wrench with ring retainer
  • DYNA-PACT oil bath clutch
  • Single-handed reverse button with 4 settings of power
  • Comfortable handle grip
  • 360° air inlet swivel


Specifications

Part number T024598
Length 245 mm 9.63"
Net weight 4.76 kg 10.5 lb
Side to centre 25 mm 1"
Average air consumption 2.8 l/s 6 cfm
Actual air consumption 11.3 l/s 24 cfm
Air inlet thread size 3/8 "
Min. hose size 13 mm 1/2"
Sound pressure 96 db(A)
Sound Power 107 db(A)
Vibration ISO ISO-28927-2
Vibration 5.8 m/s²
Vibration uncertainty (K) 2 m/s²
Handle type Pistol
Square drive 3/4"
Working Torque Range (fwd) 203 - 949 Nm 150 - 700
Maximum Torque (reverse) 1356 Nm 1000 ft.lbs
Free speed 4200 rpm
Blows per minute 900
Power/weight ratio 284.9 Nm/kg 95.2 ft.lb/lb
VST2 11
Socket retainer Friction ring
Clutch type Pin clutch - Oil bath



(CP772H)

Barcode # 15451418120
Brand Chicago Pneumatic
Shipping Cubic 0.002450000m3
