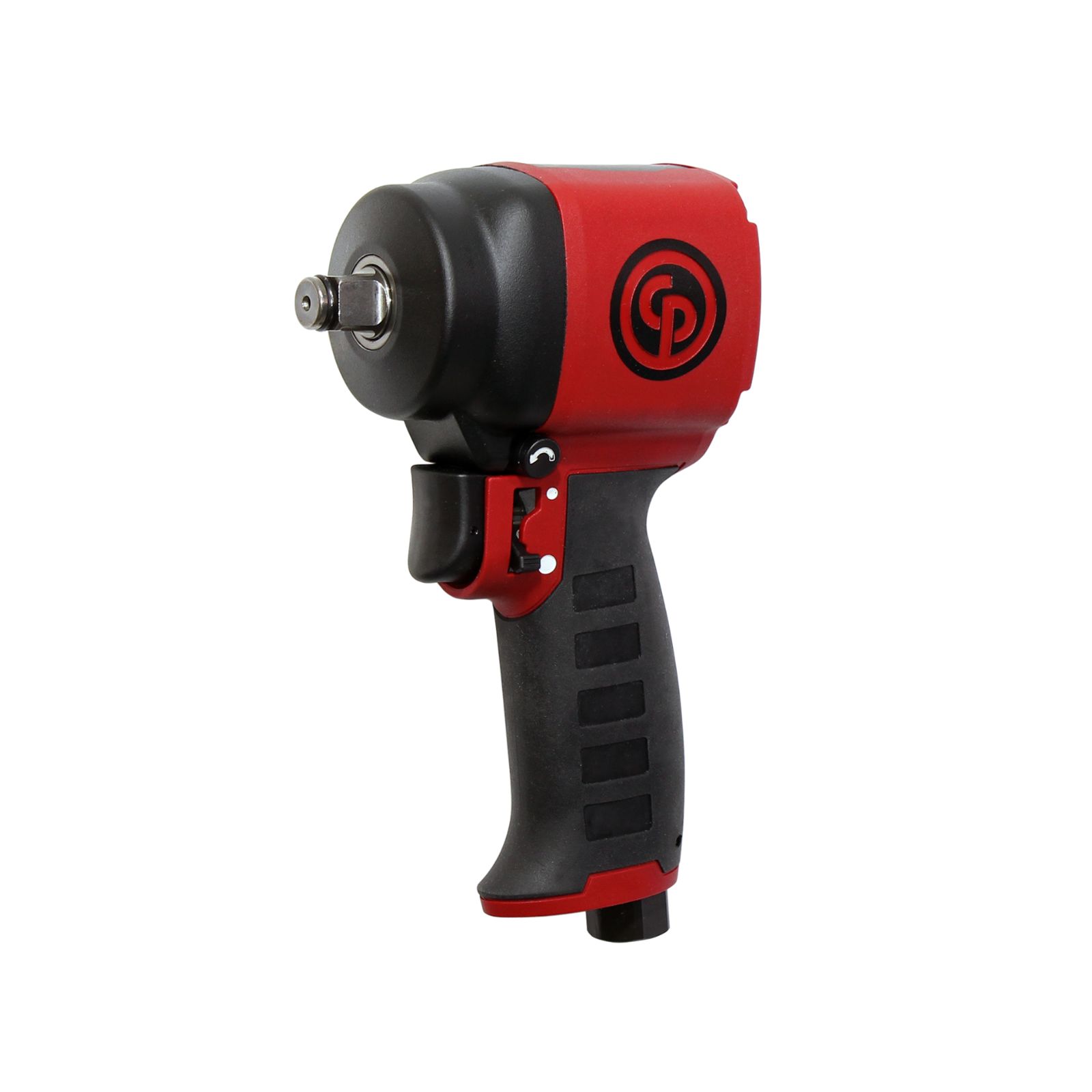

Chicago Pneumatic CP7732C Ultra Compact Pistol Grip Impact Wrench


Features

  • 2.1 lbs. – 1.0 Kg
  • 460 ft.lbs - 625 Nm of maximum torque in reverse
  • 4 1/4 in – 108 mm length
  • Jumbo hammer mechanism
  • Steel motor
  • Aluminum clutch housing
  • Composite housing with curved handle with Thermo-Plastic Rubber injected
  • S2S: 1 hand Forward – Reverse operation
  • New power setting system: 1 hand-operation behind the trigger
  • 2 positions in reverse: max and lower torque
  • 2 positions in forward: max and low torque
  • Socket retainer ring
  • Full teasing trigger


Specifications

Part number 8941077321
Length 108 mm 4.3"
Net weight 1 kg 2.2 lb
Side to center 32 mm 1.26"
Average air consumption 2.6 l/s 5 1/2 cfm
Actual air consumption 10.2 l/s 22 cfm
Free speed air consumption 14.6 l/s
Air inlet thread size 1/4 "
Min. hose size 10 mm 3/8"
Sound pressure 95.5 db(A)
Sound Power 106.5 db(A)
Vibration ISO ISO-28927-2
Vibration 10.8 m/s²
Vibration uncertainty (K) 1.42 m/s²
Handle type Pistol
Square drive 1/2"
Working Torque Range (fwd) 70 - 387 Nm 52 - 285
Maximum Torque (reverse) 625 Nm 460 ft.lbs
Free speed 9410 rpm
Blows per minute 1400
Socket retainer Friction ring
Clutch type Jumbo



(CP7732C)

Barcode # 15451761844
Brand Chicago Pneumatic
Shipping Cubic 0.001080000m3
