Chicago Pneumatic CP7779 Pistol Grip Impact Wrench 1" 1950Nm S2S Technology
Model : #CP7779
Share This Item:

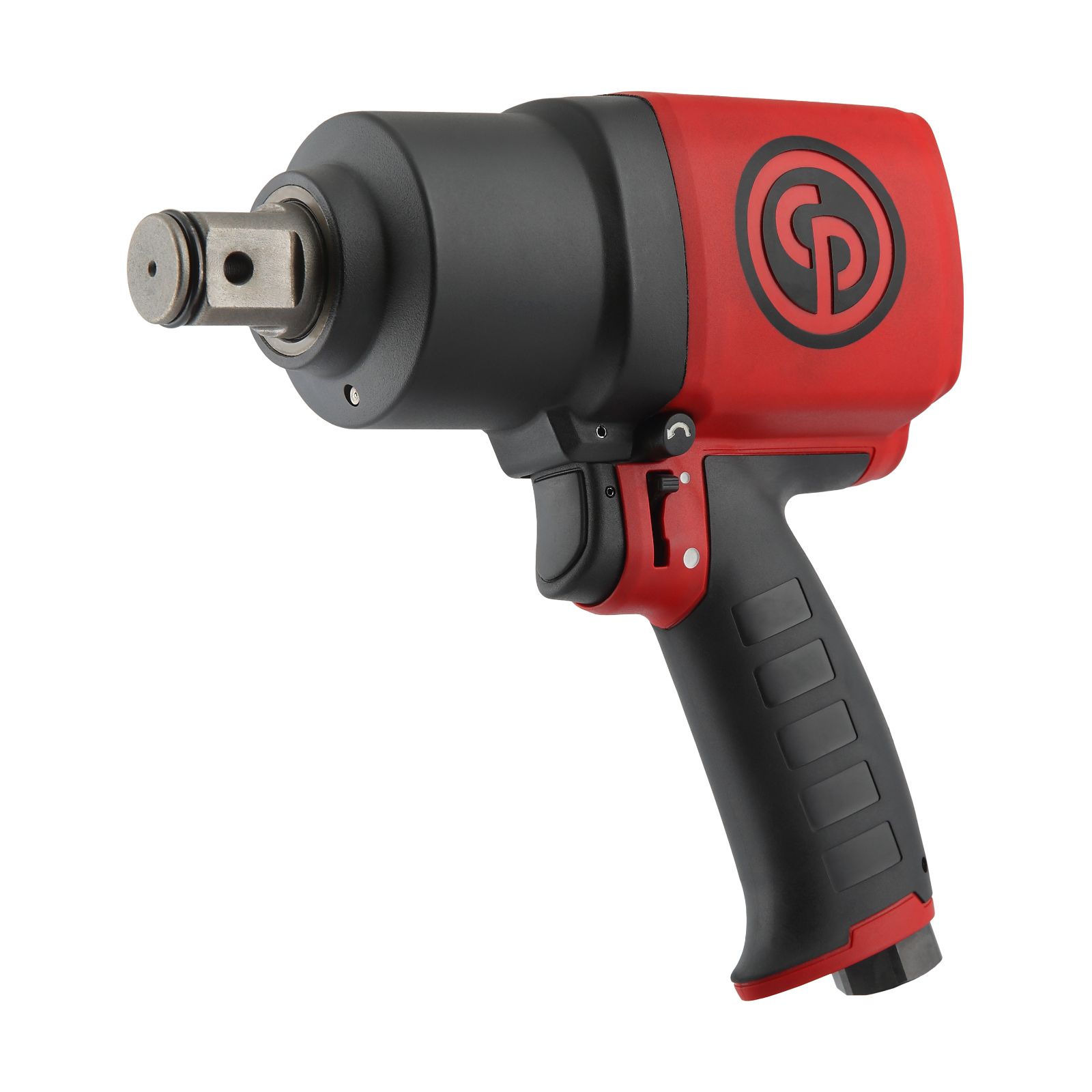

Chicago Pneumatic CP7779 Pistol Grip Impact Wrench
Features
- Length = 8.1 in. / 205 mm
- All controls within reach
- Variable speed trigger
- One-hand power adjustment
- One-hand reverse system
- 1440 ft.lbs / 1950 Nm of maximum torque
- Composite motor housing
- Twin hammer mechanism
- 360° swivel air inlet
- Socket retainer ring combined with hole retainer
Specifications
Part number | 8941077791 | |
Length | 205 mm | 8.1" |
Net weight | 3.3 kg | 7.2 lb |
Height | 220 mm | 8.7" |
Width | 84 mm | 3.3" |
Series Alphacode | D | |
Average air consumption | 4.8 l/s | 10.1 cfm |
Actual air consumption | 19.1 l/s | 40.3 cfm |
Air inlet thread size | 3/8 " | |
Min. hose size | 13 mm | 1/2" |
Sound pressure | 96.8 db(A) | |
Sound Power | 107.8 db(A) | |
European Sound standard | ISO 15744 | |
Vibration ISO | Vibration ISO | |
Vibration | 12.97 m/s² | |
Vibration uncertainty (K) | 1.5 m/s² | |
Handle type | Pistol | |
Square drive | 1" | |
Working Torque Range (fwd) | 407 - 1464 Nm | 300 - 1080 |
Maximum Torque (reverse) | 1950 Nm | 1440 ft.lbs |
Free speed | 6500 rpm | |
Blows per minute | 1200 | |
Power/weight ratio | 590.91 Nm/kg | 200 ft.lb/lb |
Socket retainer | Dual (hole+friction) | |
Clutch type | Twin hammer | |
European Directives | 2006/42/EC (17/05/2006) | |
European Standards | EN ISO 11148-6:2012 |
(CP7779)
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002050000m3 |
