CP797-6 Straight Case Impact Wrench 1" Drive With 6" Extended Anvil 1898Nm
Model : #CP797-6
Share This Item:

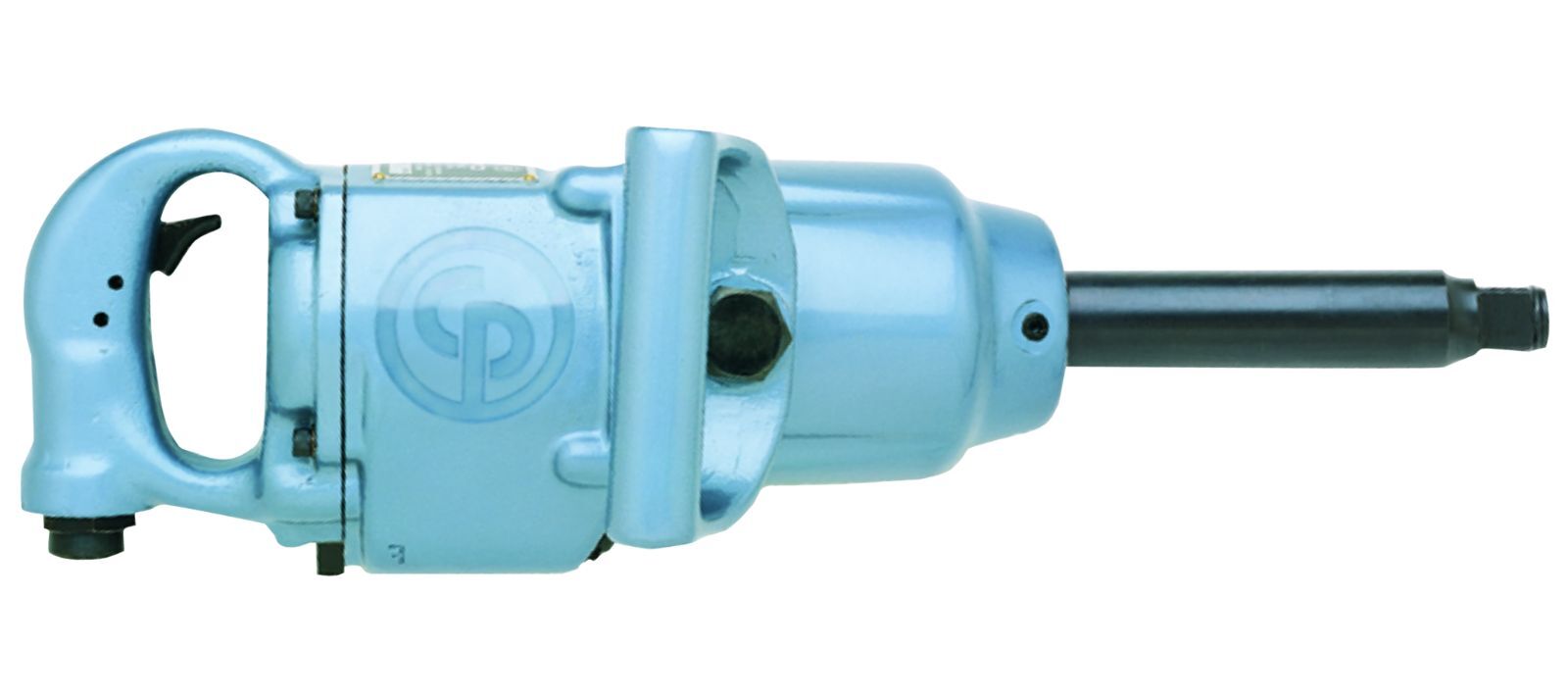

Chicago Pneumatic CP797-6 1" Straight Case Impact Wrench
Ideal for high volume work on trucks, buses, and heavy equipment.
Features
- 1" straight impact wrench
- Rocking dog clutch
- High performance and durability
- Teasing throttle
- Convenient reverse valve
- Plus 6" extended anvil
Specifications
Part Number | T013901 | |
Length | 565 mm | 22.25" |
Net weight | 13.49 kg | 29.75 lb. |
Average air consumption | 4.7 l/s | 10 cfm |
Actual air consumption | 18.9 l/s | 40 cfm |
Air inlet thread size | 1/2" | |
Minimum hose size | 13 mm | 1/2" |
Sound pressure | 110db(A) | |
Sound power | Sound power | |
Vibration ISO | ISO-28927-2 | |
Vibration | 12.8 m/s² | |
Vibration uncertainty | 4.3 m/s² | |
Handle type | D-Handle Inside Trigger | |
Square drive | 1" | |
Working torque | 200 - 1,225 Nm | 150 - 900 |
Maximum torque | 1898 Nm | 1400 ft. lbs |
Free speed | 4200rpm | |
Blow per minute | 1080 | |
Power/weight ratio | 140.7 Nm/kg | 47.1 ft.lb/lb |
Socket retainer | Friction ring | |
Clutch type | Double rocking dog - Oil bath |
(CP797-6)
Barcode # | 15451009298 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.005650000m3 |
