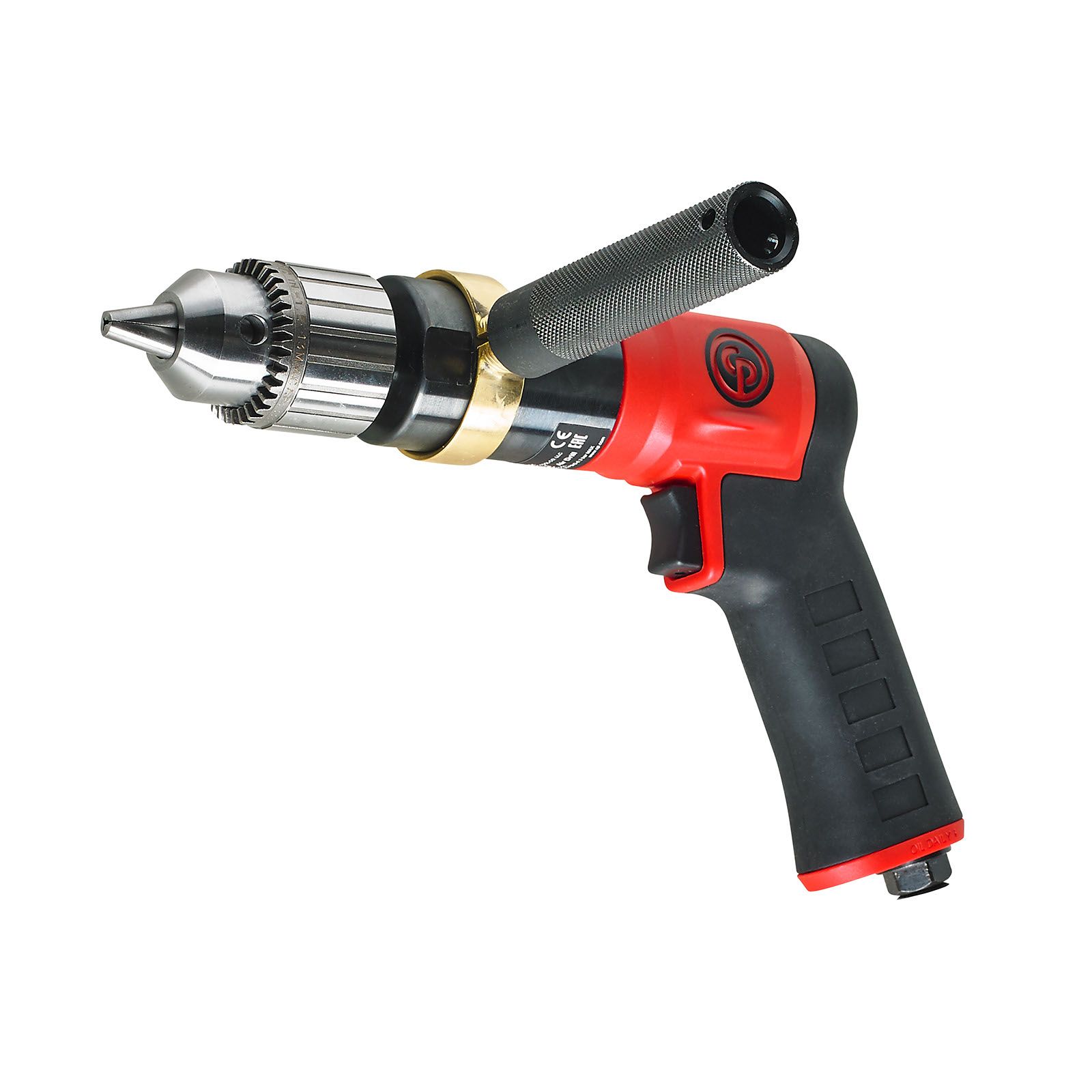

CP9286C Pistol Grip Drill 1/2" 13mm Key Chuck Non Reversible 600 rpm
Model : #CP9286C
Share This Item:
Chicago Pneumatic CP9286C Pistol Grip Drill 1/2" 13mm Key Chuck
Features
- Composite housing with thermoplastic rubber handle grip
- Wings on right & left sides to guide the forefinger
- Large teasing trigger and progressive valve allowing more control to start holes
- Low speed gear box
- Flat back part for better pushing action while drilling and tapping
- Handle exhaust allowing the air to flow away from the operator
- Supplied with high quality industrial Jacobs® chucks for longer use
- Keyed Metal
- Excellent for drilling, honing, reaming and hole sawing
Specifications
Part Number | 8941092860 | |
Length | 250mm | 9.8" |
Net weight | 1.49kg | 3.3lb |
Height | 150mm | 5.9" |
Side to centre | 51mm | 2" |
Average air consumption | 3.25l/s | 6.9cfm |
Actual air consumption | 11l/s | 24cfm |
Free speed air consumption | 13l/s | 27.5cfm |
Air inlet thread size | 1/4" | |
Min. hose size | 10mm | 3/8" |
Sound pressure | 84.2db(A) | |
Sound power | 95.2db(A) | |
European sound standard | ISO 15744 | |
Vibration ISO | ISO-28927-5 | |
Vibration | <2.5m/s² | |
European directives | 2006/42/EC (17/05/2006) | |
European standards | EN ISO 11148-3:2012 | |
Chuck capacity | 13mm | 1/2" |
Free speed | 600rpm | |
Power | 360W | 1/2hp |
Stall torque | 22Nm | 16.2ft.lbs |
(CP9286C)
