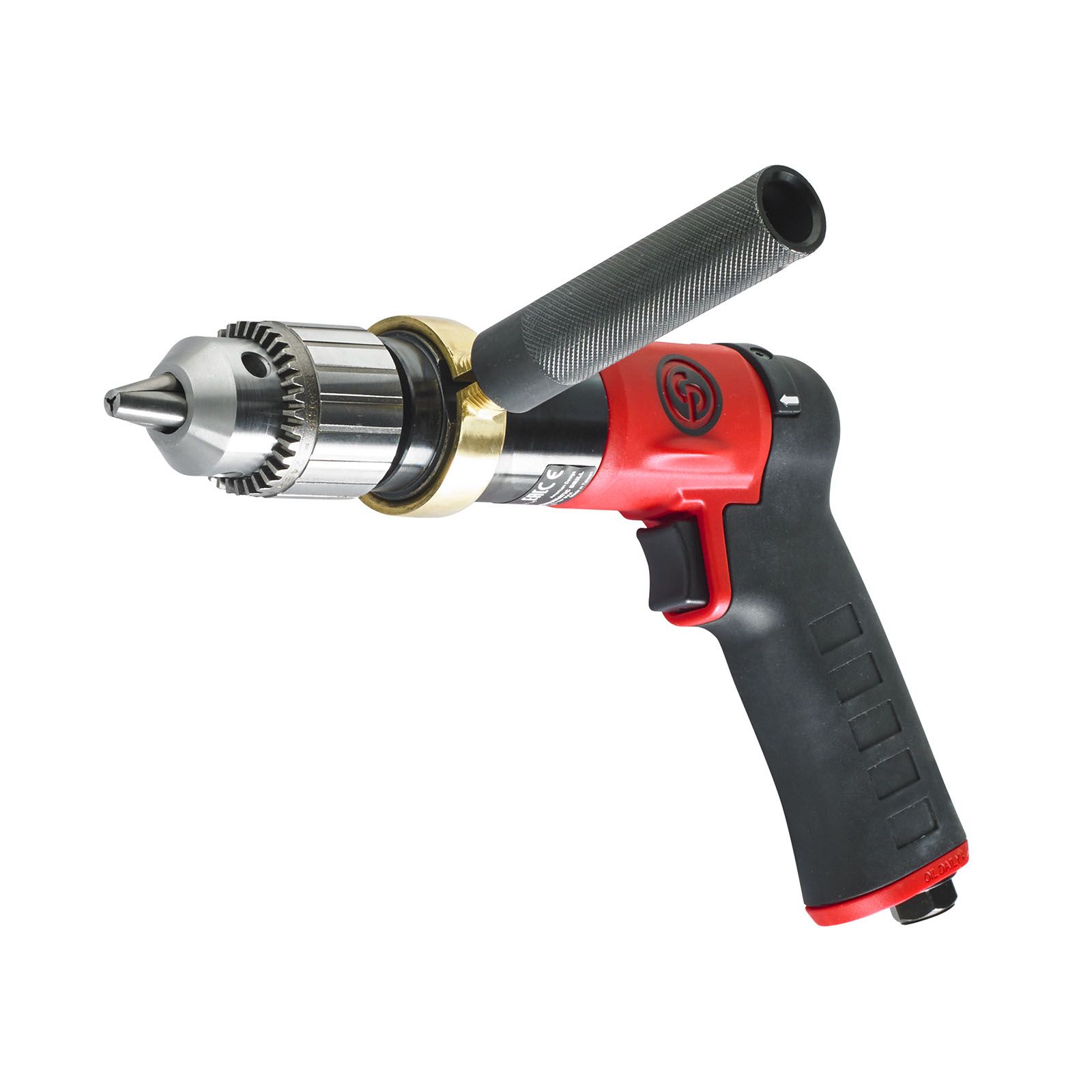

Chicago Pneumatic CP9789C Pistol Grip Drill 1/2" 13mm Key Chuck


  • Composite housing with thermoplastic rubber handle grip
  • Wings on right & left sides to guide the forefinger
  • Large teasing trigger and progressive valve allowing more control to start holes
  • Low speed gear box
  • Flat back part for better pushing action while drilling and tapping
  • Reverse lever on the top for easier access
  • handle exhaust allowing the air to flow away from the operator
  • Supplied with high quality industrial Jacobs® chucks for longer use
  • Keyed Metal
  • Excellent for drilling, honing, reaming and hole sawing


Part Number 8941097890
Length 265mm 10.4"
Net weight 1.4kg 3.1lb
Height 150mm 5.9"
Side to centre 49mm 1.9"
Average air consumption 3.25l/s 6.9cfm
Free speed air consumption 13l/s 27.5cfm
Air inlet thread size 1/4"
Min. hose size 10mm 3/8"
Sound pressure 88.3db(A)
Sound power 99.3db(A)
European sound standard ISO 15744
Vibration ISO ISO-28927-5
Vibration <2.5m/s²
European directives 2006/42/EC (17/05/2006)
European standards EN ISO 11148-3:2012
Chuck capacity 13mm 1/2"
Free speed 840rpm
Power 350W 1/2hp
Stall torque 14Nm 10.3ft.lbs



Barcode # 15451777500
Brand Chicago Pneumatic
Shipping Cubic 0.002650000m3
