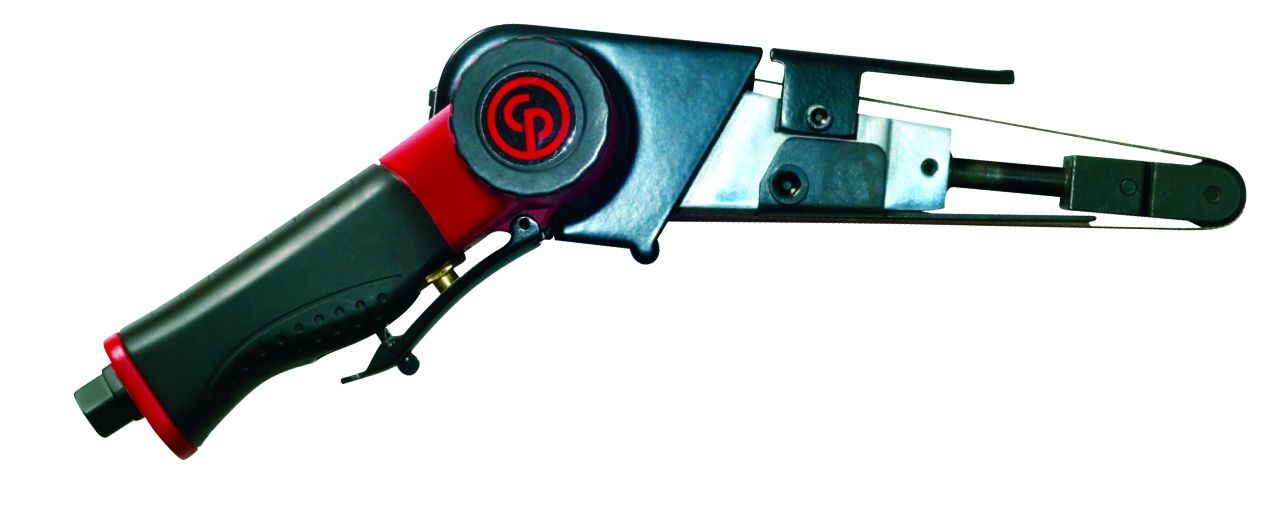

CP9780 Belt Sander, 20x520mm Belt, 20000 rpm Chicago Pneumatic

Excellent for paint removal, smoothing and rust removal in limited space applications.


Features:

  • Quick-change belt replacement
  • Rubber molded grip
  • Adjustable sanding arm
  • 3/4" (20 mm) capacity
  • Handle exhaust and swivel air inlet


Specifications:

  • Part Number: 6151939780
  • Length: 380 mm / 15 "
  • Net Weight: 1.5 kg / 3.3 lb
  • Average Air Consumption: 7.1 l/s / 15 cfm
  • Actual Air Consumption: 14.1 l/s / 30 cfm
  • Actual Air Consumption: 849 l/mn / 30 cfm
  • Free Speed Air Consumption: 6.9 l/s / 14.6 cfm
  • Air Inlet Thread Size: 1/4 "
  • Min. Hose Size: 10 mm / 3/8 "
  • Sound Pressure: 90.5 dB(A)
  • Sound Power: 101.5 dB(A)
  • Vibration ISO: ISO-28927-3
  • Vibration: <2.5 m/s²
  • Paper Size: 20 x 520 / 3/4 x 20-1/2
  • Free Speed: 20000 rpm
  • Power: 380 W / 0.51 hp
  • Pad Diameter: 20 x 520 / 3/4 x 20-1/2



(CP9780)

Barcode # 15451688424
Brand Chicago Pneumatic
Shipping Cubic 0.003800000m3
