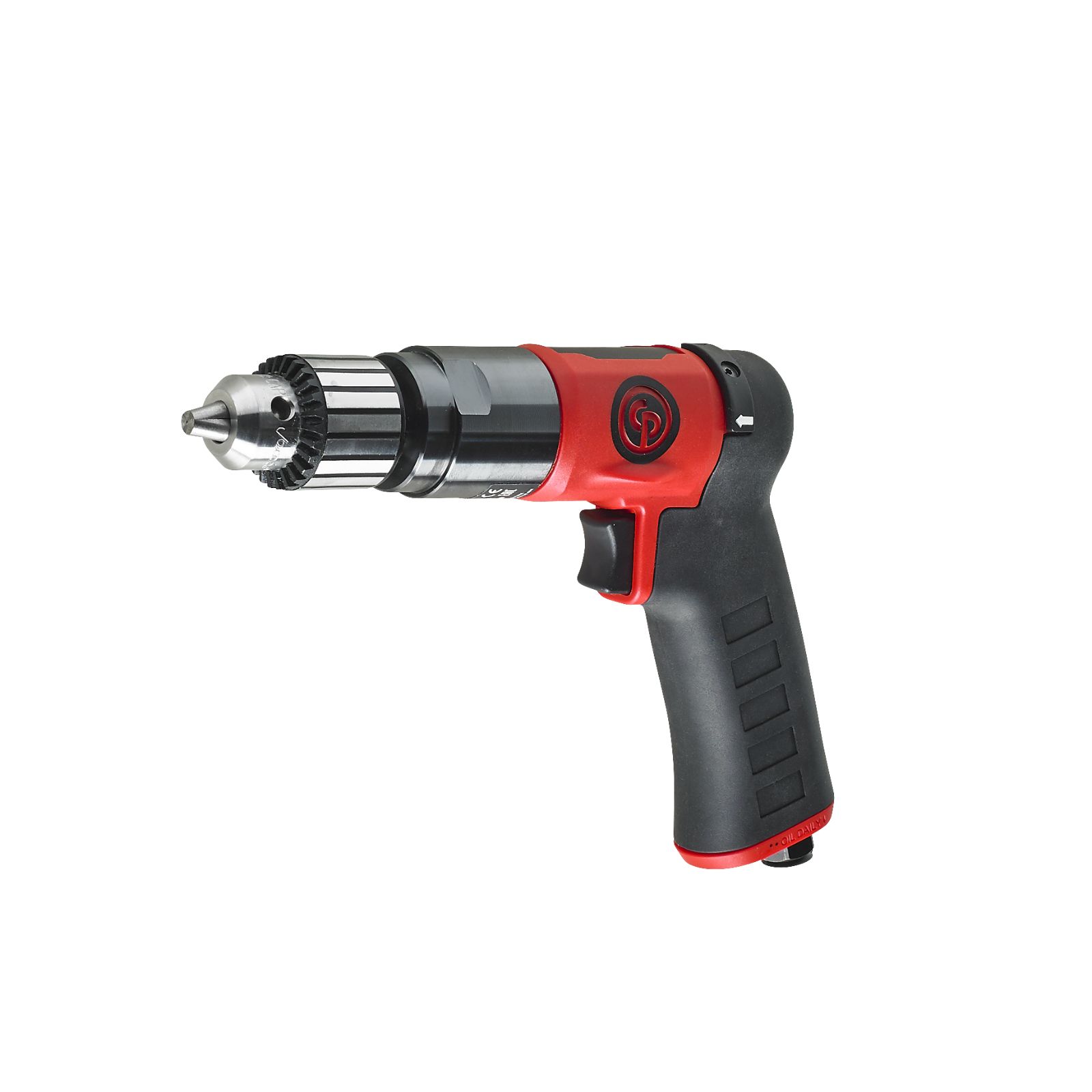

Chicago Pneumatic CP9790C Pistol Grip Drill 3/8" 10mm Key Chuck


Features

  • Composite housing with thermoplastic rubber handle grip
  • Wings on right & left sides to guide the forefinger
  • Large teasing trigger and progressive valve allowing more control to start holes
  • Low speed gear box
  • Flat back part for better pushing action while drilling and tapping
  • Reverse lever on the top for easier access
  • handle exhaust allowing the air to flow away from the operator
  • Supplied with high quality industrial Jacobs® chucks for longer use
  • Keyed metal
  • Excellent for drilling, honing, reaming and hole sawing


Specifications

Part Number 8941097900
Length 235mm 9.3"
Net weight 1.1kg 2.4/2lb
Height 150mm 5.9"
Side to centre 49mm 1.9"
Average air consumption 3.25l/s 6.9cfm
Free speed air consumption 13l/s 27.5cfm
Air inlet thread size 1/4"
Min. hose size 10mm 3/8"
Sound pressure 87.1db(A)
Sound power 98.5db(A)
European sound standard ISO 15744
Vibration ISO ISO-28927-5
Vibration <2.5m/s²
European directives 2006/42/EC (17/05/2006)
European standards EN ISO 11148-3:2012
Chuck capacity 10mm 3/8"
Free speed 2100rpm
Power 360W 1/2hp
Stall torque 5.5Nm 4.1ft.lbs



(CP9790C)

Barcode # 15451777463
Brand Chicago Pneumatic
Shipping Cubic 0.002350000m3
