3/4" Drive Size Impact Wrench Pistol Grip with 6" Extended Anvil 1627Nm CP7763-6
Model : #CP7763-6
Share This Item:

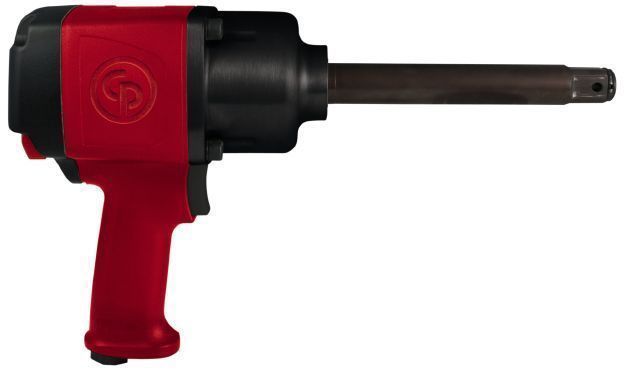

Chicago Pneumatic CP7763-6 Pistol Grip Impact Wrench
- Ideal for spring work, pinion nut, tractor pad removal, truck tire work, and major engine teardowns
- Powerful motor and durable clutch
- Operator comfort
Features
- 3/4" impact wrench with 6" extended anvil (ring socket retainer)
- Twin hammer clutch
- High power: 1,200 ft.lbs (1,627 Nm)
- Combined power regulator with forward/reverse
Benefits
- Ideal for General Maintenance applications
- Powerful motor and durable clutch
- Operator comfort
Specifications
Square drive | 3/4" | |
Working Torque Range (fwd) | 136-1,288 Nm | 100-950 |
Maximum Torque (reverse) | 1630 Nm | 1200 ft.lbs |
Free speed | 6300 rpm | |
Blows per minute | 900 | |
Net weight | 6.28 kg | 13.85 lb |
Power/weight ratio | 259.6 Nm/kg | 86.6 ft.lb/lb |
Length | 381 mm | 15" |
Side to center | 45 mm | 1.8" |
Average air consumption | 3.5 l/s | 7.5 cfm |
Actual air consumption | 14.2 l/s | 30 cfm |
Air inlet thread size | 0.375 " | |
Min. hose size | 13 mm | 1/2" |
Sound pressure | Sound pressure | |
Sound Power | 107 db(A) | |
Vibration (ISO-8662-7) | 9 m/s² | |
Vibration α (ISO-28927-2) | 10.4 m/s² | |
Vibration K (ISO-28927-2) | 4.2 m/s² | |
Socket retainer | Dual (hole+friction) | |
Clutch type | Twin hammer |
This item attracts 1 Year Manufacturer's Warranty.
(CP7763-6)
Barcode # | 15451566166 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.003810000m3 |
Unit Of Measure | ea |
