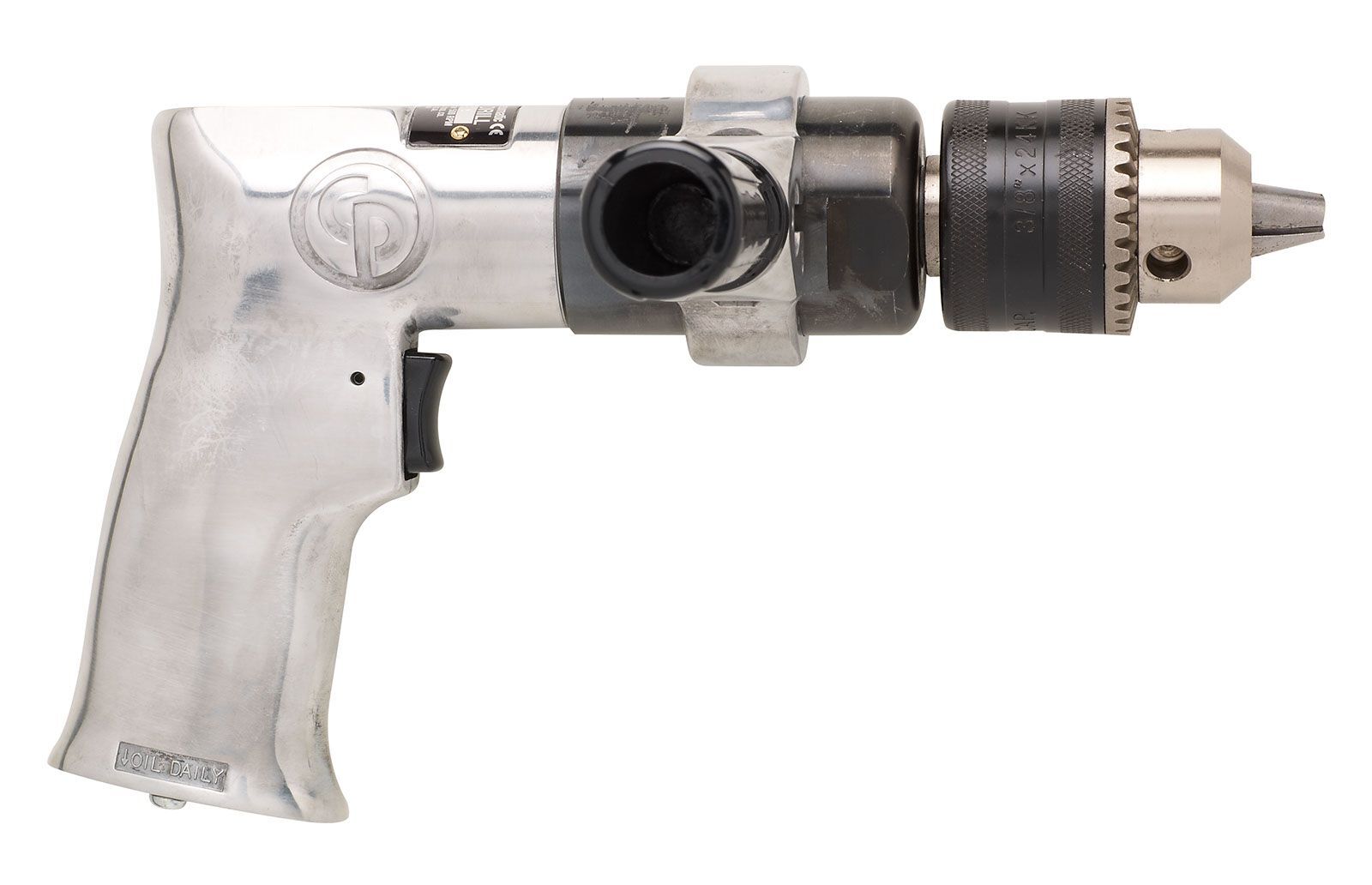

Chicago Pneumatic CP785H 1/2" Pistol Grip Drill

A suitable tool for various applications of low speed drilling. Industrial maintenance duty and designed for smooth operation and extended tool life.


  • 1/2" (13 mm) pistol drill
  • Powerful energy efficient motor resist stalls
  • Side handle for comfort and control


Part Number T024134
Length 197mm 7.8"
Net weight 1.36kg 3lb
Average air consumption 1.9l/s 4.1cfm
Average air consumption 117l/mn 4.1cfm
Actual air consumption 6l/s 12cfm
Actual air consumption 340l/mn 12cfm
Free speed air consumption 15l/s 31.7796610169492cfm
Air inlet thread size 1/4"
Min. hose size 10mm 3/8"
Sound pressure 96db(A)
Sound power 107db(A)
Vibration ISO ISO-28927-5
Vibration <2.5m/s²
Vibration uncertainty (K) - m/s²
Chuck capacity 13mm 1/2"
Free speed 500rpm
Power 375W 1/2hp
Stall torque 15.4Nm 11.3ft.lbs



Barcode # 15451400187
Brand Chicago Pneumatic
Shipping Cubic 0.001970000m3
