CP797 Straight Case Impact Wrench 1" Drive 1898Nm Friction Ring Hole Retainer
Model : #CP797
Share This Item:

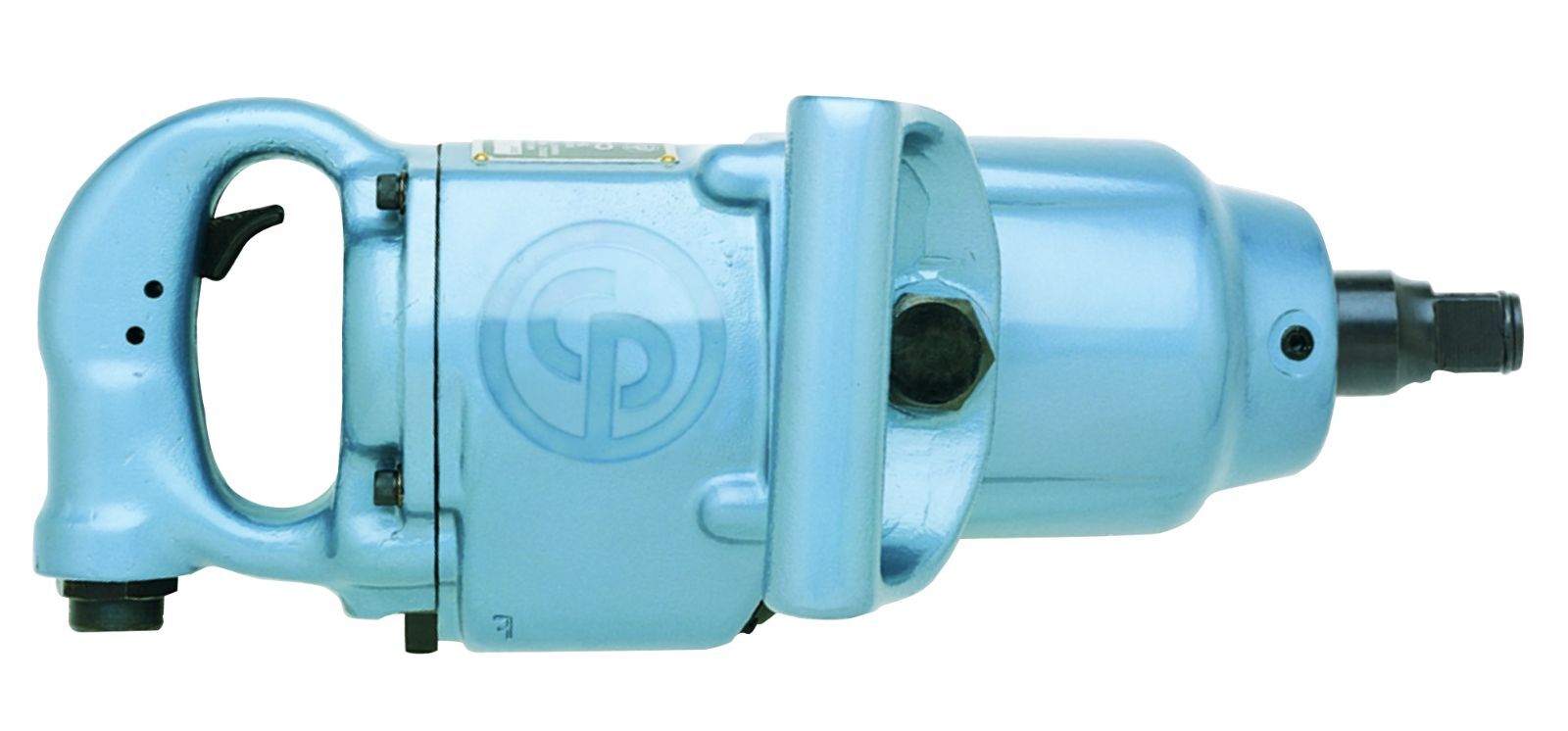

Chicago Pneumatic CP797 1" Straight Case Impact Wrench
Ideal for high volume work on trucks, buses, and heavy equipment.
Features
- 1" straight impact wrench
- Rocking dog clutch
- High performance and durability
- Teasing throttle
- Convenient reverse valve
Specifications
Part Number | T019139 | |
Length | 394 mm | 15.5" |
Net weight | 12.25 kg | 27 lb. |
Average air consumption | 4.7 l/s | 10 cfm |
Actual air consumption | 28.2 l/s | 60cfm |
Air inlet thread size | 1/2" | |
Minimum hose size | 133 mm | |
Sound pressure | 110 db(A) | |
Sound power | 121 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 12.8 m/s² | |
Vibration uncertainty | 4.3 m/s² | |
Handle type | D-handle inside trigger | |
Square drive | 1" | |
Working torque | 203 - 1,220 Nm | 150 - 900 |
Maximum torque | 1898 Nm | 1400 ft. lbs |
Free speed | 4200 rpm | |
Blow per minute | 1080 | |
Power/weight ratio | 154.9 Nm/kg | 51.9 ft.lb/lb |
Socket retainer | Dual (hole+friction) | |
Clutch type | Double rocking dog - Oil bath | |
European directives | 2006/42/EC (17/05/2006) |
(CP797)
Barcode # | 15451014858 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.003940000m3 |
