CP9792C Pistol Grip Drill 3/8" 10mm Keyless Chuck Reversible 2100 rpm
Model : #CP9792C
Share This Item:

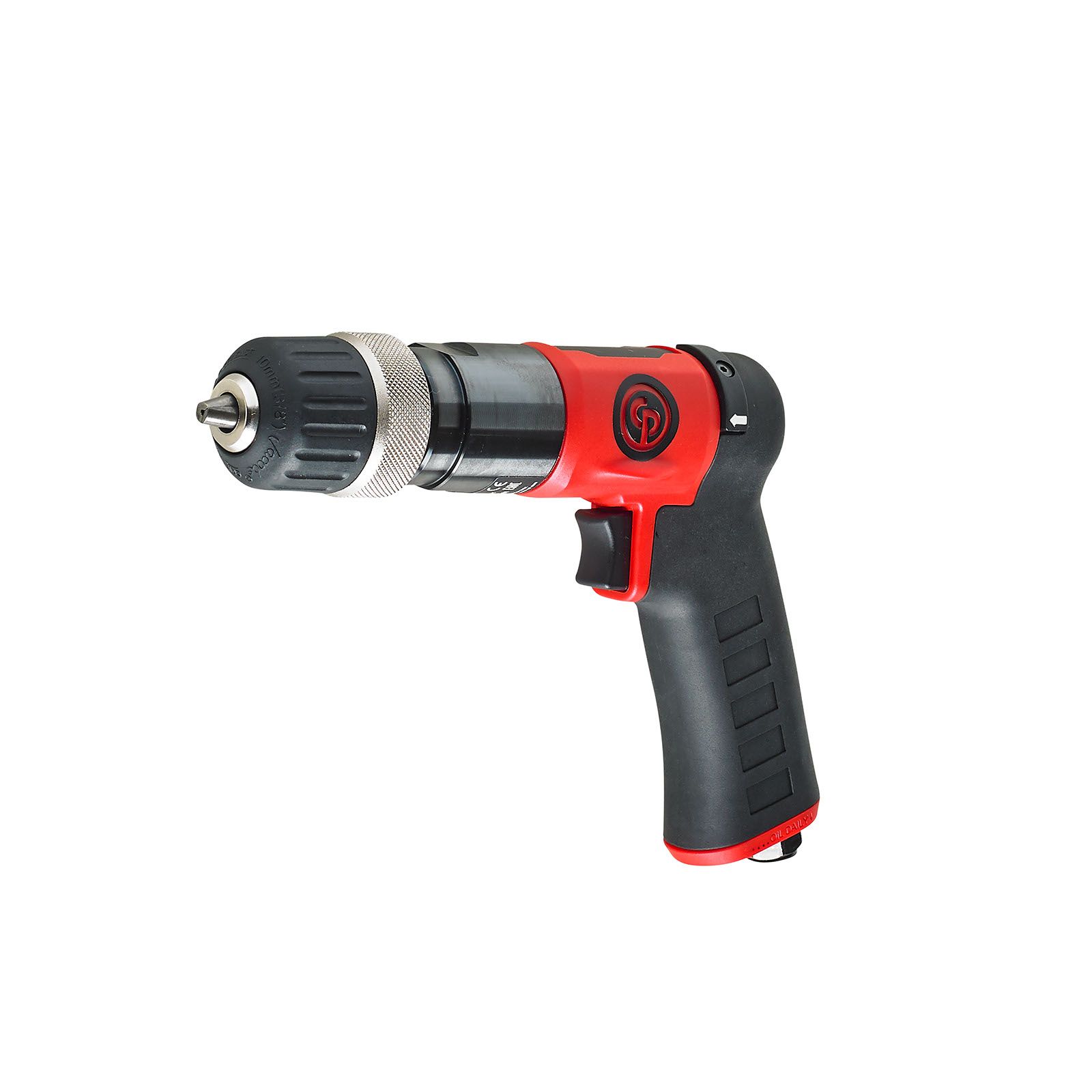

Chicago Pneumatic CP9792C Pistol Grip Drill 3/8" 10mm Keyless Chuck
Features
- Composite housing with thermoplastic rubber handle grip
- Wings on right & left sides to guide the forefinger
- Large teasing trigger and progressive valve allowing more control to start holes
- Low speed gear box
- Flat back part for better pushing action while drilling and tapping
- Reverse lever on the top for easier access
- handle exhaust allowing the air to flow away from the operator
- Supplied with high quality industrial Jacobs® chucks for longer use
- Keyless
- Excellent for drilling, honing, reaming and hole sawing
Specifications
Part Number | 8941097920 | |
Length | 235mm | 9.3" |
Net weight | 1.1kg | 2.4lb |
Height | 150mm | 5.9" |
Side to centre | 51mm | 2" |
Average air consumption | 3.25l/s | 6.9cfm |
Free speed air consumption | 13l/s | 27.5cfm |
Air inlet thread size | 1/4" | |
Min. hose size | 10mm | 3/8" |
Sound pressure | 87.1db(A) | |
Sound power | 98.5db(A) | |
European Sound Standard | ISO 15744 | |
Vibration ISO | ISO-28927-5 | |
Vibration | <2.5m/s² | |
European directives | 2006/42/EC (17//05/2006) | |
European standards | EN ISO 11148-3:2012 | |
Chuck capacity | 10mm | 3/8" |
Free speed | 2100rpm | |
Power | 360W | 1/2hp |
Stall torque | 5.5Nm | 4.1ft.lbs |
(CP9792C)
Barcode # | 15451777470 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002350000m3 |
