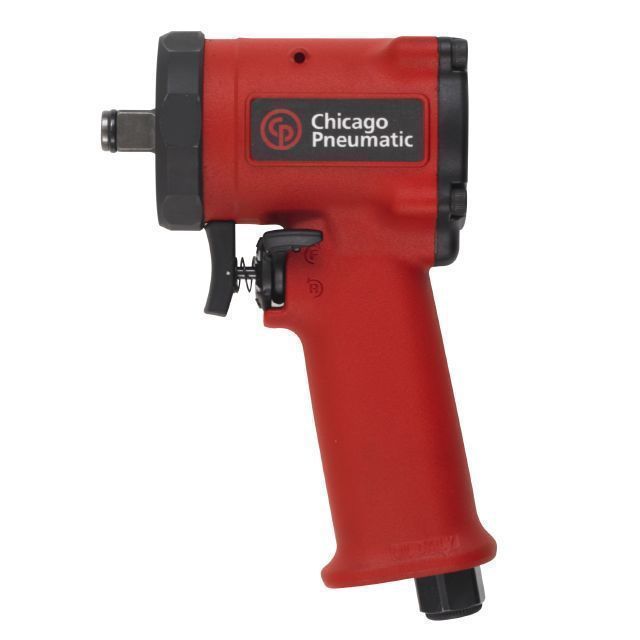

Chicago Pneumatic CP7732 1/2" Impact Wrench Ultra Compact Powerful 610Nm
Model : #CP7732
Share This Item:
Chicago Pneumatic CP7732 1/2" Impact Wrench Ultra Compact Powerful 610Nm
Features:
- Steel front cover & Aluminum body
- One hand operation forward - reverse by either left or
- right handed users
- 3 setting positions
- Only 4.4'' long
- Jumbo hammer
Specifications:
- Handle Type: Pistol
- Square Drive: 1/2"
- Working Torque Range (fwd): 138-420 Nm / 102-310 ft.lbs
- Maximum Torque (reverse): 610 Nm / 450 ft.lbs
- Free Speed: 9000 rpm
- Blows per Minute: 1400
- Net Weight: 1.3 kg / 2.9 lb
- Power/Weight Ratio: 469.2 Nm/kg / 155.2 ft.lb/lb
- Length: 112 mm / 4.4"
- Side to Center: 25 mm / 1"
- Average Air Consumption: 2.4 l/s / 5 cfm
- Actual Air Consumption: 9 l/s / 19.6 cfm
- Air Inlet Thread Size: 0.25 "
- Minimum Hose Size: 10 mm / 3/8"
- Sound Pressure: 95 dB(A)
- Sound Power: 106 dB(A)
- Vibration ± (ISO-28927-2): 12.1 m/s²
- Vibration K (ISO-28927-2): 4.4 m/s²
- Socket Retainer: Friction ring
- Clutch Type: Single Dog Clutch
(CP7732)
Barcode # | 15451715533 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.001120000m3 |
Unit Of Measure | ea |
