CP7763 3/4" Impact Wrench Pistol Grip 1627Nm Friction Ring Retainer
Model : #CP7763
Share This Item:

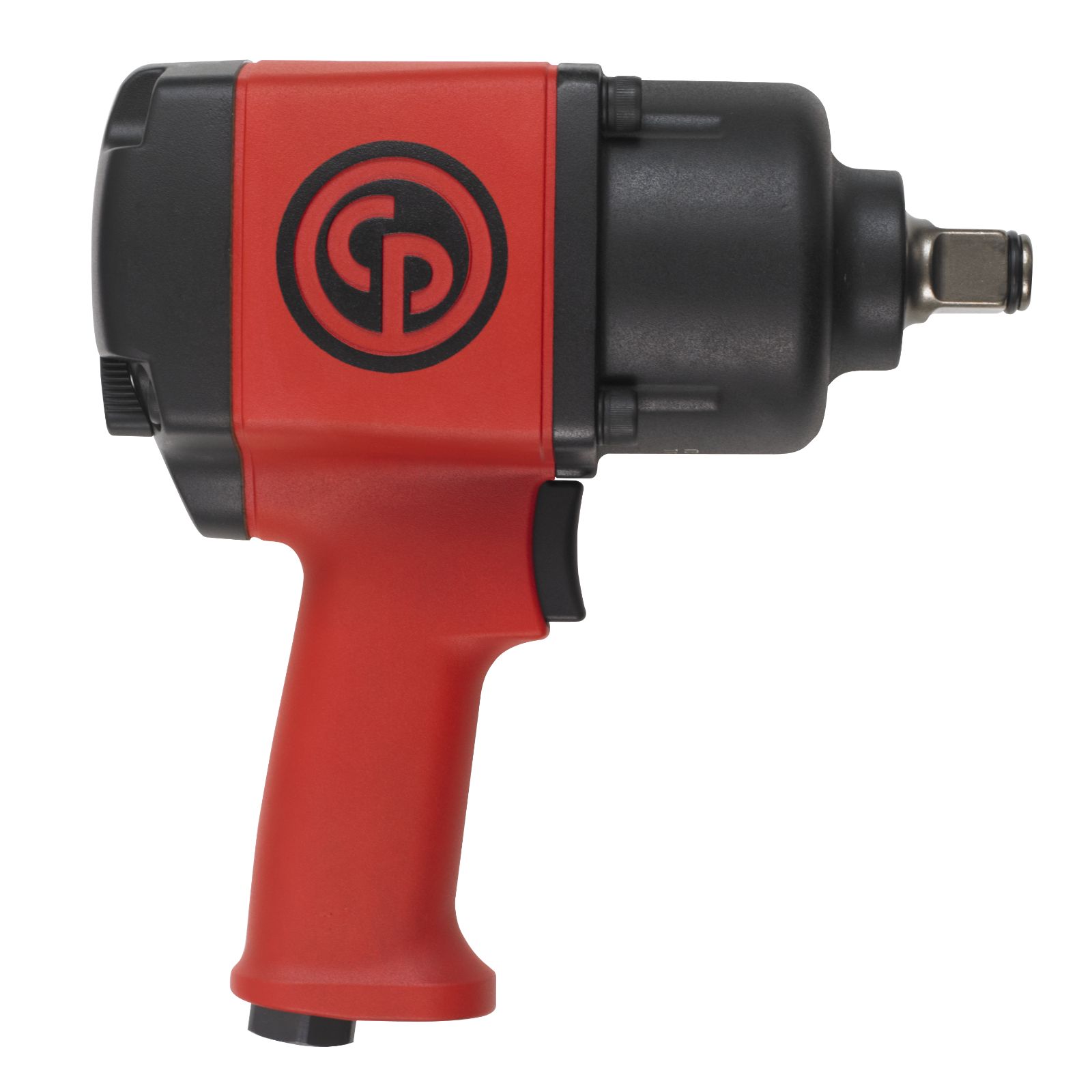

Chicago Pneumatic CP7763 Pistol Grip Impact Wrench
Features
- 3/4" impact wrench with Ring retainer
- Twin hammer clutch
- High power: 1,200 ft.lbs (1,627 Nm)
- Combined power regulator with forward/reverse
Benefits
- Ideal for General Maintenance applications
- Powerful motor and durable clutch
- Operator comfort
Specifications
Part number | 8941077630 | |
Length | 229 mm | 8.8" |
Net weight | 5.25 kg | 11.57 lb |
Side to center | 45 mm | 1.8" |
Average air consumption | 3.5 l/s | 7.5 cfm |
Actual air consumption | 14.2 l/s | 30 cfm |
Air inlet thread size | 3/8 " | |
Min. hose size | 13 mm | 1/2" |
Sound pressure | 96 db(A) | |
Sound Power | 107 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 10.4 m/s² | |
Vibration uncertainty (K) | 4.2 m/s² | |
Handle type | Pistol | |
Square drive | 3/4" | |
Working Torque Range (fwd) | 136 - 1288 Nm | 100 - 950 |
Maximum Torque (reverse) | 1630 Nm | 1200 ft.lbs |
Free speed | 6300 rpm | |
Blows per minute | 900 | |
Power/weight ratio | 310.5 Nm/kg | 103.7 ft.lb/lb |
VST2 | 48 | |
Socket retainer | Friction ring | |
Clutch type | Twin hammer |
(CP7763)
Barcode # | 15451566159 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.002290000m3 |
