CP7782-6 Straight Case Impact Wrench 1" With 6" Extended Anvil 2600Nm
Model : #CP7782-6
Share This Item:

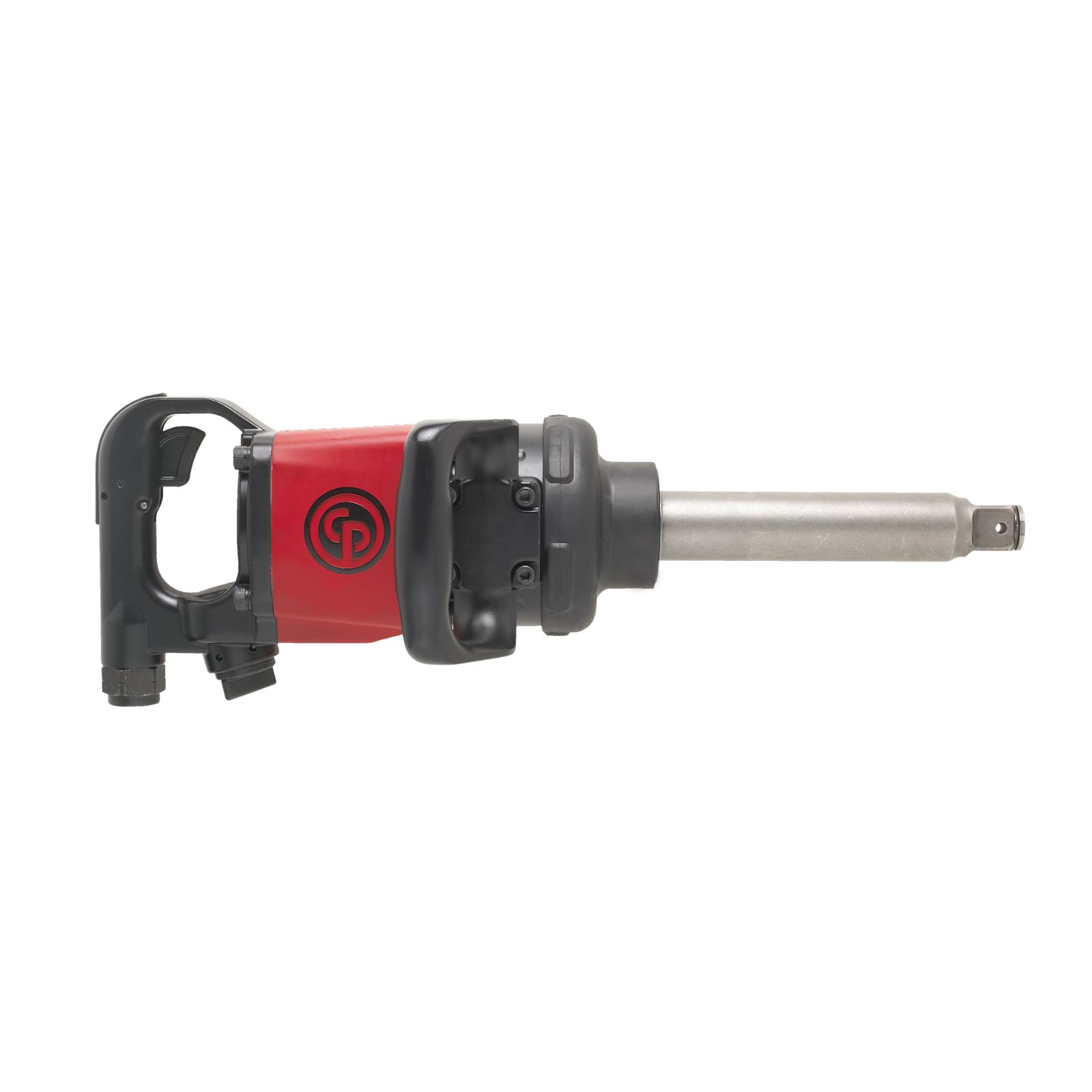

Chicago Pneumatic CP7782-6 Straight Case Impact Wrench
Features
- 1" straight impact wrench with 6" extended anvil
- 1920 ft.lbs - 2600 Nm of maximum torque in reverse
- Pinless closed reinforced rocking dog impact mechanism
- Dual socket retention, hole, and friction ring
- Ergonomic side handle
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
Specifications
Part number | 8941077826 | |
Length | 520 mm | 20.4" |
Net weight | 11.6 kg | 25.55 lb |
Side to centre | 45 mm | 1.8" |
Average air consumption | 4.8l/s | 10 cfm |
Actual air consumption | 19.2 l/s | 40.7 cfm |
Air inlet thread size | 1/2" | |
Min. hose size | 13 mm | 1/2" |
Sound pressure | 100 db(A) | |
Sound Power | 111 db(A) | |
European Sound standard | ISO 15744 | |
Sound uncertainty | 3 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 7.8 m/s² | |
Vibration uncertainty (K) | 1.8 m/s² | |
Square drive | 1" | |
Working Torque Range (fwd) | 500 - 2000 Nm | 370 - 1475 |
Maximum Torque (reverse) | 2600 Nm | 1920 ft.lbs |
Free speed | 5200 rpm | |
Blows per minute | 500 | |
Power/weight ratio | 257.4 Nm/kg | 86.5 ft.lb/lb |
Bolt size | M32 | |
European directives | 2006/42/EC (17/05/2006) | |
European standards | EN ISO 11148-6:2012 |
(CP7782-6)
Barcode # | 15451701338 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.005200000m3 |
