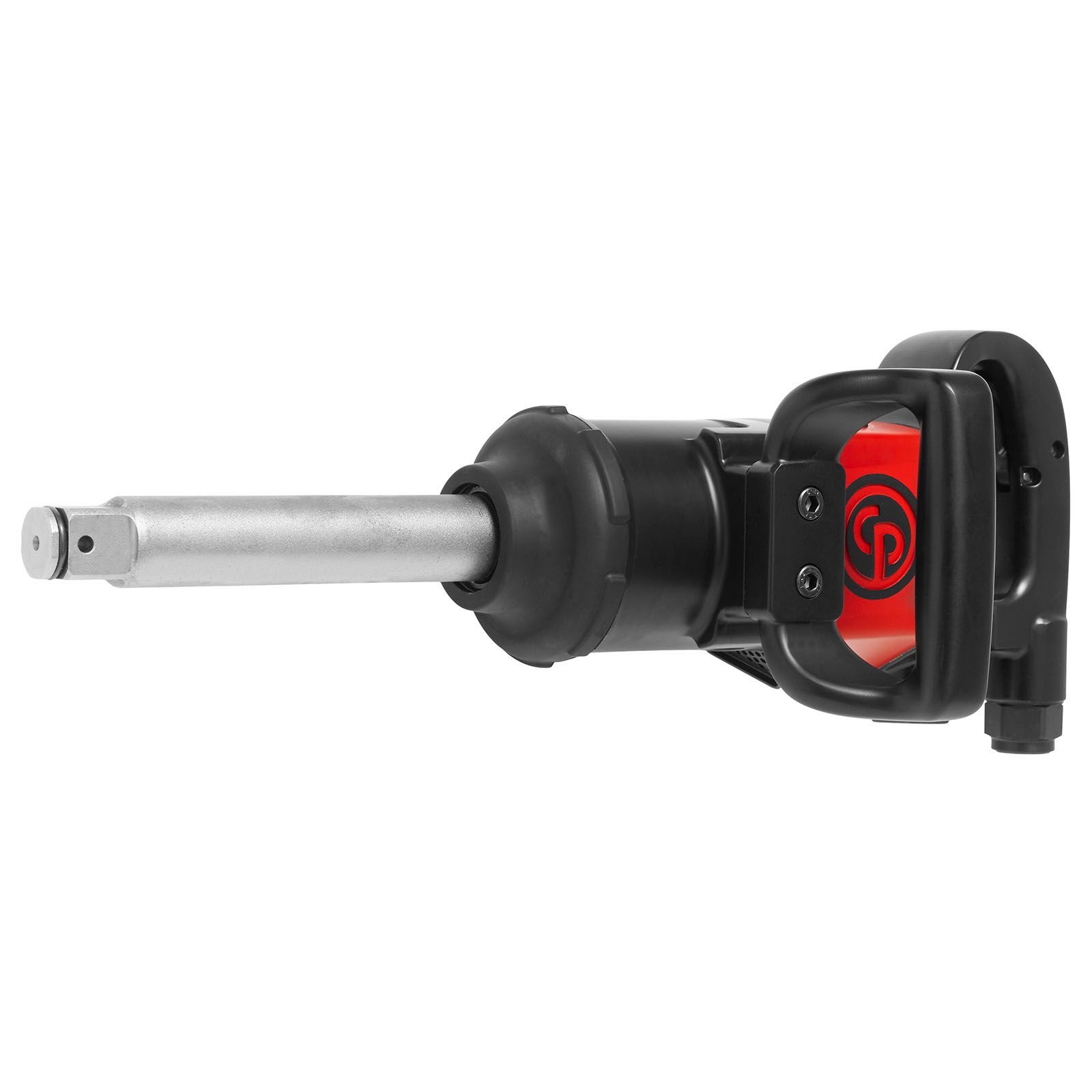

Chicago Pneumatic CP7783-6 Straight Case Impact Wrench


Features

  • 1770 ft.lbs / 2400 Nm max torque in reverse for high productivity
  • 20.9 lbs. / 9.5 kg for reduced operator fatigue
  • Pinless closed reinforced rocking dog mechanism
  • Features an adjustable top or down exhaust
  • Regulator integrated in forward/reverse button with 3 power settings in both directions
  • Top or down exhaust, easy and quick to change
  • Four positions for D-handle placement to provide ultimate operator comfort
  • Forward/Reverse regulator with 3 power settings in both directions
  • Rubber bumper protecting both applications & tool (included)


Benefits

  • Powerful
  • Lightweight
  • SUPER Durability
  • Operator Comfort & Easy to Use
  • User Friendly
  • Convenient
  • Useful
  • Shock Absorbing


Specifications

Part number 8941077836
Length 500 mm 19.6"
Net weight 9.5 kg 20.9 lb
Average air consumption 4.75 l/s 10.1 cfm
Actual air consumption 19 l/s 40.4 cfm
Air inlet thread size 1/2 "
Min. hose size 19 mm 3/4"
Sound Power 113 db(A)
Vibration ISO ISO-28927-2
Vibration 15.1 m/s²
Vibration uncertainty (K) 4.1 m/s²
Handle type D-Handle Inside Trigger
Square drive 1"
Working Torque Range (fwd) 560 - 1700 Nm 413 - 1253
Maximum Torque (reverse) 2400 Nm 1770 ft.lbs
Free speed 6200 rpm
Socket retainer Ring & hole
Clutch type Pin less closed rocking dog
Sound DBA pressure 102 db(A)



(CP7783-6)

Barcode # 15451767440
Brand Chicago Pneumatic
Shipping Cubic 0.005000000m3
