CP7762 3/4" Impact Wrench Pistol Grip 1490Nm Compact & Lightweight
Model : #CP7762
Share This Item:

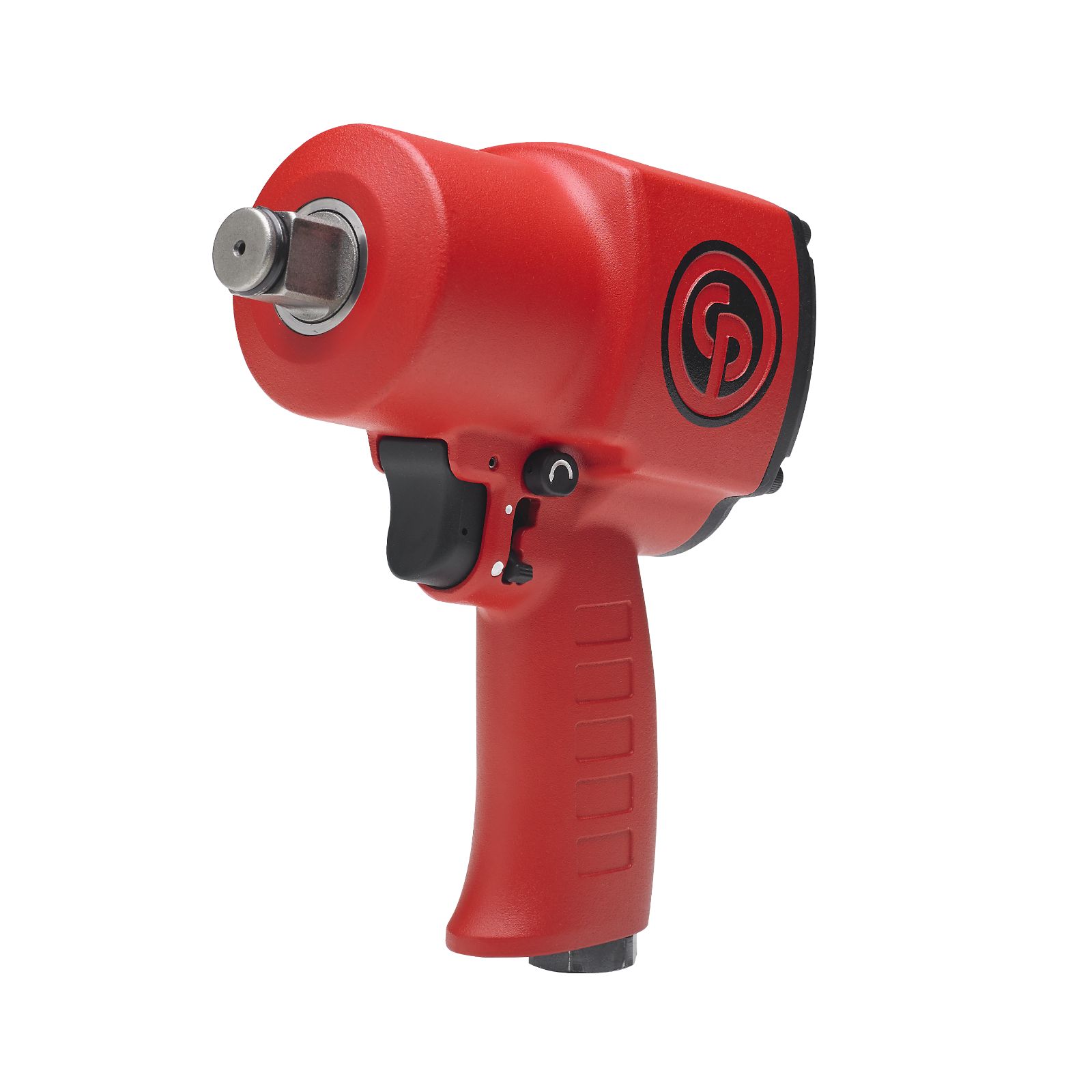

Chicago Pneumatic CP7762 Pistol Grip Impact Wrench
Features
- 6.2 in / 158.7 mm length for restricted working areas
- 6.6 lbs. / 3.0 kg for less operator fatigue
- 1050 ft.lbs / 1420 Nm in reverse for high productivity
- Side2Side forward and reverse system
- Full teasing trigger
- One hand Forward & Reverse speed regulator button
- Steel motor
- Twin Hammer mechanism
- Aluminum housing
- Ergonomic P-handle with full teasing trigger
- Perfect weight distribution
Benefits
- ULTRA Compact
- Lightweight
- Powerful
- Operator Comfort & Easy to handle
- Hight Durability
- Optimum Handle Design
Specifications
Part number | 8941077620 | |
Length | 158 mm | 6.2" |
Net weight | 2.9 kg | 6.38 lb |
Side to center | 42 mm | 1.65" |
Average air consumption | 4.1 l/s | 8.78 cfm |
Actual air consumption | 16.4 l/s | 34.75 cfm |
Free speed air consumption | 26.7 l/s | 57 cfm |
Air inlet thread size | 3/8 " | |
Min. hose size | 13 mm | 1/2" |
Sound pressure | 92.8 db(A) | |
Sound Power | 103.8 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 10.7 m/s² | |
Vibration uncertainty (K) | 2.8 m/s² | |
Handle type | Pistol | |
Square drive | 3/4" | |
Working Torque Range (fwd) | 200 - 900 Nm | 150 - 670 |
Maximum Torque (reverse) | 1420 Nm | 1050 ft.lbs |
Free speed | 4850 rpm | |
Blows per minute | 960 | |
Power/weight ratio | 489.7 Nm/kg 160 ft.lb/lb | |
Socket retainer | Friction ring | |
Clutch type | Twin hammer |
(CP7762)
Barcode # | 15451768911 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.001580000m3 |
