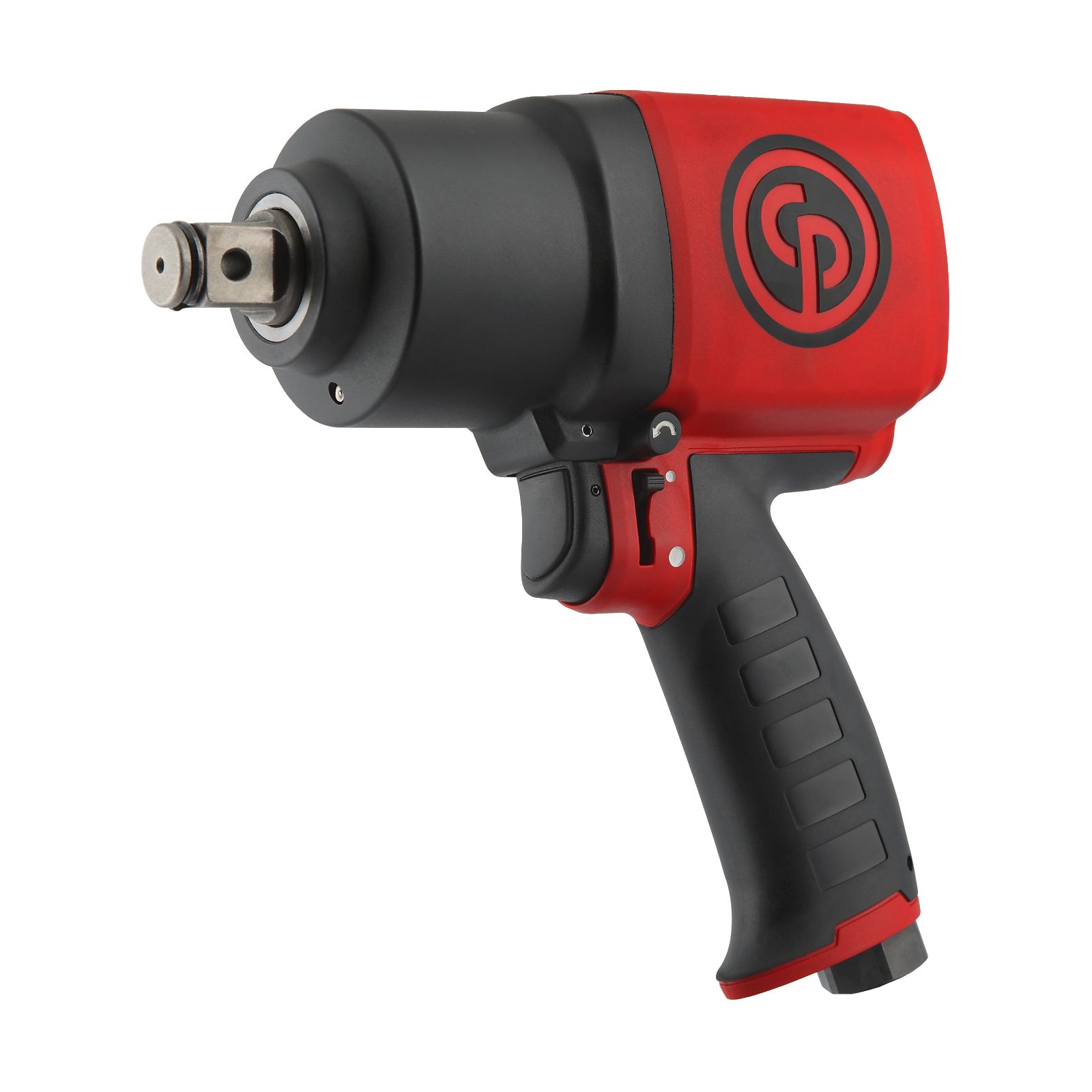

Chicago Pneumatic CP7769 Pistol Grip Impact Wrench


Features

  • All controls within reach
  • Variable speed trigger
  • One-hand power adjustment
  • One-hand reverse system
  • Composite motor housing
  • Twin hammer mechanism
  • 360° swivel air inlet
  • Socket retainer ring combined with hole retainer


Specifications

Part number 8941077691
Length 200 mm 7.9"
Net weight 3.15 kg 6.9 lb
Height 220 mm 8.7"
Width 84 mm 3.3"
Series Alphacode D
Average air consumption 4.8 l/s 10.2 cfm
Actual air consumption 19.3 l/s 40.7 cfm
Actual air consumption 1158 l/mn 40.7 cfm
Air inlet thread size 3/8 "
Min. hose size 13 mm 1/2"
Sound pressure 96.8 db(A)
Sound Power 107.8 db(A)
European Sound standard ISO 15744
Vibration ISO ISO-28927-2
Vibration 12.97 m/s²
Vibration uncertainty (K) 1.5 m/s²
Handle type Pistol
Square drive 3/4"
Working Torque Range (fwd) 407 - 1464 Nm 300 - 1080
Maximum Torque (reverse) 1950 Nm 1440 ft.lbs
Free speed 6500 rpm
Blows per minute 1200
Power/weight ratio 619.05 Nm/kg 208.70 ft.lb/lb
Socket retainer Dual (hole+friction)
Clutch type Twin hammer
European Directives 2006/42/EC (17/05/2006)
European Standards EN ISO 11148-6:2012



(CP7769)

Brand Chicago Pneumatic
Shipping Cubic 0.002000000m3
