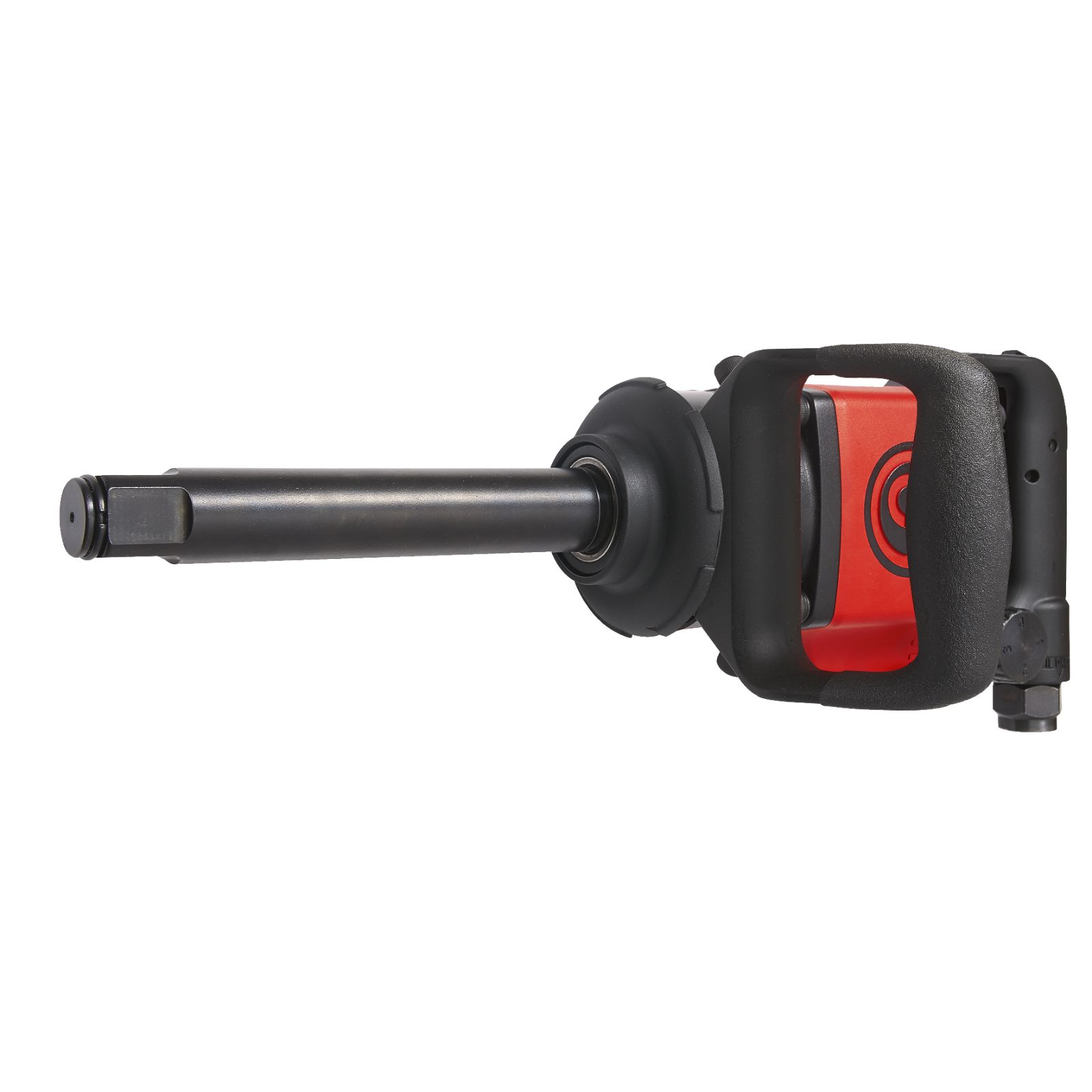

Chicago Pneumatic CP7773D-6 Straight Case Impact Wrench


Features

  • 16.3 lbs. – 7.4 kg
  • 1300 ft.lbs. / 1760 Nm in reverse
  • Twin hammer mechanism
  • Steel motor
  • Intuitive Forward / Reverse lever & power regulator on both sides
  • 4 position power settings on both sides
  • Side handle with soft touch grip
  • Down exhaust
  • Aluminum housing
  • Composite cover on the clutch housing
  • Socket retainer ring


Specifications

Part number 8941077737
Length 445 mm 17.5
Net weight 7.4  kg 16.3 lb
Side to centre 45 mm 1.8"
Average air consumption 19.3  l/s 41 cfm
Actual air consumption 12 l/s 25 cfm
Free speed air sonsumption 26.4 l/s
Air inlet thread size 1/2"
Min. hose size 13 mm 3/8"
Sound pressure 98 db(A)
Sound Power 109 db(A)
Vibration ISO ISO-28927-2
Vibration 12 m/s²
Vibration uncertainty (K) 3.3 m/s²
Handle type D-Handle Inside Trigger
Square drive 1"
Working Torque Range (fwd) 340 - 1450 Nm 250 - 1070
Maximum Torque (reverse) 1760 Nm 1300 ft.lbs
Free speed 6600 rpm
Socket retainer Friction ring
Clutch type Twin Hammer



(CP7773D-6)

Barcode # 15451748463
Brand Chicago Pneumatic
Shipping Cubic 0.004450000m3
