CP7782 Straight Case Impact Wrench 1" 2600Nm Friction Ring With Hole Retainer
Model : #CP7782
Share This Item:

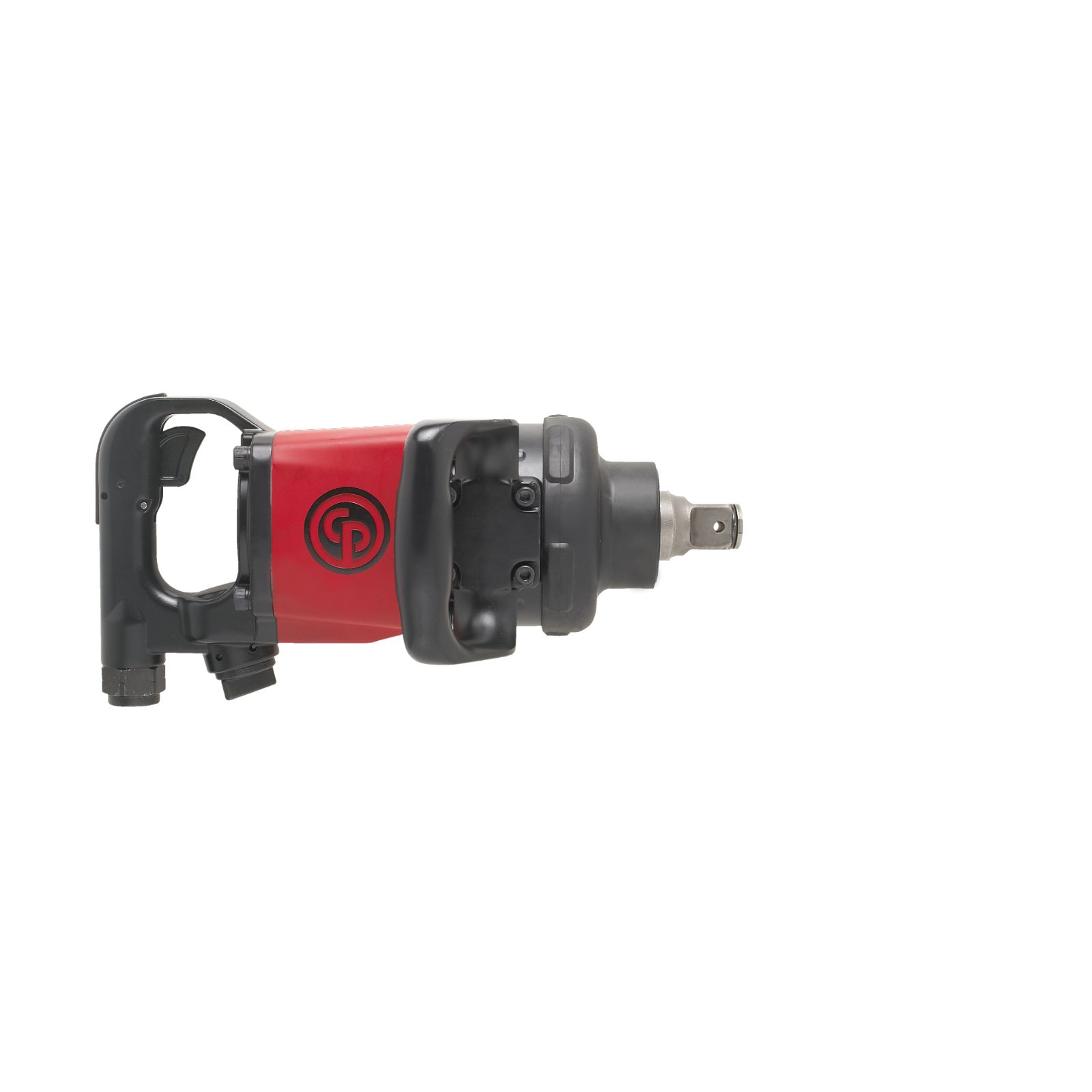

Chicago Pneumatic CP7782 Straight Case Impact Wrench
Features
- 1" D-handle impact wrench with dual retainer (Hole + Ring)
- Pinless closed reinforced rocking dog impact mechanism
- ergonomic side handle
- Integrated protective cover on the clutch housing
- Full teasing trigger
- Regulator with integrated forward/reverse with 3-position power settings in both directions
Specifications
Part number | 8941077820 | |
Length | 370 mm | 14.7" |
Net weight | 10.1 kg | 22.2 lb |
Side to centre | Side to centre | 1.8" |
Average air consumption | 4.8 l/s | 10 cfm |
Actual air consumption | 19.2 l/s | 40.7 cfm |
Air inlet thread size | 1/2" | |
Min. hose size | 13 mm | 1/2" |
Sound pressure | 100 db(A) | |
Sound Power | 111 db(A) | |
European sound standard | ISO 15744 | |
Sound uncertainty | 3 db(A) | |
Vibration ISO | ISO-28927-2 | |
Vibration | 7.8 m/s² | |
Vibration uncertainty (K) | 1.8 m/s² | |
Square drive | 1" | |
Working Torque Range (fwd) | 500 - 2000 Nm | 370 - 1475 |
Maximum Torque (reverse) | 2600 Nm | 1920 ft.lbs |
Free speed | 5200 rpm | |
Blows per minute | 500 | |
Power/weight ratio | 257.4 Nm/kg | 86.5 ft.lb |
Bolt size | M32 | |
European Directives | 2006/42/EC (17/05/2006) | |
European Standards | EN ISO 11148-6:2012 |
(CP7782)
Barcode # | 15451701321 |
Brand | Chicago Pneumatic |
Shipping Cubic | 0.003700000m3 |
