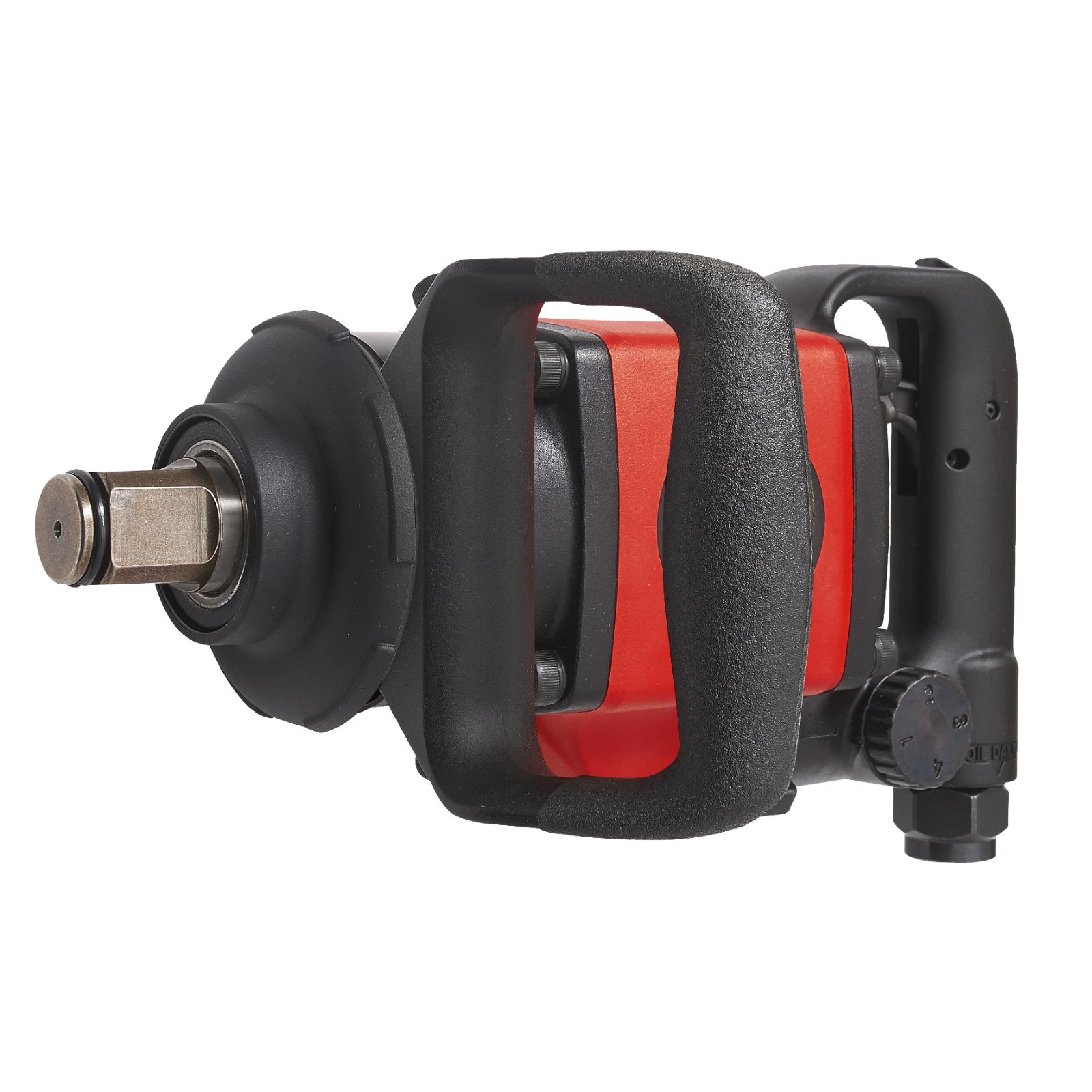

Chicago Pneumatic CP7773D Straight Case Impact Wrench


Features

  • 14.5 lbs. – 6.6 kg
  • 1300 ft.lbs. / 1760 Nm in reverse
  • Twin hammer mechanism
  • Steel motor
  • Intuitive Forward / Reverse lever & power regulator on both sides
  • 4 position power settings on both sides
  • Side handle with soft-touch grip
  • Down exhaust
  • Aluminum housing
  • Composite cover on the clutch housing
  • Socket retainer ring


Specifications

Part Number 8941077731
Length 290 mm 11.4"
Net weight 6.6 kg 14.5 lb.
Side to centre 45 mm 1.8"
Actual air consumption 19.3 l/s 41 cfm
Free speed air consumption 26.8 l/s
Air inlet thread size 1/2"
Minimum hose size 13 mm 3/8"
Sound pressure 98 db(A)
Sound power 109 db(A)
Vibration ISO ISO-28927-2
Vibration 12 m/s²
Vibration uncertainty 3.3 m/s²
Handle type D-handle inside trigger
Square drive 1"
Working torque 340 - 1450 Nm 250 - 1070
Maximum torque 1760 Nm 1300 ft. lbs
Free speed 6600 rpm
Socket retainer Friction ring
Clutch type Twin hammer



(CP7773D)

Barcode # 15451748456
Brand Chicago Pneumatic
Shipping Cubic 0.002900000m3
